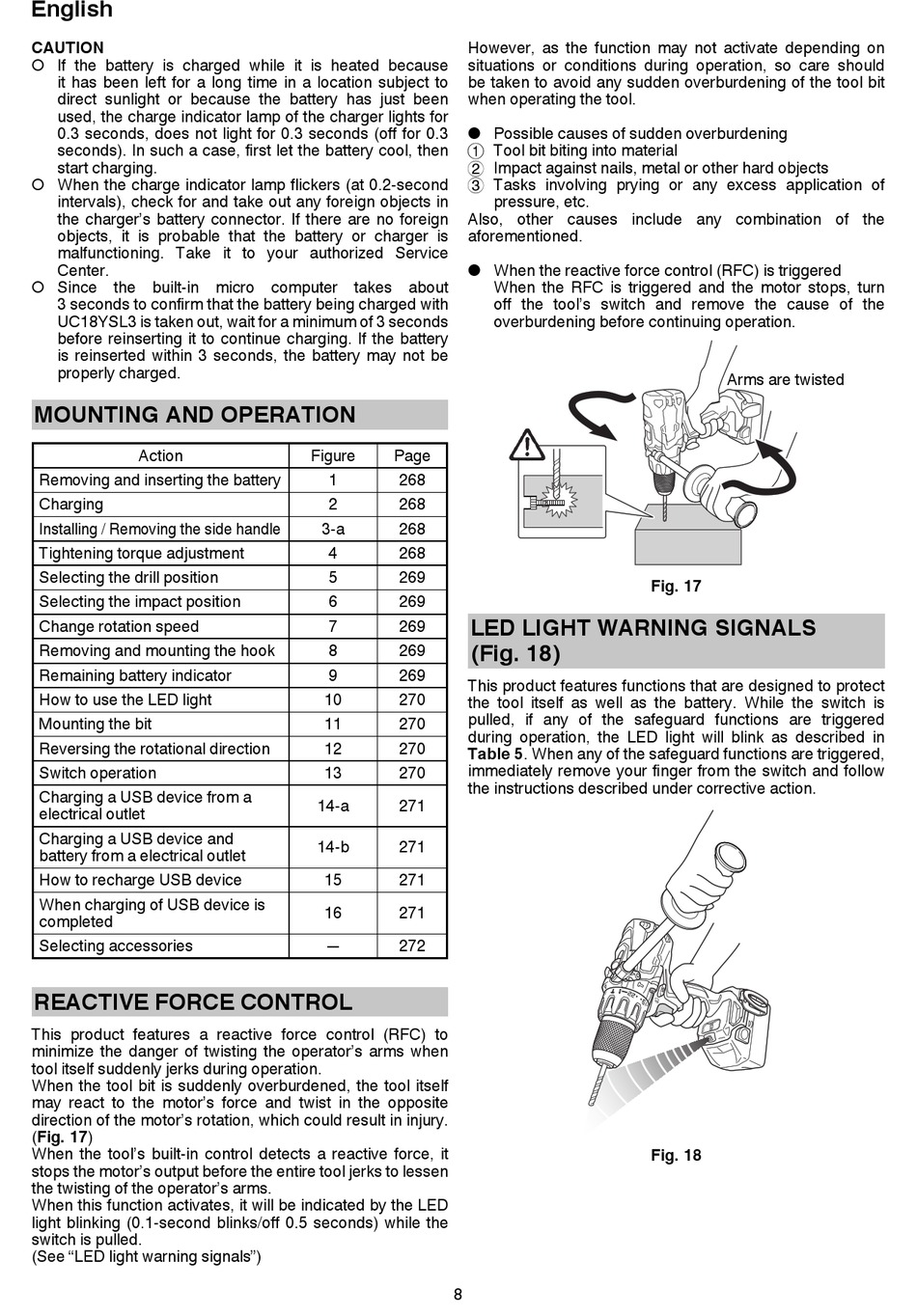

English
CAUTION
○ If the battery is charged while it is heated because
it has been left for a long time in a location subject to
direct sunlight or because the battery has just been
used, the charge indicator lamp of the charger lights for
0.3 seconds, does not light for 0.3 seconds (off for 0.3
seconds). In such a case, fi rst let the battery cool, then
start charging.
○ When the charge indicator lamp fl ickers (at 0.2-second
intervals), check for and take out any foreign objects in
the charger's battery connector. If there are no foreign
objects, it is probable that the battery or charger is
malfunctioning. Take it to your authorized Service
Center.
○ Since the built-in micro computer takes about
3 seconds to confi rm that the battery being charged with
UC18YSL3 is taken out, wait for a minimum of 3 seconds
before reinserting it to continue charging. If the battery
is reinserted within 3 seconds, the battery may not be
properly charged.
MOUNTING AND OPERATION
Action
Removing and inserting the battery
Charging
Installing / Removing the side handle
Tightening torque adjustment
Selecting the drill position
Selecting the impact position
Change rotation speed
Removing and mounting the hook
Remaining battery indicator
How to use the LED light
Mounting the bit
Reversing the rotational direction
Switch operation
Charging a USB device from a
electrical outlet
Charging a USB device and
battery from a electrical outlet
How to recharge USB device
When charging of USB device is
completed
Selecting accessories
REACTIVE FORCE CONTROL
This product features a reactive force control (RFC) to
minimize the danger of twisting the operator's arms when
tool itself suddenly jerks during operation.
When the tool bit is suddenly overburdened, the tool itself
may react to the motor's force and twist in the opposite
direction of the motor's rotation, which could result in injury.
(Fig. 17)
When the tool's built-in control detects a reactive force, it
stops the motor's output before the entire tool jerks to lessen
the twisting of the operator's arms.
When this function activates, it will be indicated by the LED
light blinking (0.1-second blinks/off 0.5 seconds) while the
switch is pulled.
(See "LED light warning signals")
However, as the function may not activate depending on
situations or conditions during operation, so care should
be taken to avoid any sudden overburdening of the tool bit
when operating the tool.
● Possible causes of sudden overburdening
1 Tool bit biting into material
2 Impact against nails, metal or other hard objects
3 Tasks involving prying or any excess application of
Also, other causes include any combination of the
aforementioned.
● When the reactive force control (RFC) is triggered
Figure Page
1 268
2 268
3-a 268
4 268
5 269
6 269
LED LIGHT WARNING SIGNALS
7 269
(Fig. 18)
8 269
9 269
This product features functions that are designed to protect
10 270
the tool itself as well as the battery. While the switch is
pulled, if any of the safeguard functions are triggered
11 270
during operation, the LED light will blink as described in
12 270
Table 5. When any of the safeguard functions are triggered,
immediately remove your fi nger from the switch and follow
13 270
the instructions described under corrective action.
14-a 271
14-b 271
15 271
16 271
― 272
8
pressure, etc.
When the RFC is triggered and the motor stops, turn
off the tool's switch and remove the cause of the
overburdening before continuing operation.
Fig. 17
Fig. 18
Arms are twisted
