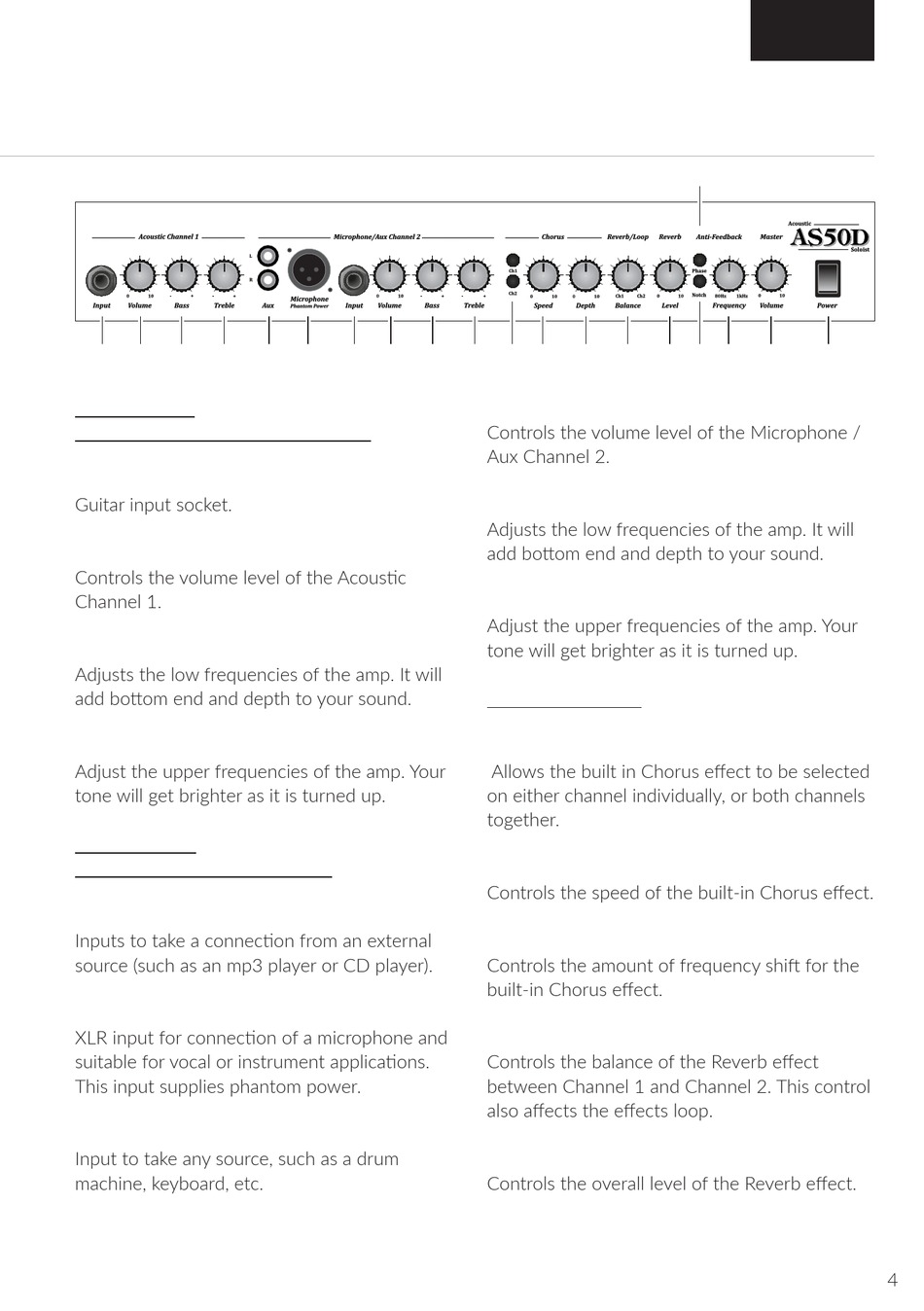

FRONT PANEL FUNCTIONS
1 2 3 4
CHANNEL 1 -
ACOUSTIC INSTRUMENT CHANNEL
1. INPUT JACK
Guitar input socket.
2. VOLUME CONTROL
Controls the volume level of the Acoustic
Channel 1.
3. BASS CONTROL
Adjusts the low frequencies of the amp. It will
add bottom end and depth to your sound.
4. TREBLE CONTROL
Adjust the upper frequencies of the amp. Your
tone will get brighter as it is turned up.
CHANNEL 2 -
MICROPHONE / AUX CHANNEL
5. PHONO (RCA) INPUTS
Inputs to take a connection from an external
source (such as an mp3 player or CD player).
6. MICROPHONE INPUT
XLR input for connection of a microphone and
suitable for vocal or instrument applications.
This input supplies phantom power.
7. JACK INPUT
Input to take any source, such as a drum
machine, keyboard, etc.
5 6 7 8 9 10 11 12 13 14
8. VOLUME CONTROL
Controls the volume level of the Microphone /
Aux Channel 2.
9. BASS CONTROL
Adjusts the low frequencies of the amp. It will
add bottom end and depth to your sound.
10. TREBLE CONTROL
Adjust the upper frequencies of the amp. Your
tone will get brighter as it is turned up.
MASTER SECTION
11. CHORUS ASSIGN SWITCHES
Allows the built in Chorus effect to be selected
on either channel individually, or both channels
together.
12. CHORUS SPEED CONTROL
Controls the speed of the built-in Chorus effect.
13. CHORUS DEPTH CONTROL
Controls the amount of frequency shift for the
built-in Chorus effect.
14. REVERB BALANCE CONTROL
Controls the balance of the Reverb effect
between Channel 1 and Channel 2. This control
also affects the effects loop.
15. REVERB LEVEL CONTROL
Controls the overall level of the Reverb effect.
