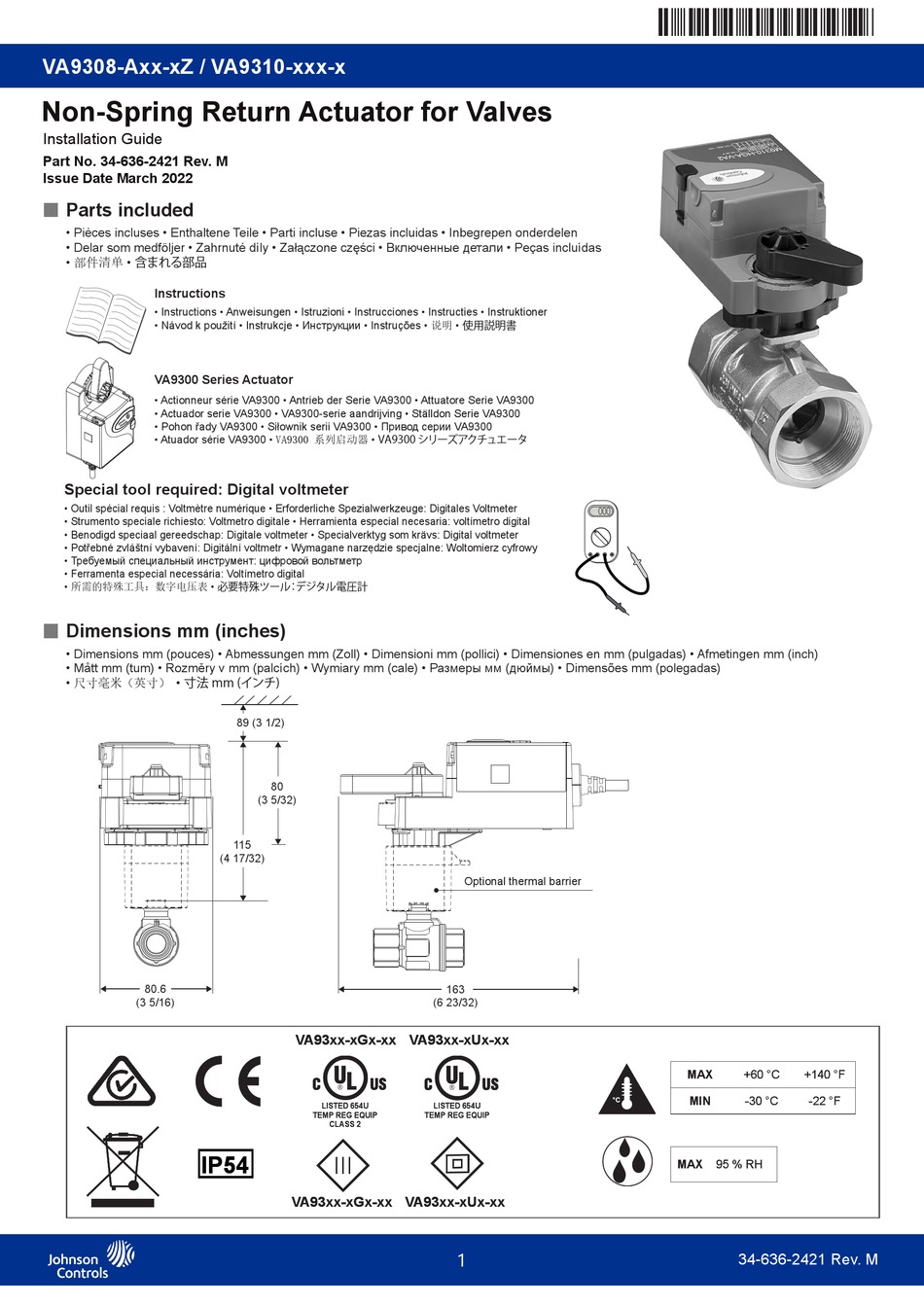

VA9308-Axx-xZ / VA9310-xxx-x
Non-Spring Return Actuator for Valves
Installation Guide
Part No. 34-636-2421 Rev. M
Issue Date March 2022
Parts included
• Pièces incluses • Enthaltene Teile • Parti incluse • Piezas incluidas • Inbegrepen onderdelen
• Delar som medföljer • Zahrnuté díly • Załączone części • Включенные детали • Peças incluídas
• 部件清单 • 含まれる部品
Instructions
• Instructions • Anweisungen • Istruzioni • Instrucciones • Instructies • Instruktioner
• Návod k použití • Instrukcje • Инструкции • Instruções • 说明 • 使用説明書

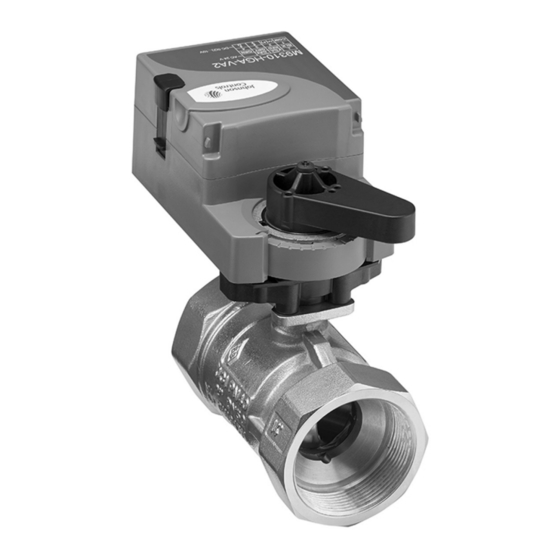

VA9300 Series Actuator
• Actionneur série VA9300 • Antrieb der Serie VA9300 • Attuatore Serie VA9300
• Actuador serie VA9300 • VA9300-serie aandrijving • Ställdon Serie VA9300
• Pohon řady VA9300 • Siłownik serii VA9300 • Привод серии VA9300
• Atuador série VA9300 • VA9300 系列启动器 • VA9300 シリーズアクチュエータ
Special tool required: Digital voltmeter
• Outil spécial requis : Voltmètre numérique • Erforderliche Spezialwerkzeuge: Digitales Voltmeter
• Strumento speciale richiesto: Voltmetro digitale • Herramienta especial necesaria: voltímetro digital
• Benodigd speciaal gereedschap: Digitale voltmeter • Specialverktyg som krävs: Digital voltmeter
• Potřebné zvláštní vybavení: Digitální voltmetr • Wymagane narzędzie specjalne: Woltomierz cyfrowy
• Требуемый специальный инструмент: цифровой вольтметр
• Ferramenta especial necessária: Voltímetro digital
• 所需的特殊工具：数字电压表 • 必要特殊ツール ： デジタル電圧計
Dimensions mm (inches)
• Dimensions mm (pouces) • Abmessungen mm (Zoll) • Dimensioni mm (pollici) • Dimensiones en mm (pulgadas) • Afmetingen mm (inch)
• Mått mm (tum) • Rozměry v mm (palcích) • Wymiary mm (cale) • Размеры мм (дюймы) • Dimensões mm (polegadas)
• 尺寸毫米（英寸） • 寸法 mm (インチ)
80.6
(3 5/16)
IP54
IP54
89 (3 1/2)
80
(3 5/32)
115
(4 17/32)
VA93xx-xGx-xx
VA93xx-xGx-xx
LISTED 654U
LISTED 654U
TEMP REG EQUIP
TEMP REG EQUIP
CLASS 2
CLASS 2
VA93xx-xGx-xx
VA93xx-xGx-xx
Optional thermal barrier
163
(6 23/32)
VA93xx-xUx-xx
VA93xx-xUx-xx
LISTED 654U
LISTED 654U
TEMP REG EQUIP
TEMP REG EQUIP
VA93xx-xUx-xx
VA93xx-xUx-xx
1
346362421M
000
MAX
MAX
+60 °C
+60 °C
MIN
MIN
-30 °C
-30 °C
MAX
MAX
95 % RH
95 % RH
34-636-2421 Rev. M
+140 °F
+140 °F
-22 °F
-22 °F
