M9320-HGA-4, M9320-AUA-4, M9335-HGA-4, M9335-AUA-4
Non-Spring Return Actuator for dampers
Installation Guide

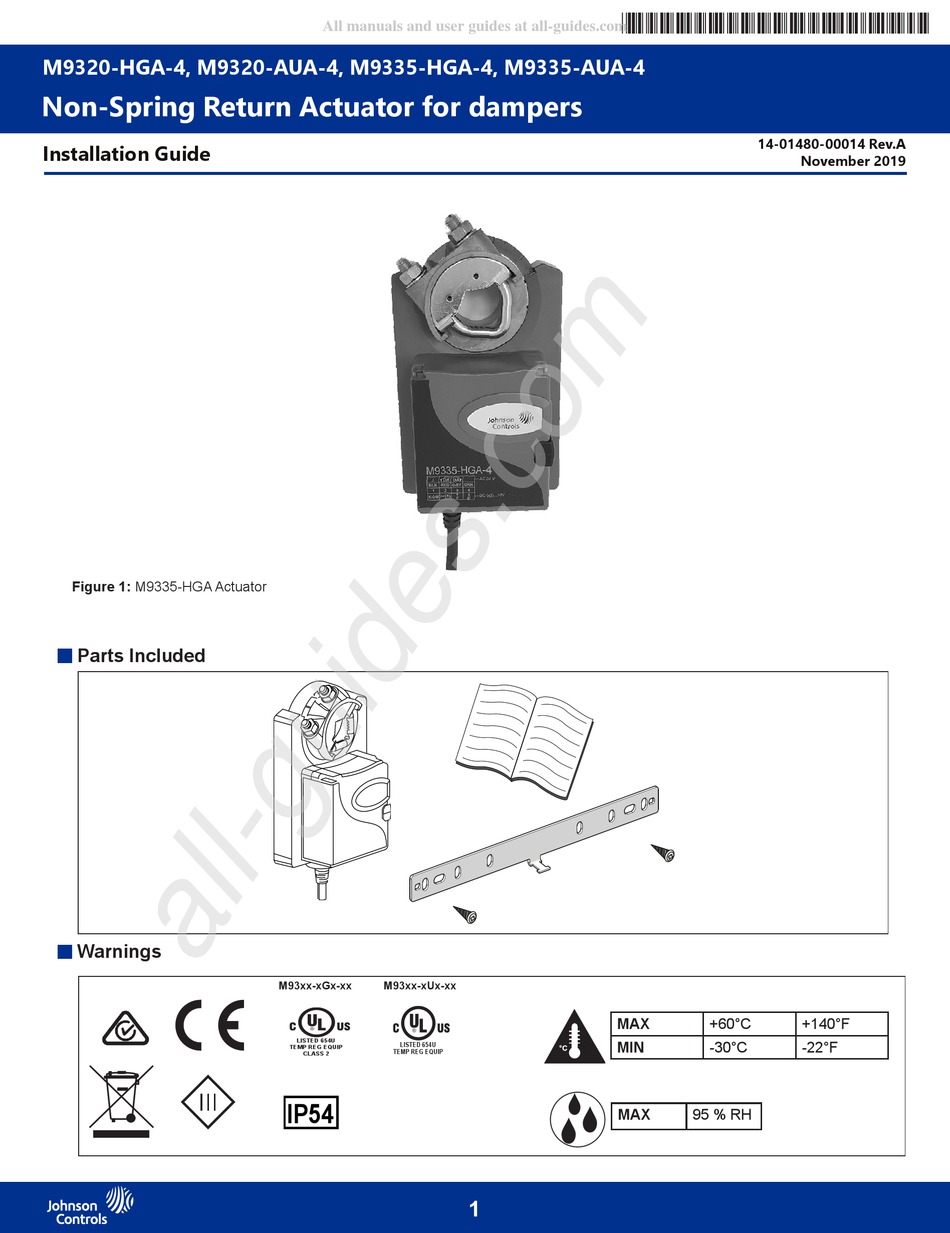

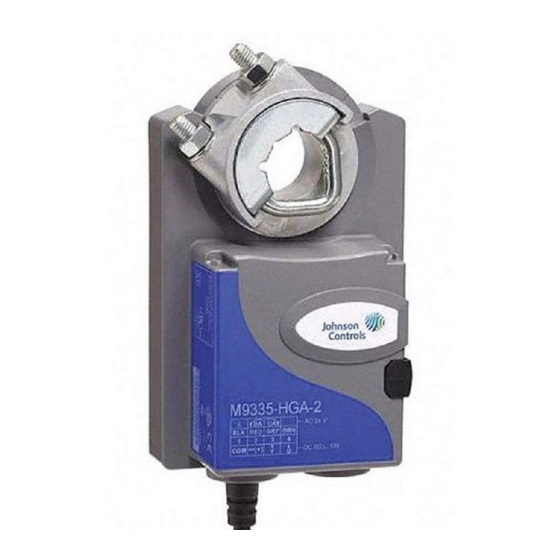

Figure 1: M9335-HGA Actuator
Parts Included
Warnings
All manuals and user guides at all-guides.com
M93xx-xGx-xx
M93xx-xUx-xx
LISTED 654U
LISTED 654U
TEMP REG EQUIP
TEMP REG EQUIP
CLASS 2
IP54
*140148000014Rev.A*
MAX
MIN
MAX
1
14-01480-00014 Rev.A
November 2019
+60°C
+140°F
-30°C
-22°F
95 % RH
