Assemble The Control System; Assemble And Connect The Control System Housing - Villeroy & Boch Easy Control Montage-/Serviceanleitung

Easy Control
5.

Assemble the control system

5.1.

Assemble and connect the control system housing

Open the control system housing

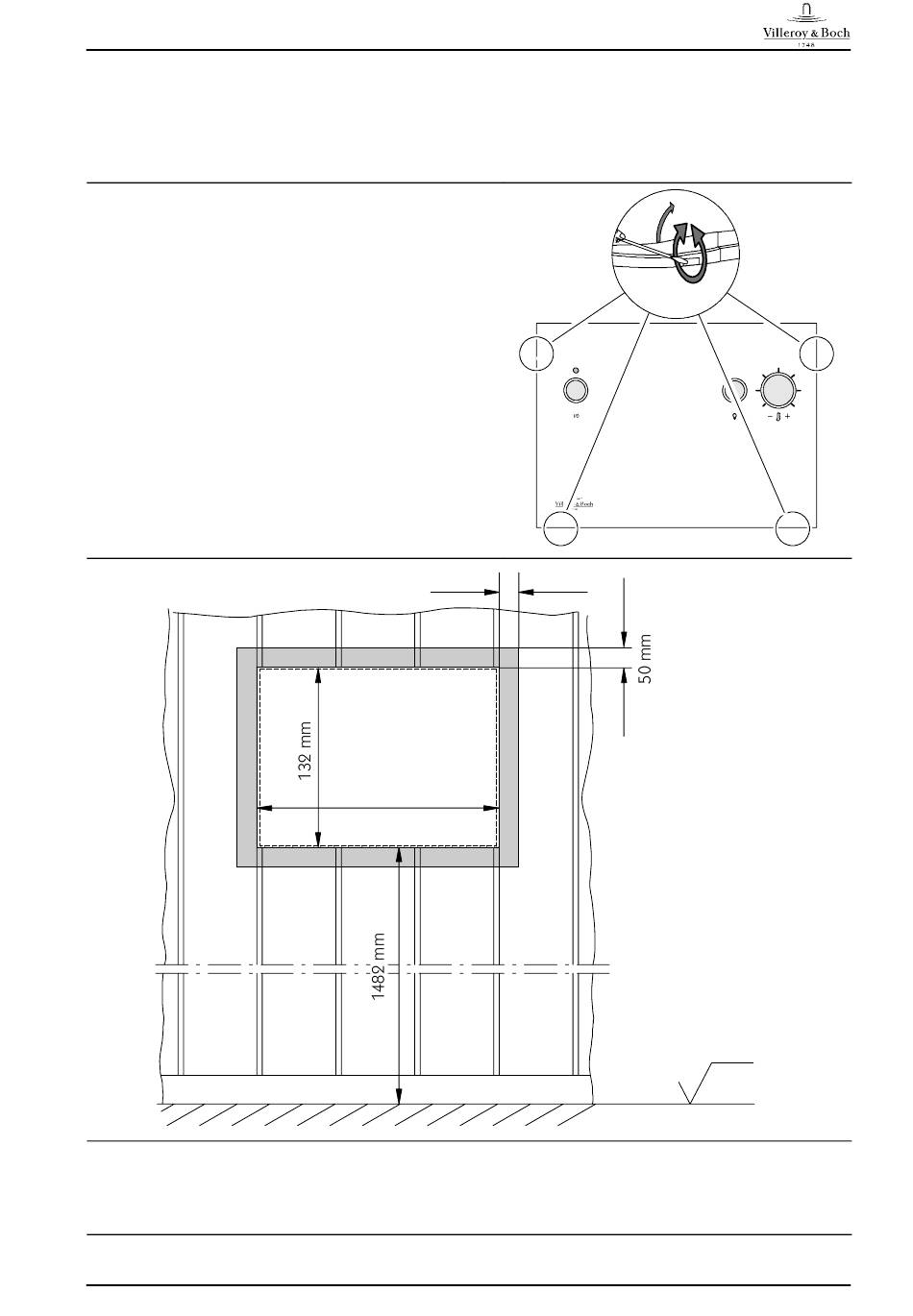

1. Carefully insert a screwdriver at the four points
shown, and use it to push in and turn each lug in
sequence.
2. Once all four catches have been released, the
front section can be removed.
When fitting the control-system housing, observe an all-round clearance of 50 mm with respect to
other devices or walls.
Thread electrical leads in from the back and through the wall element. Follow the order indicated in
the wiring diagram.
50701116/10.05
50 mm
190 mm
OK FFB = top-edge finisher
OK FFB
