Removing the Backpack
If there is ever an emergency and you need to rapidly
remove the backpack, disconnect the quick-release
buckles as follows:

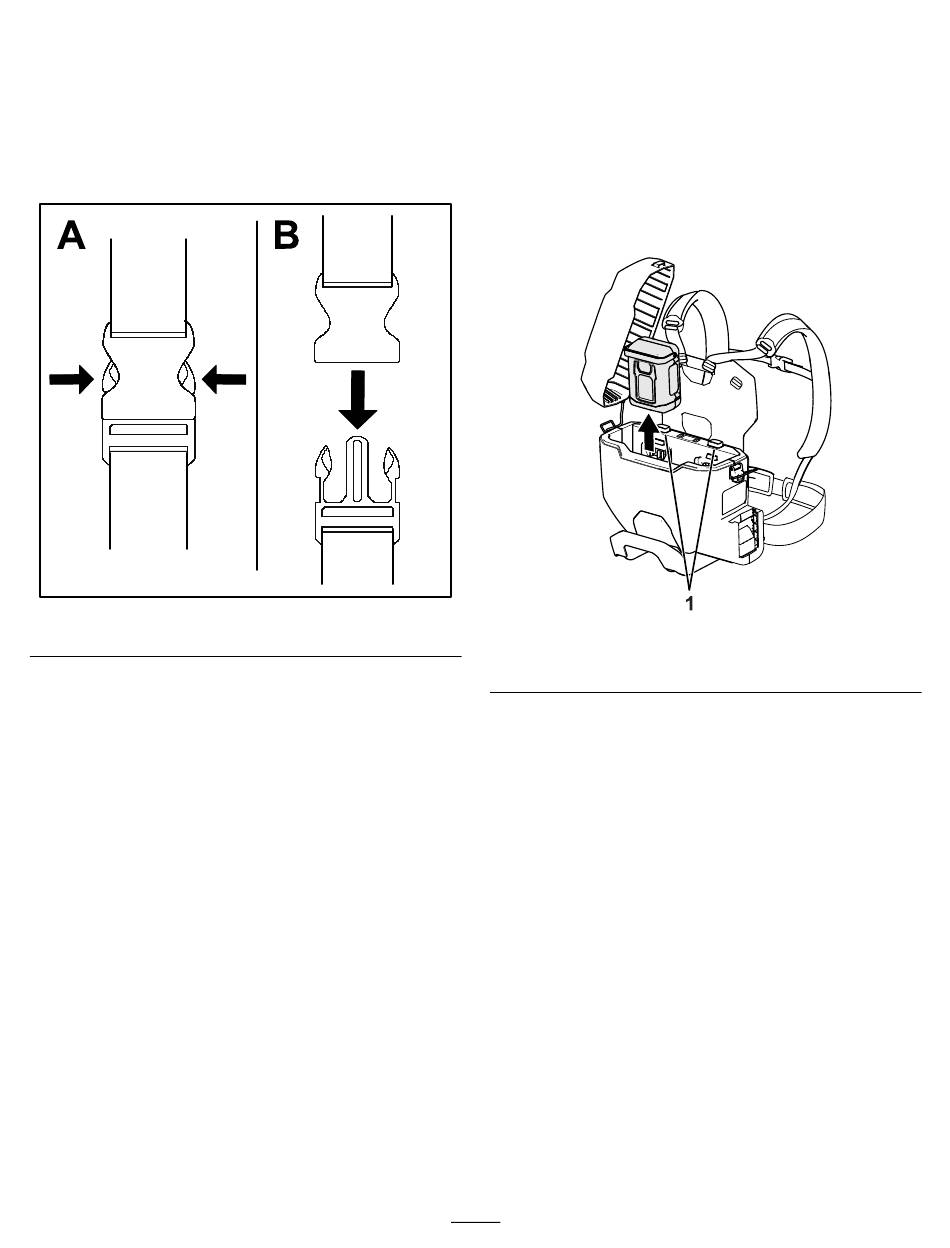

1. Press in on the sides of the buckles (A of
13).
2. Allow the buckles to disconnect (B of
Figure 13
3. Remove the shoulder straps and set the
backpack on the ground.
Whenever you are not using the attached tool or are
transporting the backpack to or from the work area,
remove the battery tether from the tool or remove
battery pack(s) from the backpack.
Removing the Batteries
from the Backpack
1. Set the backpack down on a level surface.
2. Pull up on the latch tabs to open the latches
Figure
securing the battery cover and set the cover
aside.
Figure 13).
3. Press down on the battery latch button and lift
the battery (or batteries) up out of the backpack
(Figure
g340477
1. Battery latch buttons
11
14).
Figure 14
g379472
