Alpha 800 Instruction Manual

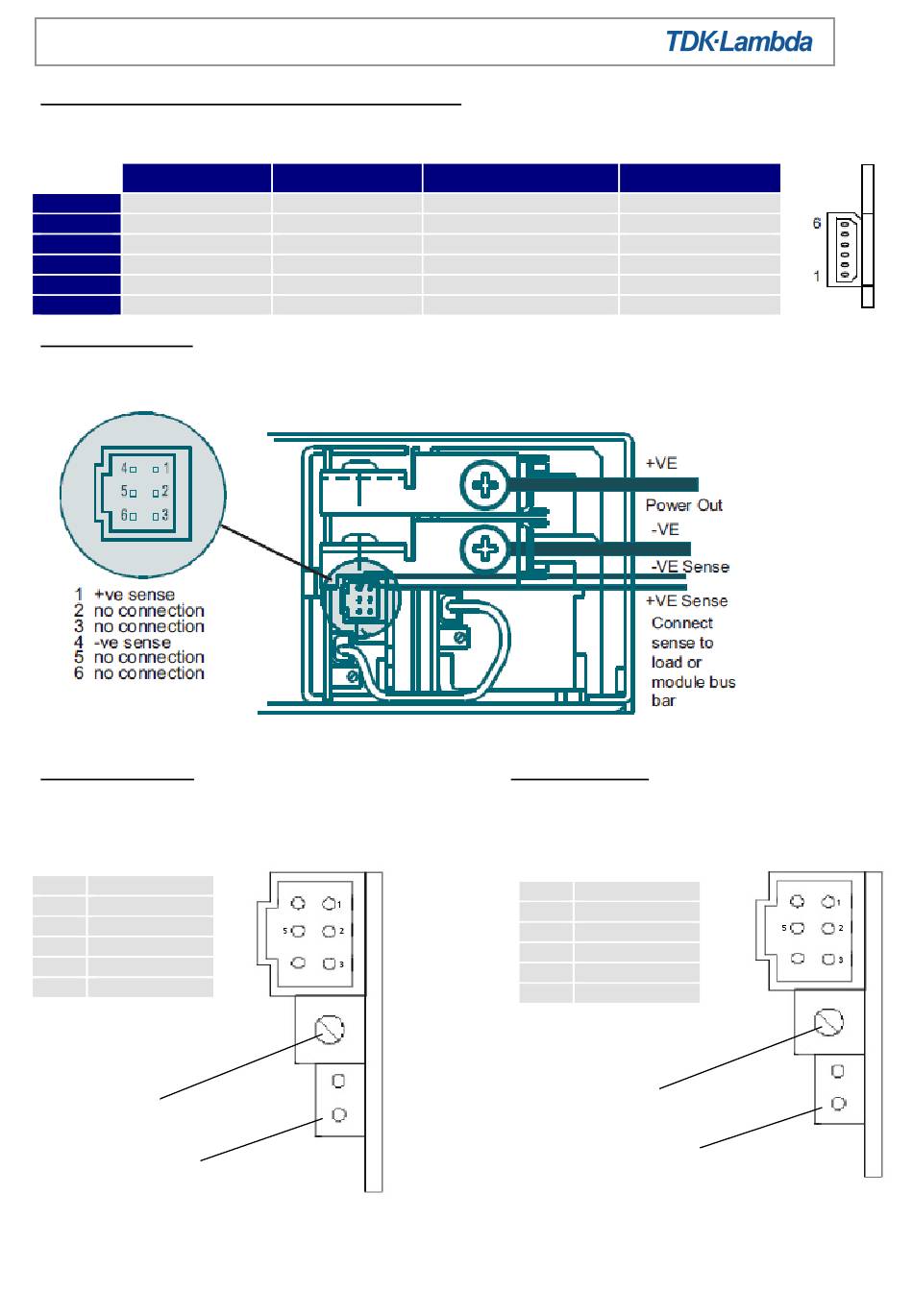

Option: Mains Fail Options (MF, MFL, MFE, MFU, MFV)
Connector: Six way Molex, 50-37-5063. Crimp terminals: 08-70-1040.
MF/MFL
Pin 1 Inhibit Low
Pin 2 +5V Aux
Pin 3 Power Fail
Pin 4 0V Aux
Pin 5 Inhibit High
Pin 6 NC
Option: PP- Parallel
Connector: Six way Molex, 90142-0006. Crimp terminals: 90119-2109.
Option: PA- Parallel
Connector:
Six way Molex, 90142-0006.
Crimp terminals: 90119-2109.
1 +ve sense
2 Module Good
3 Star Point
4 -ve sense
5 -ve power
6 Star Point
Module good
adjustment
pot
Module good link (J3)
MFE
Enable Low
+5V Aux
Power Fail Power Fail Emitter
0V Aux
Enable High
NC Power Fail Collector
4
6
Page 27 of 29
MFU
Inhibit Low
+5V Aux
0V Aux
Inhibit High
Option: IN- Inhibit
Connector:
Six way Molex, 90142-0006.
Crimp terminals: 90119-2109.
1 Not connected
2 Module Good
3 Inhibit input
4 Not connected
5 -ve O/P
6 -ve O/P
Module good
adjustment
Module good link (J3)
MFV
Inhibit Low
+5V Aux
AC Fail
0V Aux
Inhibit High
SYS Reset
4
6
17026 issue 23, October 2021
