DESCRIPTION OF THE DEVICE

Features

Powerful double LED flower effect
•
Absolute eyecatcher
•
Bright R, G, B, A & W LEDs are arranged behind the left and right lenses; white SMD LEDs are centered
on the device front
•
Operable in stand-alone mode or DMX interface
•
DMX512 control possible via any commercial DMX controller (occupies max.6 channels)
•
2 or 6 DMX channels selectable for numerous applications
•
Sound-control via built-in microphone
•
Microphone sensitivity adjustable via rotary control
•
The colorful flower-beams change their direction of movement at every bass-beat in sound controlled
mode
•
Comfortable addressing and setting via control panel with LED display and four operating buttons
•
Functions: Auto mode, sound control, internal programs, strobe settings via DMX, Master/Slave
•
Equipped with 128 x 5 mm RGBAW LEDs as well as 36 x SMD LEDs in white
•
Locking possibility at the mounting bracket
•
IEC Power cord with safety-plug included in delivery
•
Switch-mode power supply
•
Automatic power supply adaption between 100 and 240 Volts without power selector

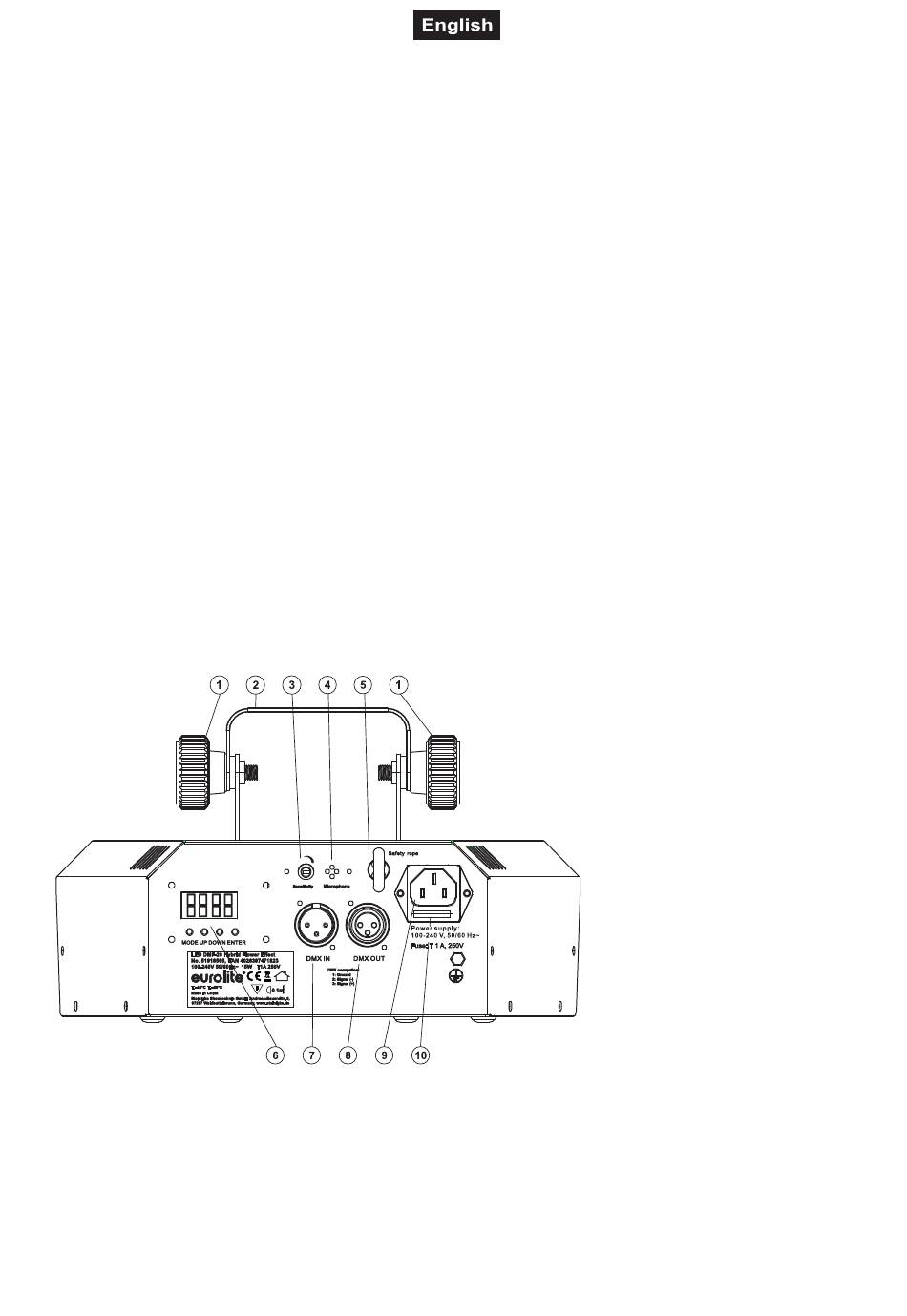

Overview

17/24
1. Fixation screws
2. Mounting bracket
3. Rotary-control
4. Microphone
5. Attachment eyelet
6. LED display and operating
buttons
7. DMX In plug
8. DMX Out socket
9. Power supply
10. Fuse holder
