MEDIUM Compact 80 Montageanleitung Seite 15

Installation Manual
GB

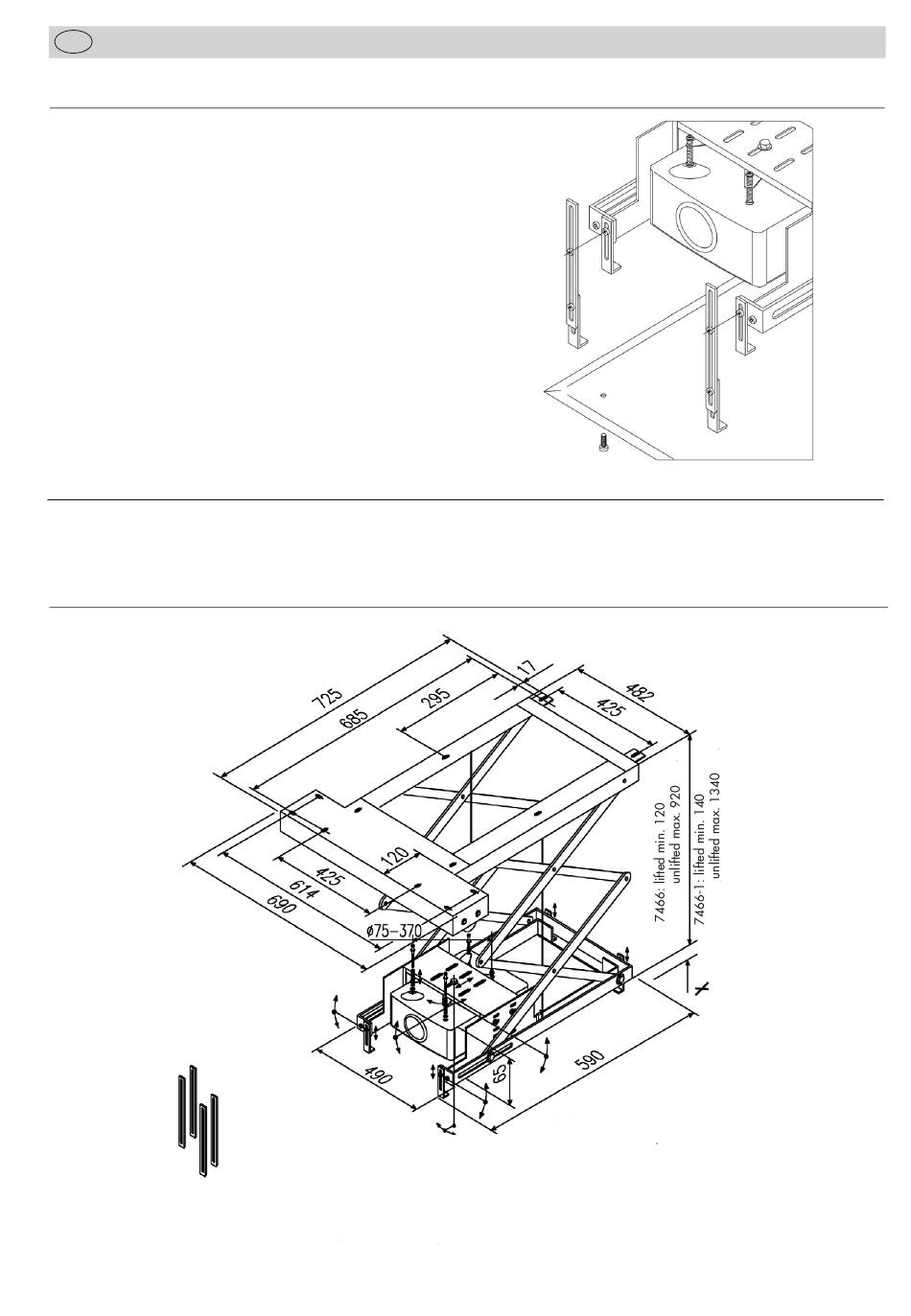

Adjusting the optional ceiling cover plate standard
The ceiling cover plate (13) is screwed to the lift via the four
adjsutable mounting plates. After loosening the mounting plates
the height of the cover plate can be adjusted. If the required height
cannot be reached, four extension arms (11) can be inserted
(illustration).
Maintenance
The ceiling lift is maintenance-free. But once a year its safety and reliability should be checked, i.e.:
cable guidance, steel ropes, clean motor, wiring and construction.
Illustration
space for projector
inside the frame
350 x 540 mm
below the frame
470 x 560 mm
projector weight max. 20 kg
required ceiling cutout 600 x 500 mm
measure X = 0 to 90 mm (up to 270 mm with concertina elements)
required cable length inside the lift approx. 2 m (7466) approx. 3 m (7466-1)
All manuals and user guides at all-guides.com
concertina elements (4x)
(extension up to 180 mm)
dim. in mm
7466
Ceiling lift Compact 80
7466-1
Ceiling lift Compact 120
15
