MEDIUM Compact 80 Montageanleitung Seite 10

Installation Manual
GB
2
5
4
}
4 x
}
4 x
}
4 x
All manuals and user guides at all-guides.com
3
1
6
7
8 9
4
10
11
12
13

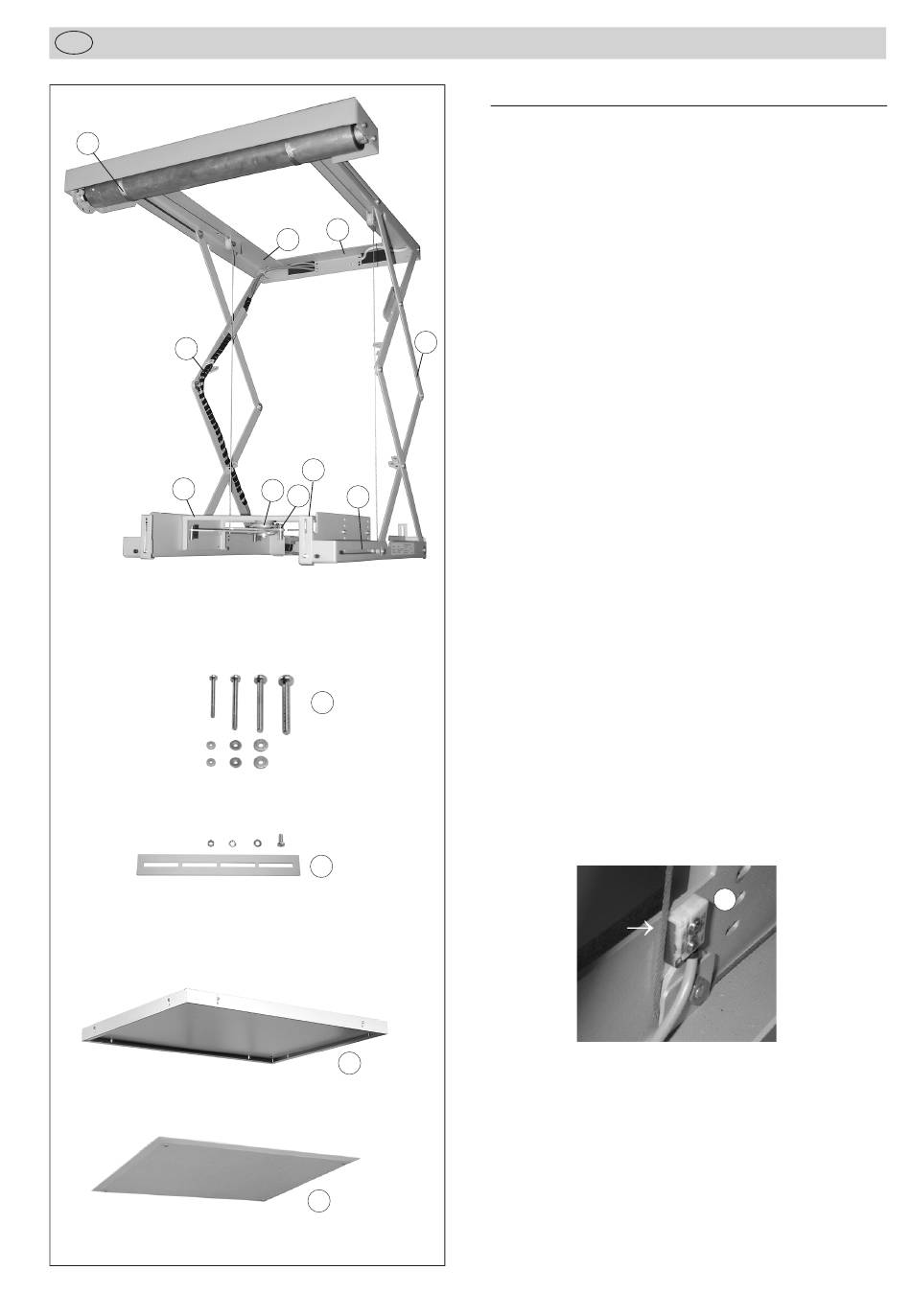

Legend
1 mounting frame with drill-holes (see illustration)
2 motor with winch
3 power socket
4 two safety switches for tight rope
cable guide with mains and connection cables to the two
5
safety switches
6 Compact 80:
2 concertina elements with lifting range of 40 cm each
Compact 120:
3 concertina elements with lifting range of 40 cm each
7 adjustable cross bar for mounting the projector
adjustable projector holder
8
9 four movable carrying arms with distance bolts
10 four sets of screws M3/M4/M5/M6 with washers
11 four extension arms with screws and nuts for modified
adjustment of the ceiling plate
12 optional ceiling plate
with T-profile for invisible mounting,
colour: coated matt white (RAL 9003)
No. 7466-10
13 optional ceiling plate standard version
for covering the ceiling cutout,
colour: coated matt white (RAL 9003)
No. 7466-11
Note:
Please check the two safety switches (4) before mounting the lift
resp. if the lift has hit an obstacle on its way – the towing rope
must press the spring against the safety switch (see illustration)!
4
10
