MEDIUM Compact 80 Montageanleitung Seite 13

Installation Manual
GB

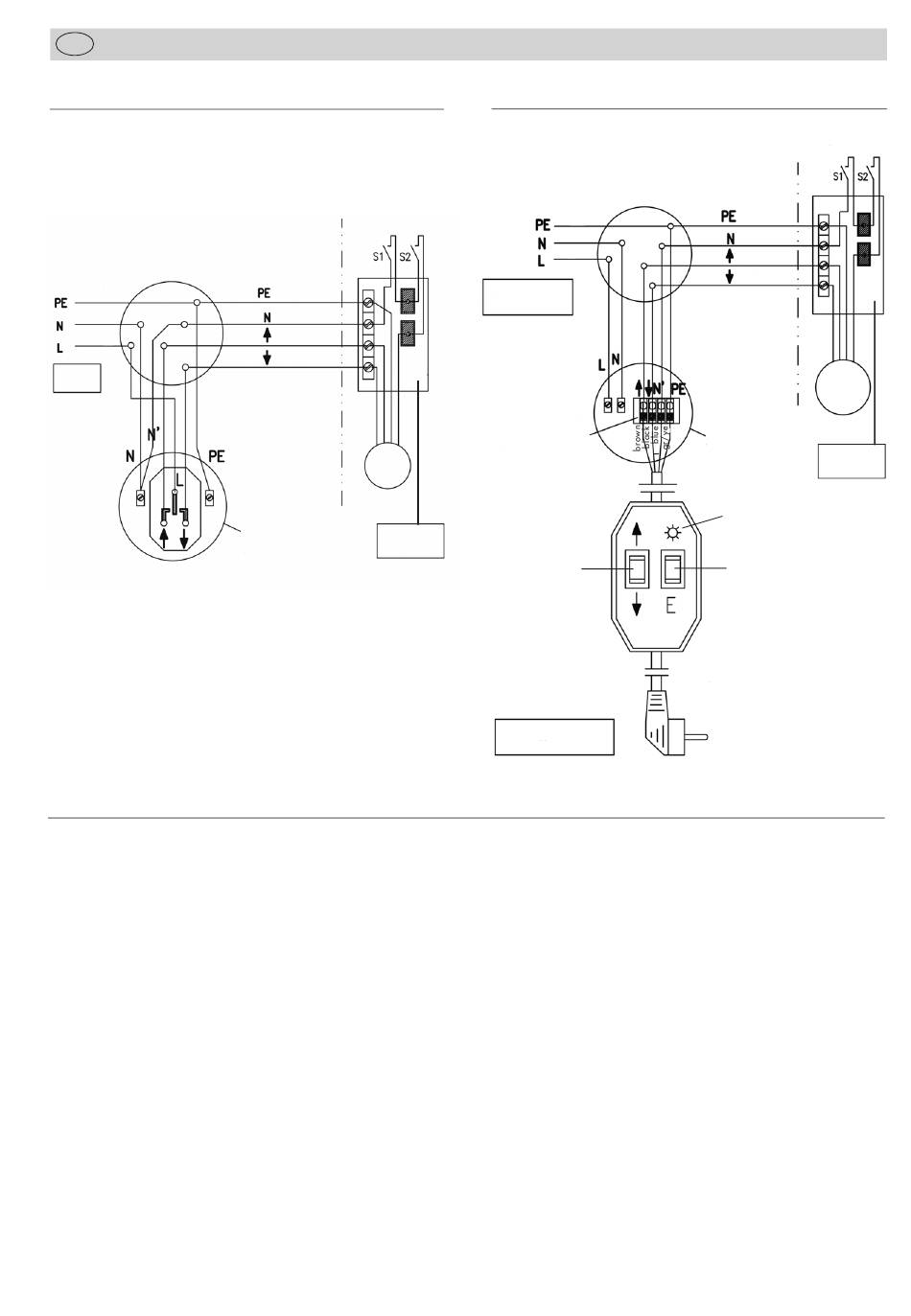

Wiring diagramme – installation of switches
Note:
Make sure that the cables to the on/off switches of the lift
are not exchanged! (brown = up, black = down)
junction box
provided by the user
green/yellow
blue
black
mains
Cable between
junction box and
box for switches
min. 6 wires
(e.g. NYM 7x1.5mm
Up/down switch
e.g. 5944-2
Adjusting the stop position of the lift
Stop position 1 Lift in complete upward position
Stop position 2 Lift in complete downward position
To programme new positions use the programming unit standard
(No. 7466-100) or electronic (No. 7466-101. See optional
accessories.
a) Programming unit standard
Install the unit according to the attached wiring diagramme. Make
sure that the colours of the installation cables are identical with
the colours of the motor cable. Connect with the mains only after
completing the installation!
Adjustment end positions:
1. Press button E (2) for at least 6 sec., the motor switches into
adjustment mode. Short stop after start indicates adjustment
mode!
2. Drive to the bottom end position (projection position).
3. Press button E (2) for at least 3 sec., bottom end position is set.
4. Drive to top end position (home position) carefully.
5. Press button E (2) for at least 3 sec., top end position (home
position) is set.
6. A trial run should be carried out upon completion of adjust-
ments. Adjustments are correct when the ceiling lift stops at
the set end positions.
