General Information
The HZO41 800 MHz Differential probe is best suited for measurements of high-speed differential signals.
These signales are commonly used in digital and power applications and especially at serial buses like
CAN. The HZO41 can be powered by USB or battery and is compatible with all oscilloscopes with 50 Ω BNC
Inputs. Scopes without 50Ω input need a 50 Ω feed through BNC adapter like the HAMEG HZ22.
The probe does have an high input resistance of 200 kΩ combined with 1 pF input capacitance. This
secure a low loading of the device under test. The attenuation of the HZO41 is 10 : 1 which broaden the
application range a lot.

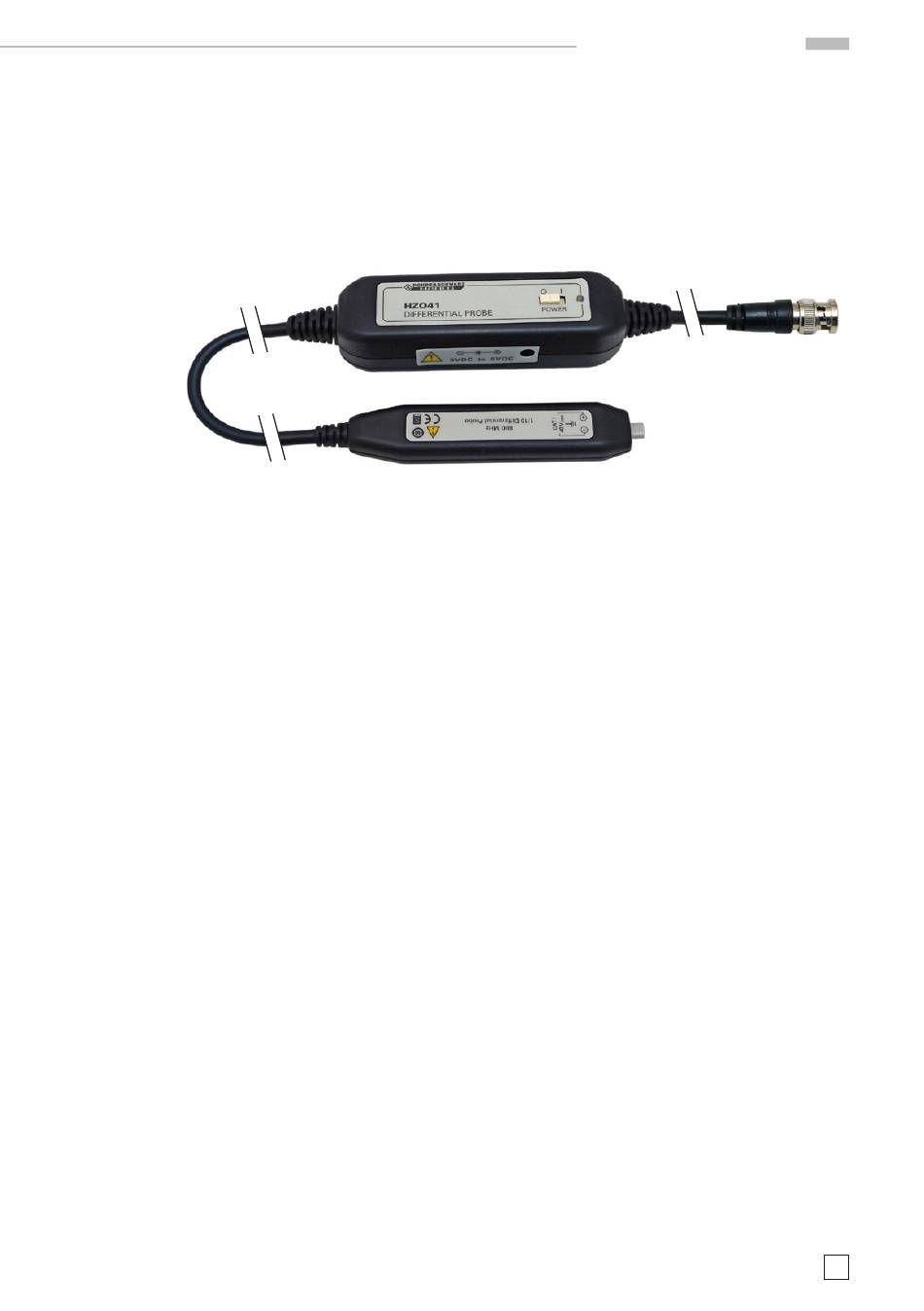

D i f f e r e n t i a l P r o b e 10 : 1
H Z O 41
800 MHz Bandwidth
high input resistance of 200 kΩ
low input capacity of 1 pF
high dynamic range of ±15 V differential and ±30 V common
universal power supply using battery or USB cable
typical applications:
– differential signals like CAN Bus or LVDS
– DC-DC converter
S p e c i f i c a t i o n s
Subject to change without notice
