EcoDim ECO-DIM.13 Zigbee Handbuch Seite 3

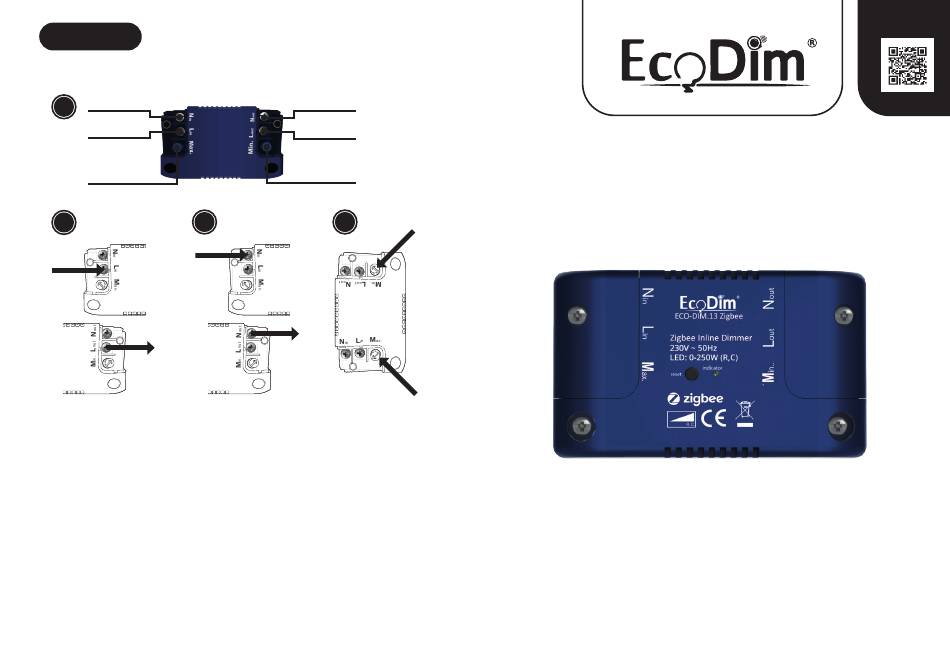

Installation
2-wire connection
1
N wire
L wire
MAX-
potentiometer
2 3
N
L
L
Step 1
Always ensure that the electricity is switched off during installation. Then connect the
power wires as shown under 'Installation' .
Step 2
Run the phase wire (L) through by connecting it to the L in and L out ports.
Step 3
Run the neutral (N) wire through by connecting it to the N in and N out ports.
Step 4
Switch the electricity back on. Turn on the connected lamps using the App. Now set the
MIN & MAX as shown under 'Min. setting the light level' and 'Max. setting the light level' .
N wire
L wire
Min-
potentiometer
4
N
Manual
ECO-DIM.13 Zigbee
Led inline Zigbee dimmer
(phase cut-off) (R,C)
Caution:
• This inline dimmer should be connected as shown under the heading 'Connection
diagrams' .
• Installation of the dimmer on a 230V mains power supply should be carried out by
a qualified professional, taking into account national regulations. Ensure that the
electricity is switched off during all work.
• No more than one dimmer can be switched in parallel.
EcoDim B.V.
We, EcoDim B.V., hereby declare that this product conforms to the
Dr. Huber Noodtstraat 89
7001 DV, Doetinchem, Netherlands
(Imported by NJ Trading B. V .)
The full text of the EU declaration of conformity can be consulted
Made in China
Simplified EU Declaration of Conformity:
directives applicable from the European Union.
at the following internet address:
https://www.ecodim.nl/en/service/ecodim-certificering
