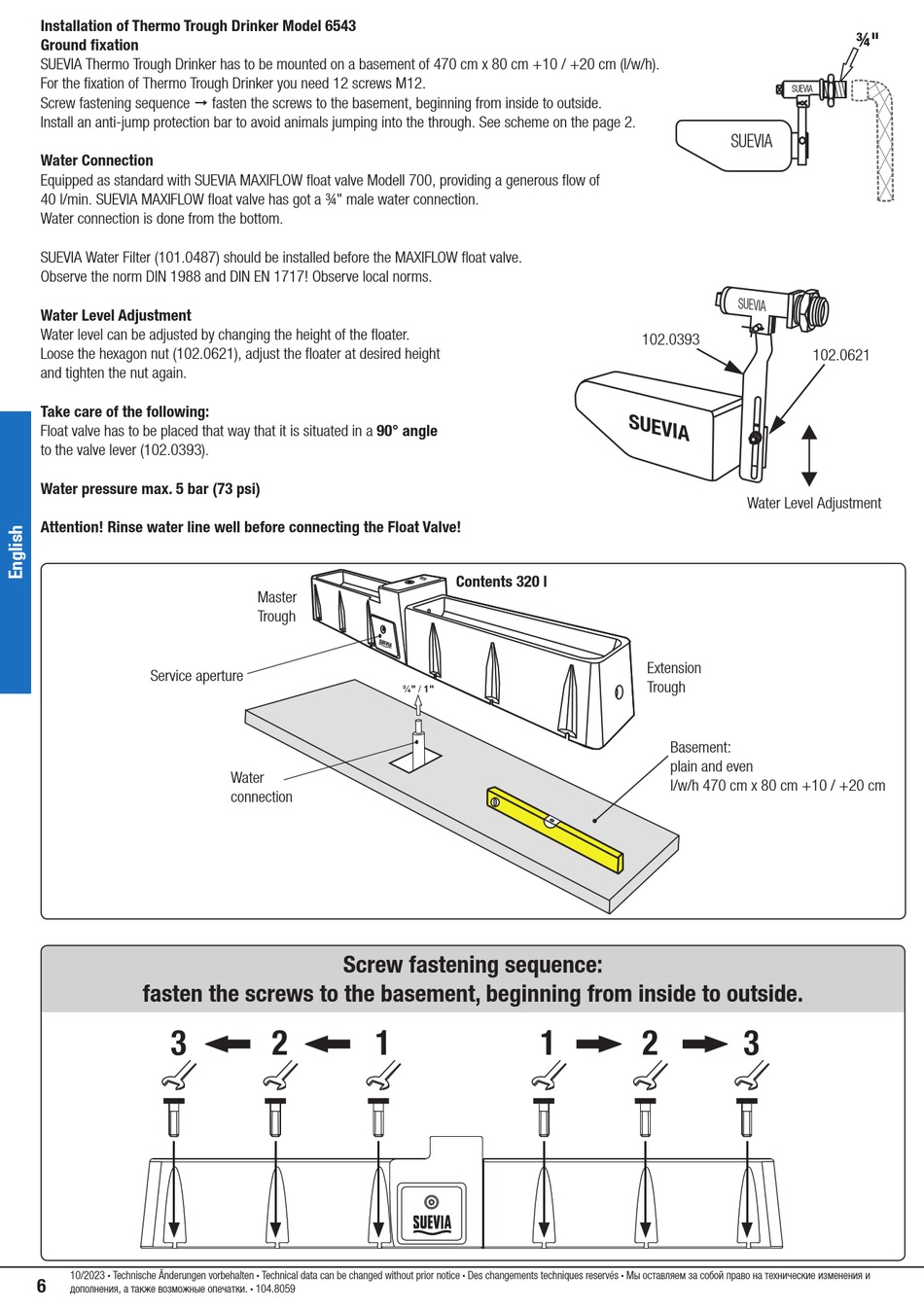

Installation of Thermo Trough Drinker Model 6543
Ground fixation
SUEVIA Thermo Trough Drinker has to be mounted on a basement of 470 cm x 80 cm +10 / +20 cm (l/w/h).
For the fixation of Thermo Trough Drinker you need 12 screws M12.
Screw fastening sequence fasten the screws to the basement, beginning from inside to outside.
Install an anti-jump protection bar to avoid animals jumping into the through. See scheme on the page 2.
Water Connection
Equipped as standard with SUEVIA MAXIFLOW float valve Modell 700, providing a generous flow of
40 l/min. SUEVIA MAXIFLOW float valve has got a ¾" male water connection.
Water connection is done from the bottom.
SUEVIA Water Filter (101.0487) should be installed before the MAXIFLOW float valve.
Observe the norm DIN 1988 and DIN EN 1717! Observe local norms.
Water Level Adjustment
Water level can be adjusted by changing the height of the floater.
Loose the hexagon nut (102.0621), adjust the floater at desired height
and tighten the nut again.
Take care of the following:
Float valve has to be placed that way that it is situated in a 90° angle
to the valve lever (102.0393).
Water pressure max. 5 bar (73 psi)
Attention! Rinse water line well before connecting the Float Valve!
Service aperture
fasten the screws to the basement, beginning from inside to outside.
3
10/2023 · Technische Änderungen vorbehalten · Technical data can be changed without prior notice · Des changements techniques reservés · Мы оставляем за собой право на технические изменения и
6
дополнения, а также возможные опечатки. · 104.8059
Master
Trough
Water
connection
Screw fastening sequence:
2
1
S U E V I
Contents 320 l
1
SUEVIA
SUEVIA
S U E V IA
102.0393
102.0621
A
Water Level Adjustment
Extension
Trough
Basement:
plain and even
l/w/h 470 cm x 80 cm +10 / +20 cm
2
3
¾"
