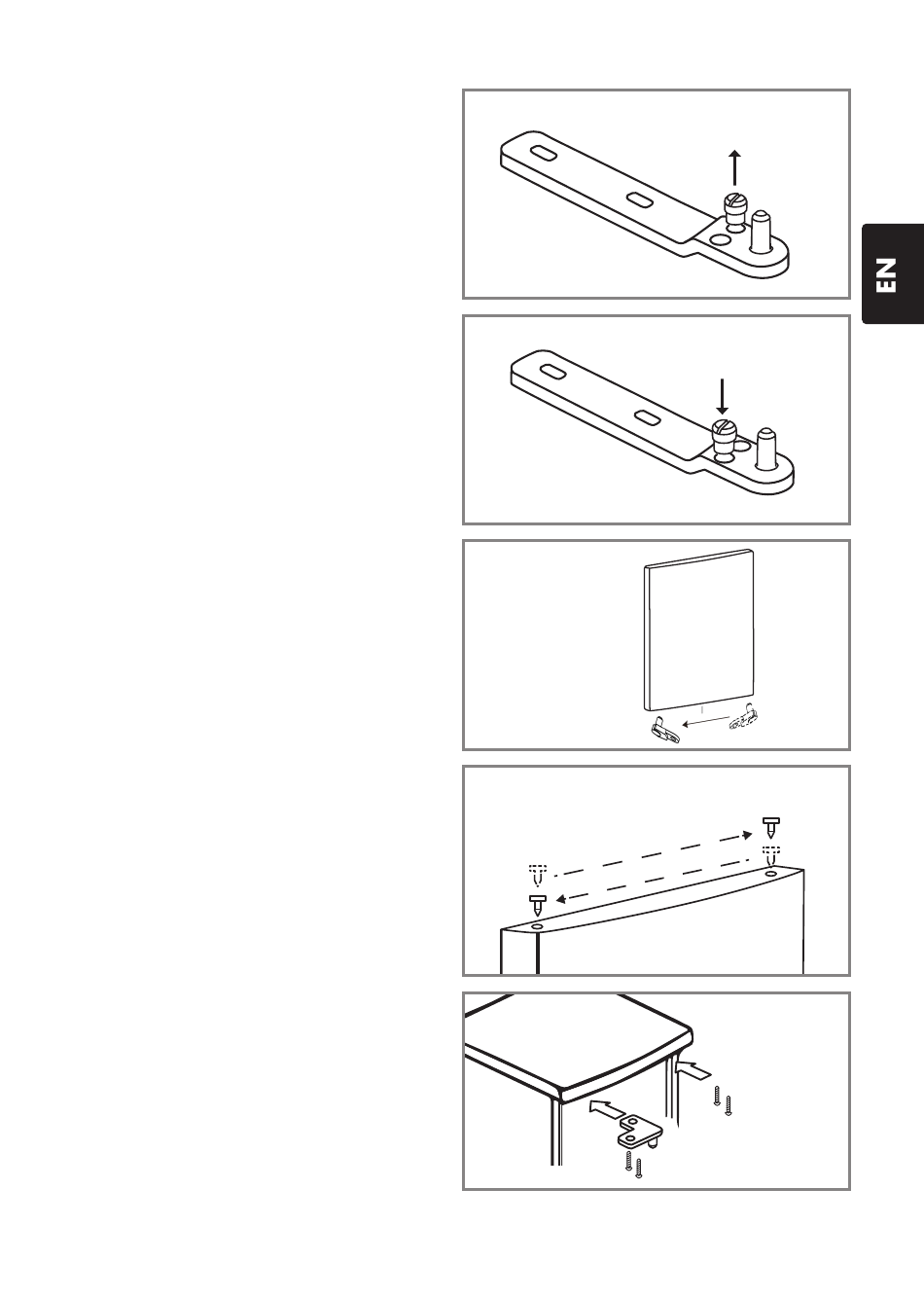

4. Remove the bottom washer and the nut
that holds the pin shaft in the right hole on
the bottom hinge, then remove the shaft.
5. Insert the pin shaft in the left hole on the
bottom hinge and secure the shaft with the
bottom washer and nut.
6. Attach the bottom hinge to the left-hand
side of the cabinet. Remove the screw
securing the door closer at the bottom
right of the door of the refrigerator
compartment, then remove the door closer
and install it at the bottom left.
7. Install the door of the refrigerator
compartment. Move the door bush from
the top right side of the refrigerator door
to the top left side of the door. Move the
cover plate from the left hole to the right.
8. Secure the top hinge at the top left side
of the cabinet with the screws you have
removed before. Before tightening the top
hinge screws, make sure that the top of
the door is level with the cabinet and that
the rubber gasket seals properly.
Fridge door
Door stop
Door
bearing
29
Pin shaft
Pin shaft
Hole cover
Screws
Top hinge
