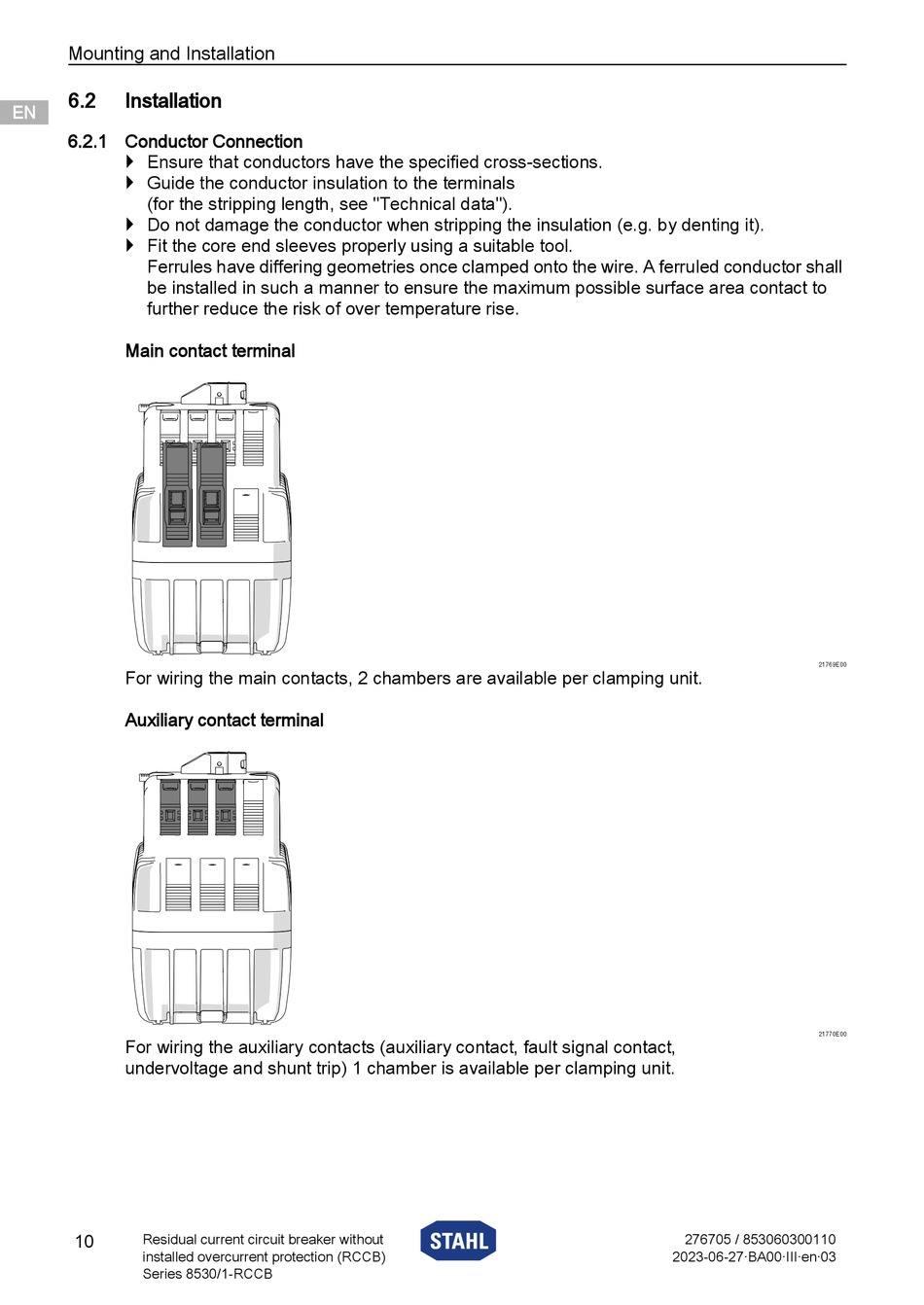

Mounting and Installation
EN
6.2

Installation

EN
6.2.1 Conductor Connection
EN
 Ensure that conductors have the specified cross-sections.
EN
 Guide the conductor insulation to the terminals
EN
(for the stripping length, see "Technical data").
 Do not damage the conductor when stripping the insulation (e.g. by denting it).
EN
 Fit the core end sleeves properly using a suitable tool.
EN
Ferrules have differing geometries once clamped onto the wire. A ferruled conductor shall
EN
be installed in such a manner to ensure the maximum possible surface area contact to
further reduce the risk of over temperature rise.
EN
EN
Main contact terminal
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
For wiring the main contacts, 2 chambers are available per clamping unit.
EN
EN
Auxiliary contact terminal
EN
EN
For wiring the auxiliary contacts (auxiliary contact, fault signal contact,
undervoltage and shunt trip) 1 chamber is available per clamping unit.
10
Residual current circuit breaker without
installed overcurrent protection (RCCB)
Series 8530/1-RCCB
21769E00
21770E00
