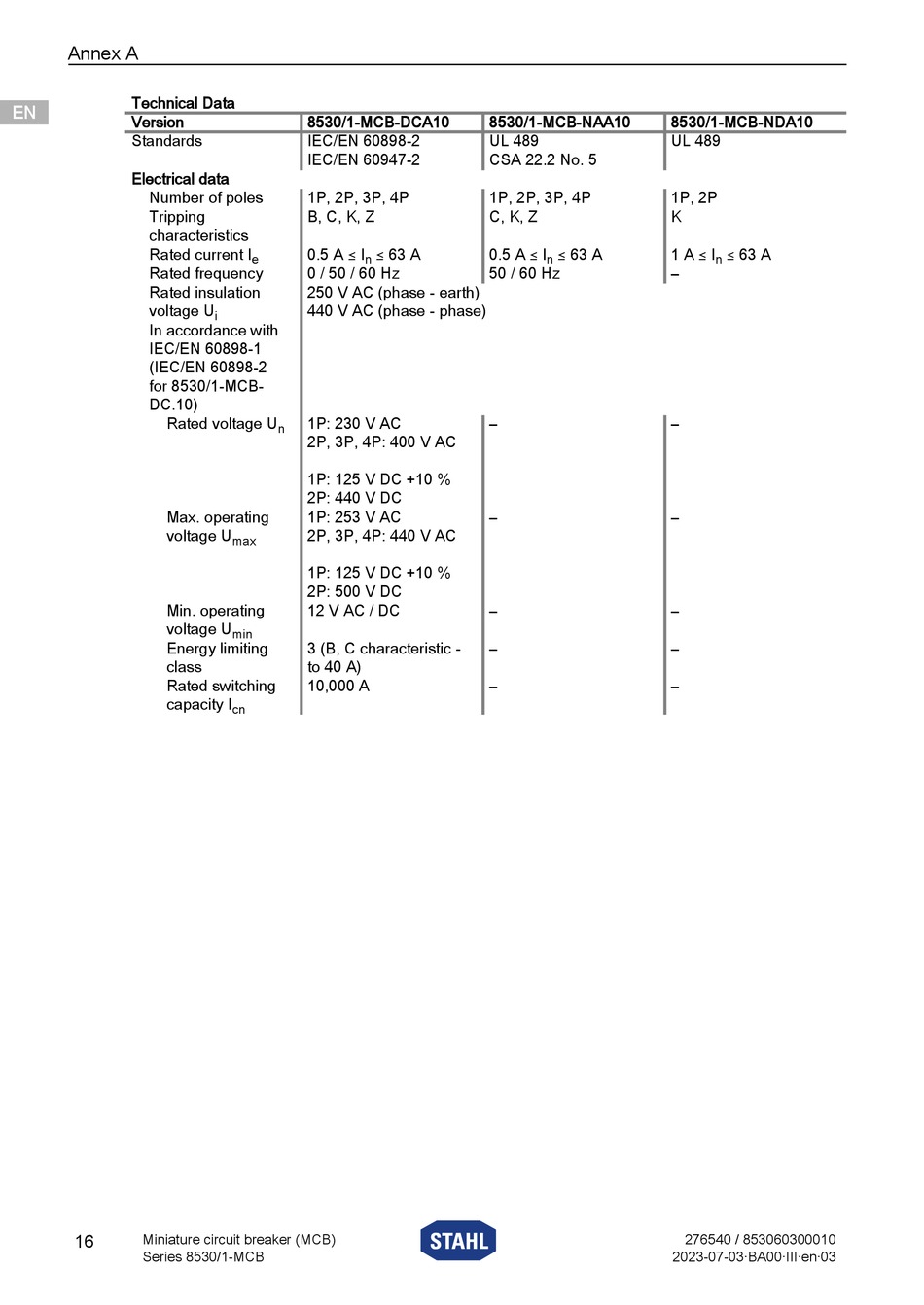

Miniature circuit breaker (MCB)
Series 8530/1-MCB
8530/1-MCB-DCA10
IEC/EN 60898-2
IEC/EN 60947-2
1P, 2P, 3P, 4P
B, C, K, Z
0.5 A ( I ( 63 A
e n
0 / 50 / 60 Hz
250 V AC (phase - earth)
440 V AC (phase - phase)
i
1P: 230 V AC
n
2P, 3P, 4P: 400 V AC
1P: 125 V DC +10 %
2P: 440 V DC
1P: 253 V AC
2P, 3P, 4P: 440 V AC
max
1P: 125 V DC +10 %
2P: 500 V DC
12 V AC / DC
min
3 (B, C characteristic -
to 40 A)
10,000 A
cn
8530/1-MCB-NAA10
UL 489
CSA 22.2 No. 5
1P, 2P, 3P, 4P
C, K, Z
0.5 A ( I ( 63 A
n
50 / 60 Hz
–
–
–
–
–
8530/1-MCB-NDA10
UL 489
1P, 2P
K
1 A ( I ( 63 A
n
–
–
–
–
–
–
276540 / 853060300010
