FR 200 • Operating Manual

Work preparation

Check your machine for damage.
• Check whether moving parts are in working order.
• Damaged protection devices and parts must be expertly repaired or replaced by a customer
service workshop.

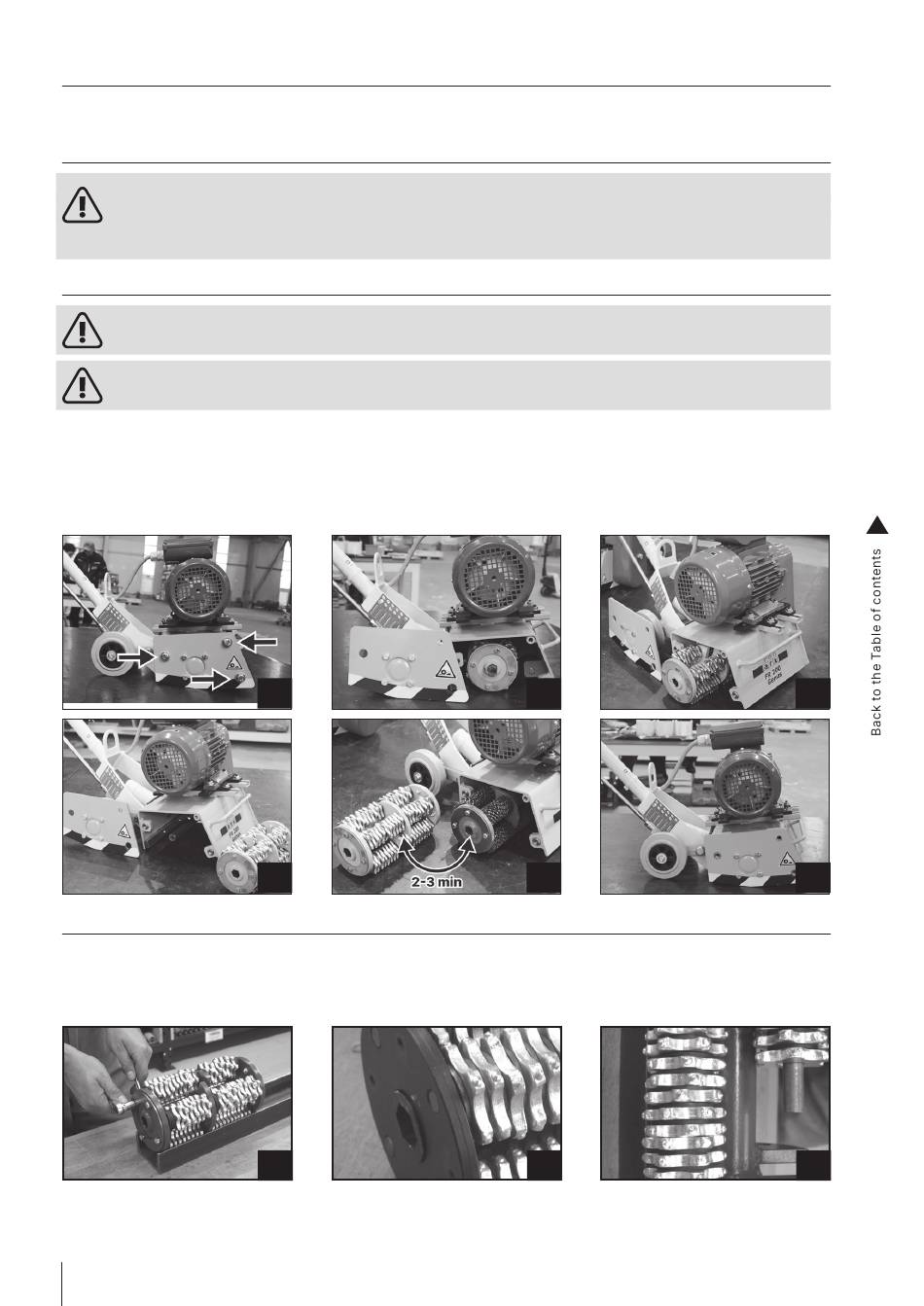

Changing the tool drum

Pull out the mains plug for machines with electric motors.
Pull off the spark plug cap on machines with internal combustion engines.
A) Remove the screws from the drum cover.
B) Remove the drum cover from the machine
C) Remove the tool drum from the drive shaft.
D) Clean and grease the drive shaft lightly.
E) Push the tool drum onto the drive shaft.
F) Fasten the drum cover back on with the screws.

Fitting out the tool drum

Removing the cutters
A) Undo the hexagon bolts from the tool drum retaining ring.
B) Remove the retaining ring from the tool drum.
C) Pull the cutter shaft off the drum core.
16
A
D
A
B
E
B
Operation
C
F
C
