RS-485 port

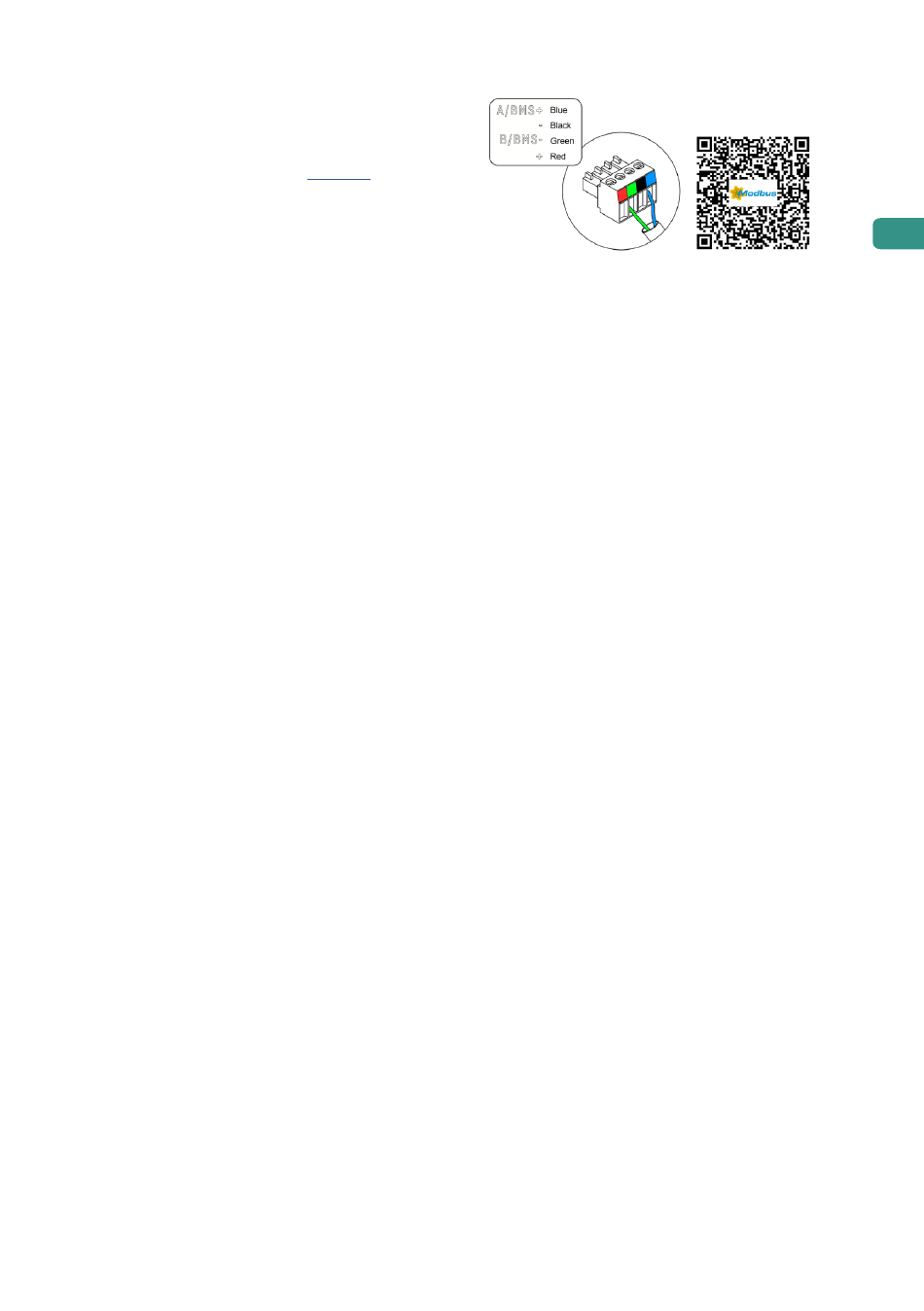

RS485 port for establishing
communication with the device. The device
will work as a Modbus secondary.

Connection to the indoor unit

This terminal allows the device to communicate with the indoor air to water unit or the
thermostat via the connection cable, allowing management of the following parameters:
•
On/Off
•
Operation mode
•
Set-point temperature
As well as reading of room temperature reading and errors in the unit.
Note: Both the shape of the terminal on the Aidoo Pro device and the shape of the cable may
vary depending on the compatible manufacturer.

Factory reset

This button allows you to restore the device to factory settings by pressing it continuously for
more than 10 seconds.

Digital input

Voltage free input. It can be used as a window contact, occupancy or similar to turn the AC unit
on/off if the input changes value.
By default it will be disabled and configured as "normally open."
Note: It is recommended that the wiring of the digital inputs be routed through a separate
conduit.

Reset of the device

Allows you to reset the device without removing any previously set configuration parameters.

Power supply input

12 Vdc input that enables providing power to the Aidoo Pro device.
The 230 Vac - 12 Vdc power supply is supplied with the device.
