21368 Distance Rod
»Ring Lock«
- Height adjustable connector for satellite systems
- Satellite stays in place and has low-resonance thanks to the patented »Ring Lock« system
- Plastic mandrels create low-resonance connections
- Comfortable and secure height adjustment using the locking pin
- Expanding mandrel ø 35-36,5 mm, Threaded Bolt on the Base Rod M20 x 15 mm, Height: 1100 - 1800 mm, Weight: 4.4 kg
Thank you for choosing this product. The instructions provide directions to all of the
important set up and handling steps. We recommend you keep these instructions for
future reference.
SAFETY NOTES
a. Criteria for maximum load:
a. - the proper installation setup consists of the following:
a. - subwoofer, distance rod and satellite box may not fall over
a. - at a 5° testing angle
a. - max. 35 kg
b. Prior to use:
b. - The floor must be load bearing and level
b. - Check if the distance rod, loudspeakers and aids (e.g. ladders)
b. - are in working order in particular regarding:
b. - completeness, size relationship and quality
b. - In the case of heavy loads the use of additional technicians is required.
b. - (we recommend 2 technicians that are physically fit)
c. Safety during operation:
c. - be sure the weight on the rod is centered:
c. - if the weight is not centered - this has a negative affect on stability
c. - Keep unauthorized individuals away from the installation
c. - Locking pin 12 and clamping screw 14 must be locked into place
c. - Never loosen the clamp screw or locking pin without having someone
c. - hold the weight of the subwoofer, loudspeakers, or satellite boxes
c. - Protect against lateral forces, because these increase:
c. - - the risk of the installation falling over and
c. - - create leverage forces, which can negatively affect the threaded bolts
c. - - and the mounting plates, in particular if these are not properly screwed
c. - - together (no space between the two). That is why it is of utmost
c. - - importance to ensure that the screws are properly tightened.
c. - Examples of lateral forces:
c. - - wind, impact, uneven surface, pulling on the installation
d. After use:
d. - first remove the satellite boxes,
d. - then loosen the rod from the subwoofer
d. - Careful and attentive handling is required:
d. - the adjustment options can result in pinching or wedging your hand

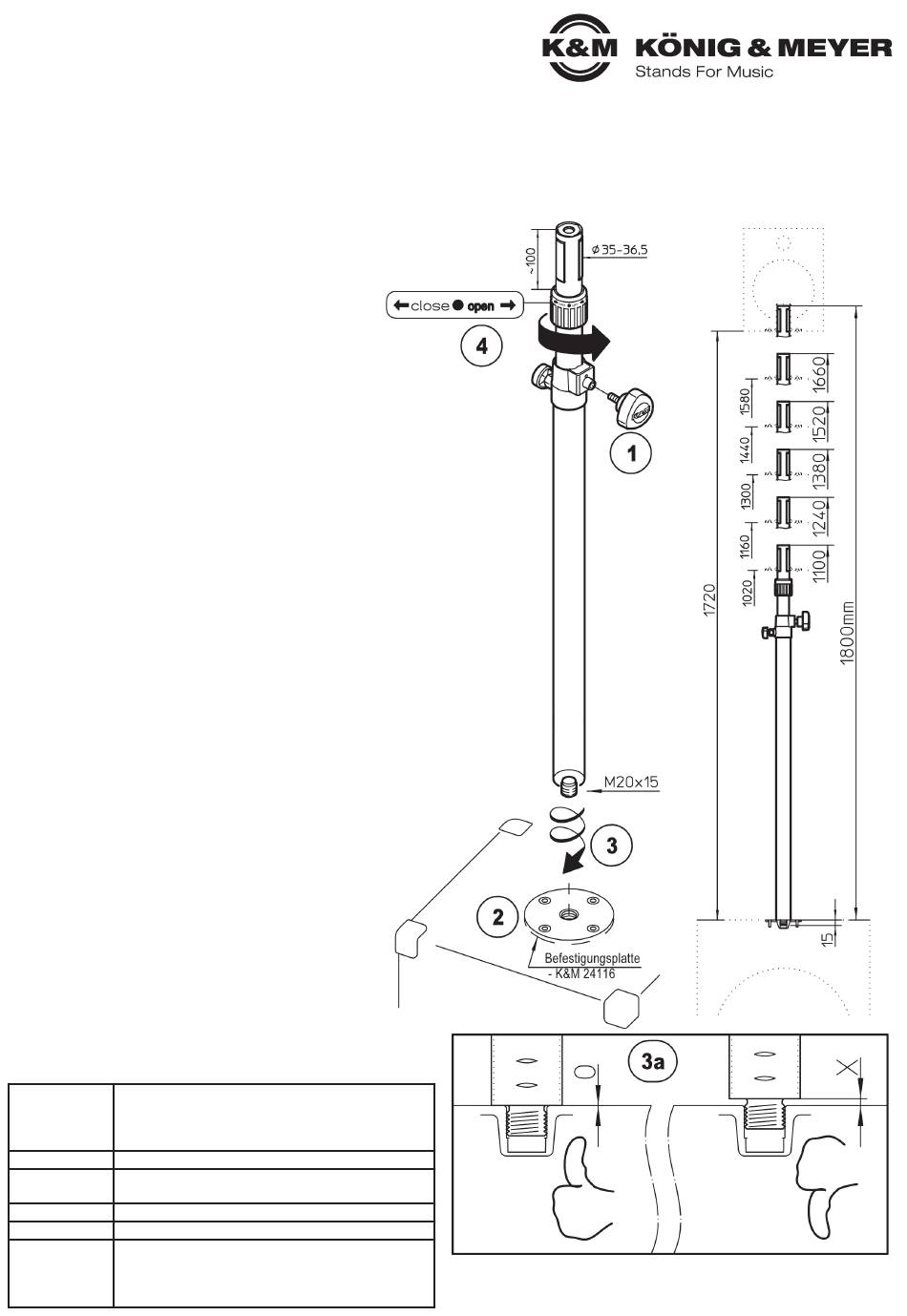

SET UP INSTRUCTIONS
1 Remove the distance rod from the box and
1 screw the clamp screw into the clamping bracket
2 Ensure that the subwoofer has a
2 M20-internal thread (e.g. Adapter 24116).
3 Screw the subwoofer to the base tube
3 as far as it will go.
3a NOTE: Regularly check screws, to ensure that
3a the screws are properly tightened.
3a (See SAFETY NOTES - c.)
4 Turn the locking ring towards OPEN
4 to be able to set the mandrel to the smallest diameter.
TECHNICAL DATA / SPECIFICATIONS
Tubes: Steel, black powder coating
Locking Ring: aluminum
Material
Screws, Locking Pin: Steel, galvanized, nickel plated
Mandrel Elements, Handles: PA
Load Capacity max. 35 kg / 5°
H: 1100 - 1880 mm
Dimensions
Mandrel system: ø 35-36,5 mm - 100 mm
Box 1160 x 90 x 80 mm
Weight 4.4 kg
Carrying Case 21421 (for one or two rods)
Accessories Flange Adapters (19580, 19654, 19656)
(optional) Screw On Flange (24281)
Adapter Sleeve 21326: ø 38 mm (=US-Variant)
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
21368-000-55 Rev.09 03-80-836-00 1/19
