Connecting Cyk10; Connecting Cyk11 - Endress+Hauser CYK10 Betriebsanleitung

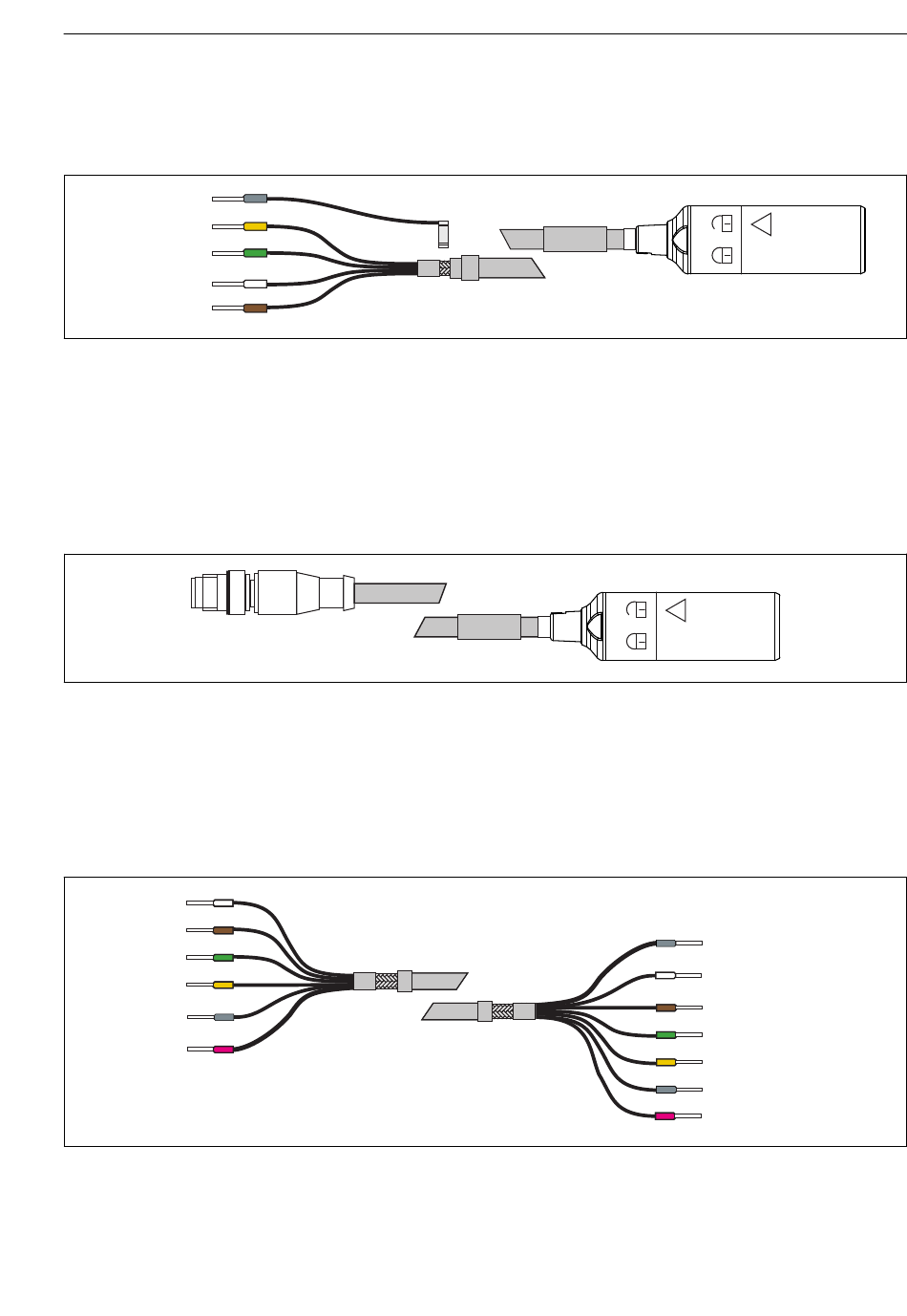

6.1

Connecting CYK10

6.1.1 CYK10 with ferrules
GY GND
YE Com B
GN Com A
–
WH
+
BN
 5 Electrical connection, ferrules
Instead of grounding via GY, it is also possible to ground the device via the cable clamps in the
transmitter.
6.1.2 CYK10 with M12 plug
 6 Electrical connection, M12 plug
6.2

Connecting CYK11

6.2.1 CYK11 with ferrules
WH
BN
GN
YE
GY
PK
 7 Electrical connection, ferrules
1 Memosens sensor
2 Fixed cable sensor
Endress+Hauser
E N / Y G
Electrical connection
A0031036
A0018861
GY
GND
WH -
{
1
BN +
GN Com A
YE Com B
GY - {
2
PK +
A0031038
31
