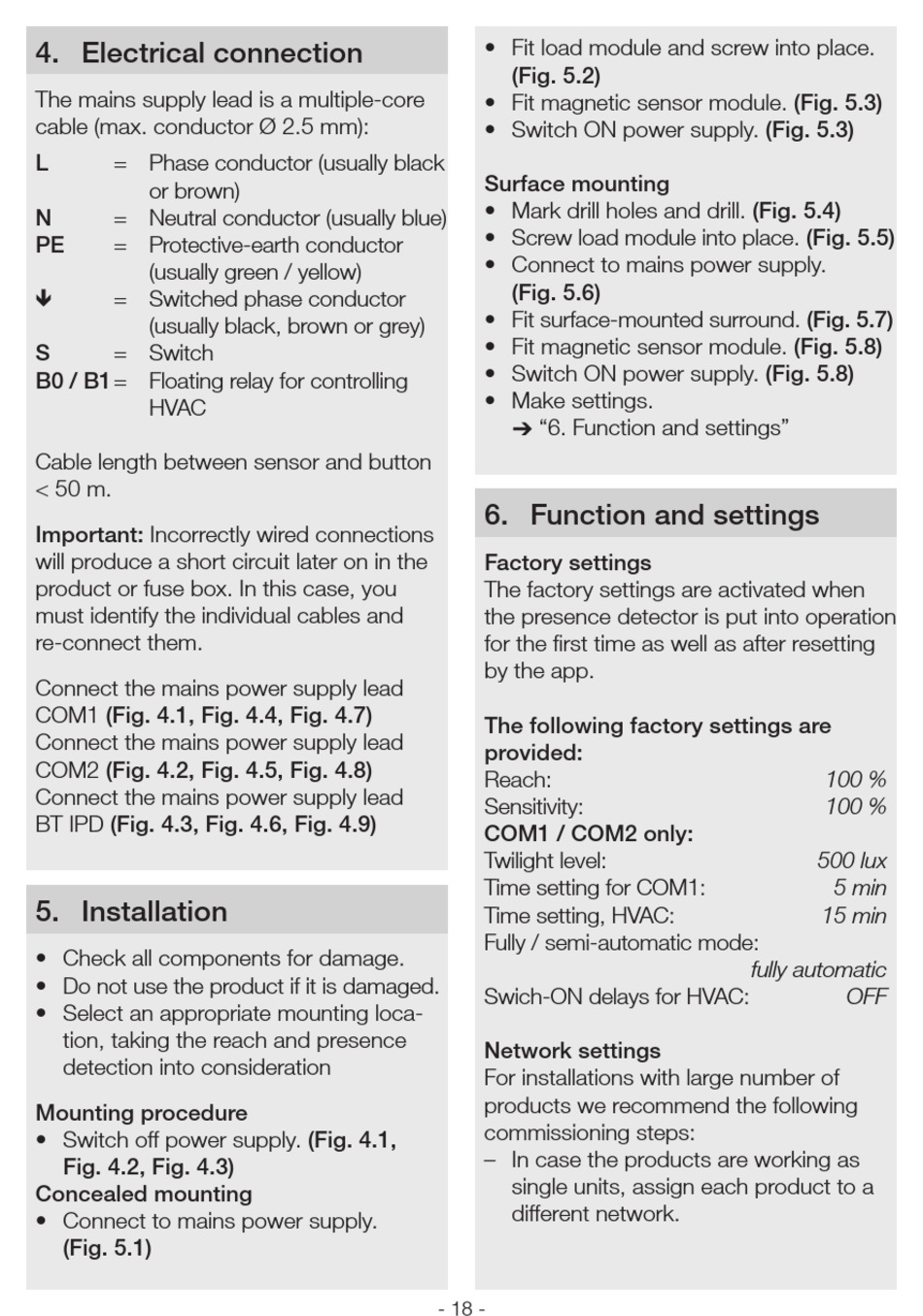

4� Electrical connection
The mains supply lead is a multiple-core
cable (max. conductor Ø 2.5 mm):
L = Phase conductor (usually black
or brown)
= Neutral conductor (usually blue)
N
= Protective-earth conductor
PE
(usually green / yellow)
= Switched phase conductor

(usually black, brown or grey)
S = Switch
B0 / B1 = Floating relay for controlling
HVAC
Cable length between sensor and button
< 50 m.
Important: Incorrectly wired connections
will produce a short circuit later on in the
product or fuse box. In this case, you
must identify the individual cables and
re-connect them.
Connect the mains power supply lead
COM1 (Fig� 4�1, Fig� 4�4, Fig� 4�7)
Connect the mains power supply lead
COM2 (Fig� 4�2, Fig� 4�5, Fig� 4�8)
Connect the mains power supply lead
BT IPD (Fig� 4�3, Fig� 4�6, Fig� 4�9)
5� Installation
• Check all components for damage.
• Do not use the product if it is damaged.
• Select an appropriate mounting loca-
tion, taking the reach and presence
detection into consideration
Mounting procedure
• Switch off power supply. (Fig� 4�1,
Fig� 4�2, Fig� 4�3)
Concealed mounting
• Connect to mains power supply.
(Fig� 5�1)
• Fit load module and screw into place.
(Fig� 5�2)
• Fit magnetic sensor module. (Fig� 5�3)
• Switch ON power supply. (Fig� 5�3)
Surface mounting
• Mark drill holes and drill. (Fig� 5�4)
• Screw load module into place. (Fig� 5�5)
• Connect to mains power supply.
(Fig� 5�6)
• Fit surface-mounted surround. (Fig� 5�7)
• Fit magnetic sensor module. (Fig� 5�8)
• Switch ON power supply. (Fig� 5�8)
• Make settings.
 "6. Function and settings"
6� Function and settings
Factory settings
The factory settings are activated when
the presence detector is put into operation
for the first time as well as after resetting
by the app.
The following factory settings are
provided:
Reach:
Sensitivity:
COM1 / COM2 only:
Twilight level:
Time setting for COM1:
Time setting, HVAC:
Fully / semi-automatic mode:
Swich-ON delays for HVAC:
Network settings
For installations with large number of
products we recommend the following
commissioning steps:
– In case the products are working as
single units, assign each product to a
different network.
- 18 -
100 %
100 %
500 lux
5 min
15 min
fully automatic
OFF
