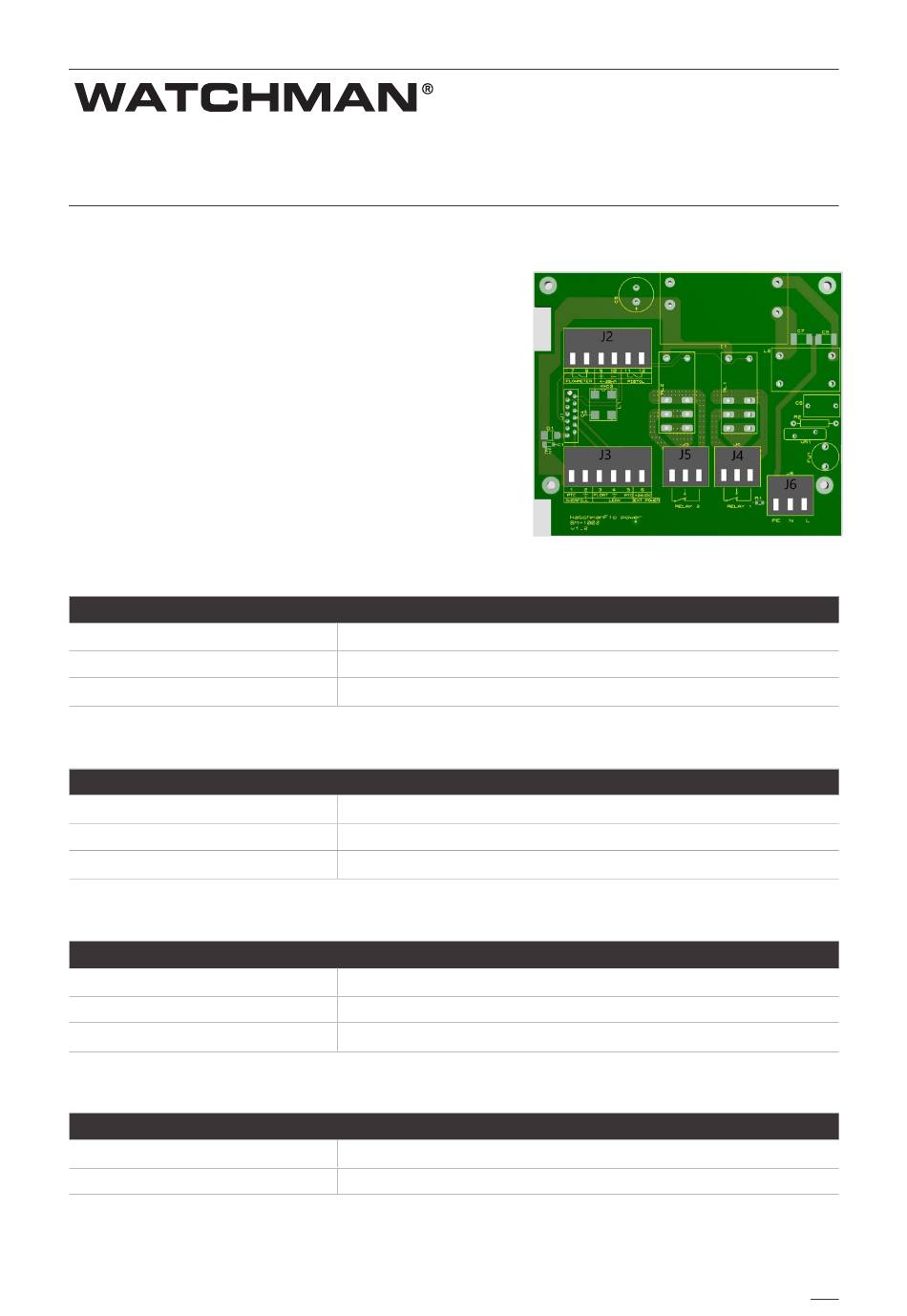

3.Electrical connections

3.1 Connectors
1.1 Enclosure
Note:
Solid wire: 28-14 AWG / 0.08-2.08 mm²
■
Stranded wire: 28-14 AWG / 0.08-2.08 mm²
■
Wire stripe length: 6-7mm
■
Wire Crimp Ferrules required for stranded wire
■

3.2 Mains input

L
N
PE
3.3 Relay 1 output
3.4 Relay 2 output
3.5 PTC Overfill prevention input
1
2
Sensor excitation voltage: 24VDC
■
Max current: 120mA
■
Flo
J6
Live
Neutral
Earth
J4
Normally Open
Common
Normally Close
J5
Normally Close
Common
Normally Open
J3
PTC
PTC
4
