E2 / RS232 CONVERTER KIT FOR CALIBRATION / ADJUSTMENT
(Order code HA011005)
1.
SCOPE OF SUPPLY
- E2 / RS232 converter
- Supply and main contact device
- EE08-PFTxDxxx connection cable (incl. connecter plug + terminal strip)
- Terminal strip for EE08-PFTxExxx
- CD with calibration / adjustment software
2.

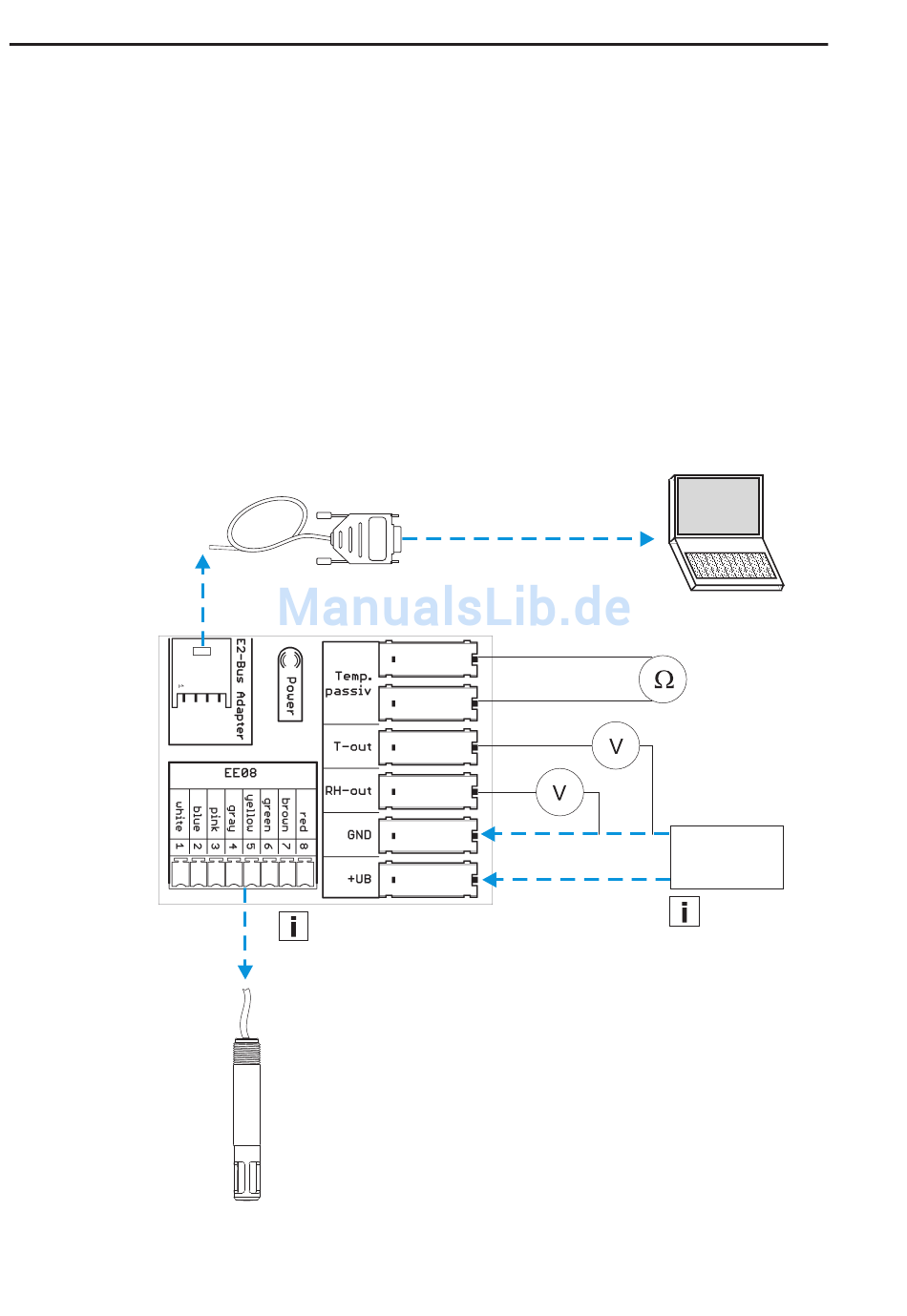

CONNECTION DIAGRAM
EE08-PFTxDxxx
EE08-PFTxExxx
max. cable length: 10m
E2-interface - RS232 converter
Note:
To prevent short circuits,
connect all 8 wires of
(32.8ft)
the connection cable
(EE08-PFTxExxx) to the
8-pin terminal strip.
15
supply voltage
12V DC ±10%
Note:
External supply necessary!
