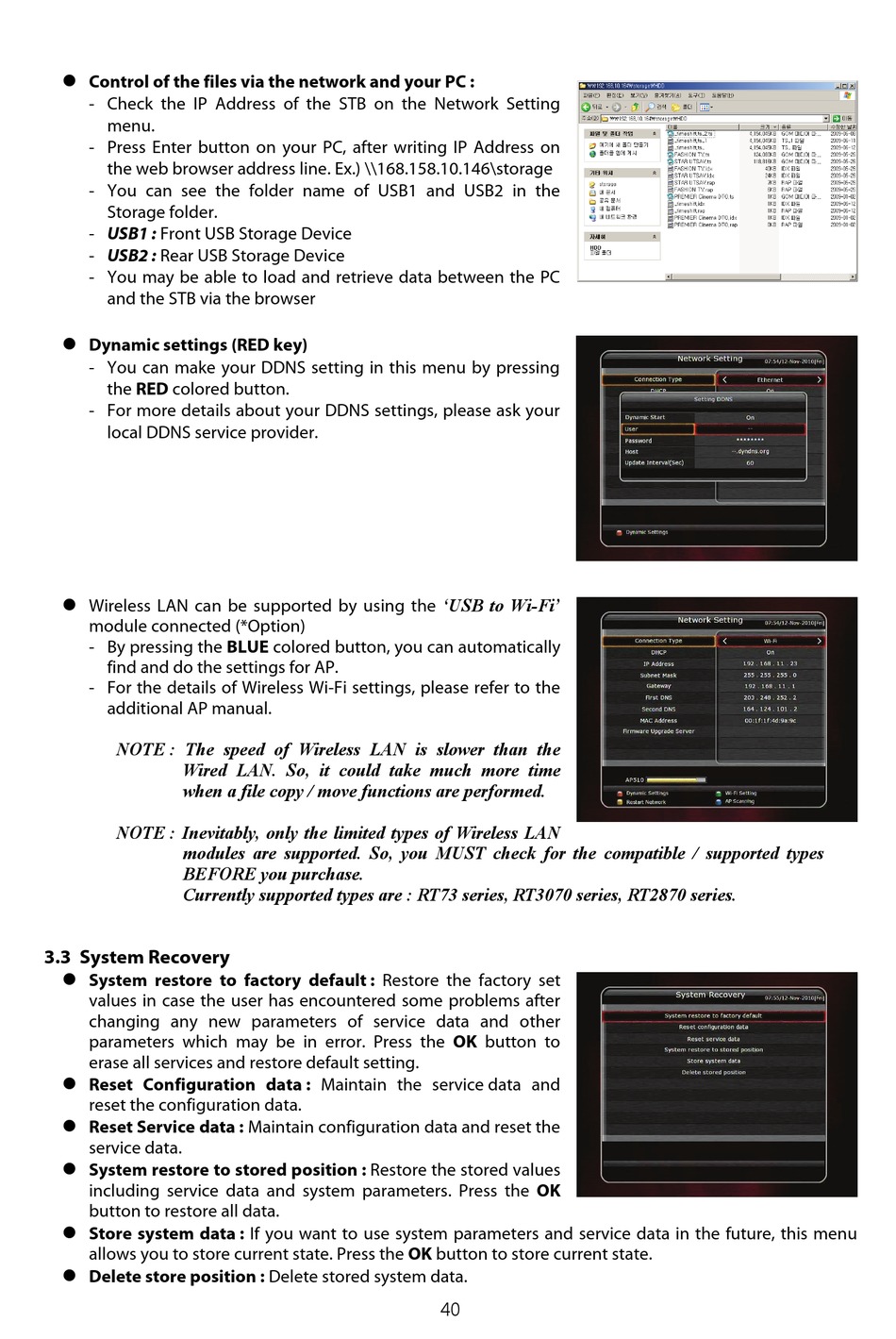

System Recovery - Octagon SF 1008C SE+ HD INTELLIGENCE Bedienungsanleitung


Control of the files via the network and your PC :
- Check the IP Address of the STB on the Network Setting
menu.
- Press Enter button on your PC, after writing IP Address on
the web browser address line. Ex.) \\168.158.10.146\storage
- You can see the folder name of USB1 and USB2 in the
Storage folder.
- USB1 : Front USB Storage Device
- USB2 : Rear USB Storage Device
- You may be able to load and retrieve data between the PC
and the STB via the browser

Dynamic settings (RED key)
- You can make your DDNS setting in this menu by pressing
the RED colored button.
- For more details about your DDNS settings, please ask your
local DDNS service provider.
Wireless LAN can be supported by using the 'USB to Wi-Fi'

module connected (*Option)
- By pressing the BLUE colored button, you can automatically
find and do the settings for AP.
- For the details of Wireless Wi-Fi settings, please refer to the
additional AP manual.
NOTE : The speed of Wireless LAN is slower than the
Wired LAN. So, it could take much more time
when a file copy / move functions are performed.
NOTE : Inevitably, only the limited types of Wireless LAN
modules are supported. So, you MUST check for the compatible / supported types
BEFORE you purchase.
Currently supported types are : RT73 series, RT3070 series, RT2870 series.

3.3 System Recovery


System restore to factory default : Restore the factory set
values in case the user has encountered some problems after
changing any new parameters of service data and other
parameters which may be in error. Press the OK button to
erase all services and restore default setting.

Reset Configuration data : Maintain the service data and
reset the configuration data.

Reset Service data : Maintain configuration data and reset the
service data.

System restore to stored position : Restore the stored values
including service data and system parameters. Press the OK
button to restore all data.

Store system data : If you want to use system parameters and service data in the future, this menu
allows you to store current state. Press the OK button to store current state.

Delete store position : Delete stored system data.
40
