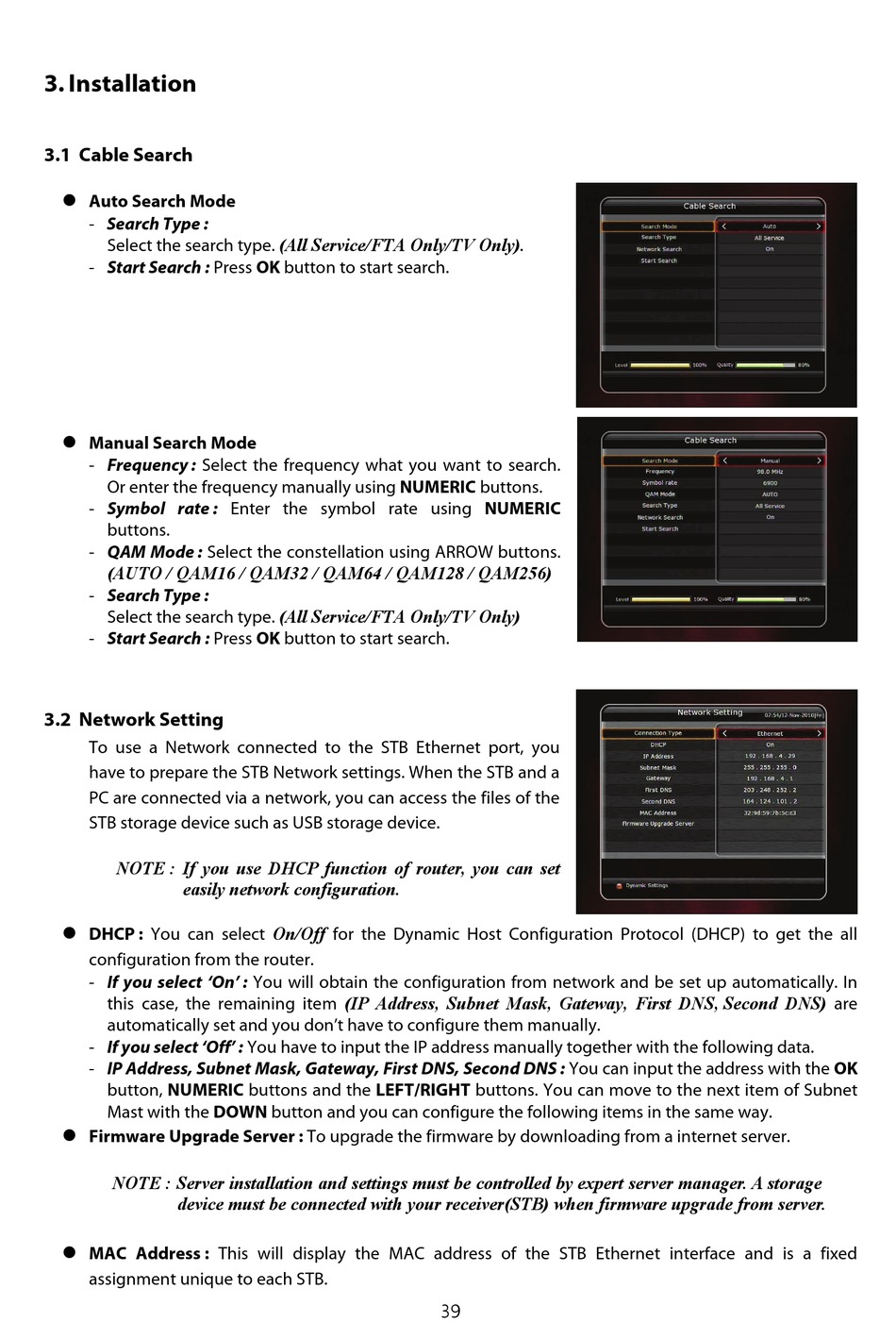

3. Installation

3.1 Cable Search


Auto Search Mode
- Search Type :
Select the search type. (All Service/FTA Only/TV Only).
- Start Search : Press OK button to start search.

Manual Search Mode
- Frequency : Select the frequency what you want to search.
Or enter the frequency manually using NUMERIC buttons.
- Symbol rate : Enter the symbol rate using NUMERIC
buttons.
- QAM Mode : Select the constellation using ARROW buttons.
(AUTO / QAM16 / QAM32 / QAM64 / QAM128 / QAM256)
- Search Type :
Select the search type. (All Service/FTA Only/TV Only)
- Start Search : Press OK button to start search.

3.2 Network Setting

To use a Network connected to the STB Ethernet port, you
have to prepare the STB Network settings. When the STB and a
PC are connected via a network, you can access the files of the
STB storage device such as USB storage device.
NOTE : If you use DHCP function of router, you can set
easily network configuration.
DHCP : You can select On/Off for the Dynamic Host Configuration Protocol (DHCP) to get the all

configuration from the router.
- If you select 'On' : You will obtain the configuration from network and be set up automatically. In
this case, the remaining item (IP Address, Subnet Mask, Gateway, First DNS, Second DNS) are
automatically set and you don't have to configure them manually.
- If you select 'Off' : You have to input the IP address manually together with the following data.
- IP Address, Subnet Mask, Gateway, First DNS, Second DNS : You can input the address with the OK
button, NUMERIC buttons and the LEFT/RIGHT buttons. You can move to the next item of Subnet
Mast with the DOWN button and you can configure the following items in the same way.

Firmware Upgrade Server : To upgrade the firmware by downloading from a internet server.
NOTE : Server installation and settings must be controlled by expert server manager. A storage
device must be connected with your receiver(STB) when firmware upgrade from server.

MAC Address : This will display the MAC address of the STB Ethernet interface and is a fixed
assignment unique to each STB.
