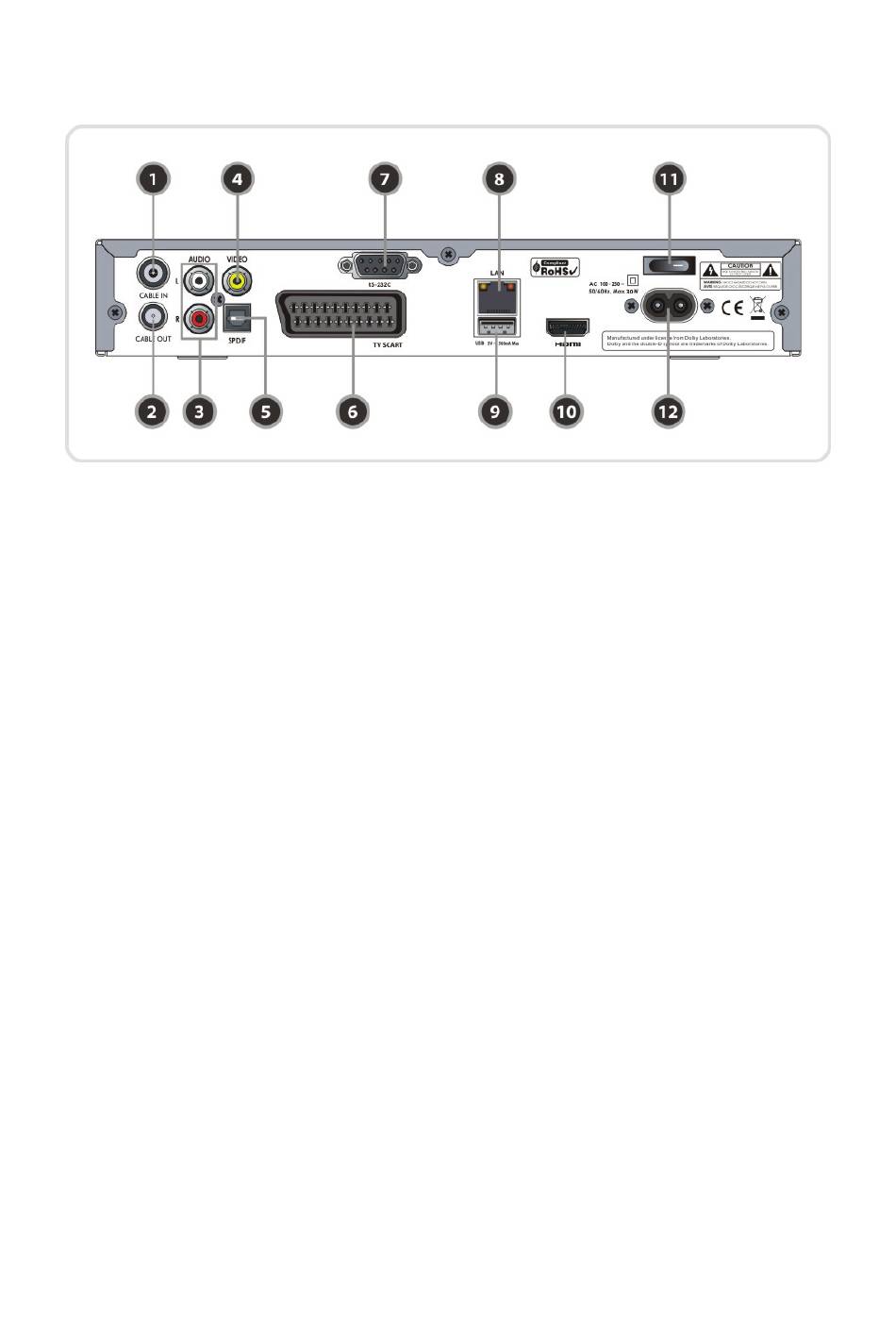

2. Rear Panel Configuration

1. CABLE IN : Use to connect a CATV antenna.
2. CABLE OUT : Use it when connecting to RF input on your TV or VCR.
3. AUDIO L/R : Connects to the TV or VCR using a RCA cable. (Stereo audio output / White, Red)
4. VIDEO : Connects to the TV or VCR using a RCA cable. (Composite video output / Yellow)
5. SPDIF : Connects to the audio system using a S/PDIF cable. (digital audio)
6. TV SCART : Connects to the TV input using a TV SCART cable.
7. RS-232C : Serial port for firmware update and data transfer.
8. Ethernet : Local area network port for direct computer connection.
9. USB : Use it when connecting to external USB storage device.
10. HDMI : Connects to the TV by using a HDMI cable for the best quality picture and audio.
11. A/C Switch : Power switch
12. A/C power cable socket : Connects to A/C power cord.
