Elica Wizard Montage- Und Gebrauchsanweisung Seite 35

en
Installation instructions
6
5
5
4
4
5a
8
3
9
10
2
1
7
2
11

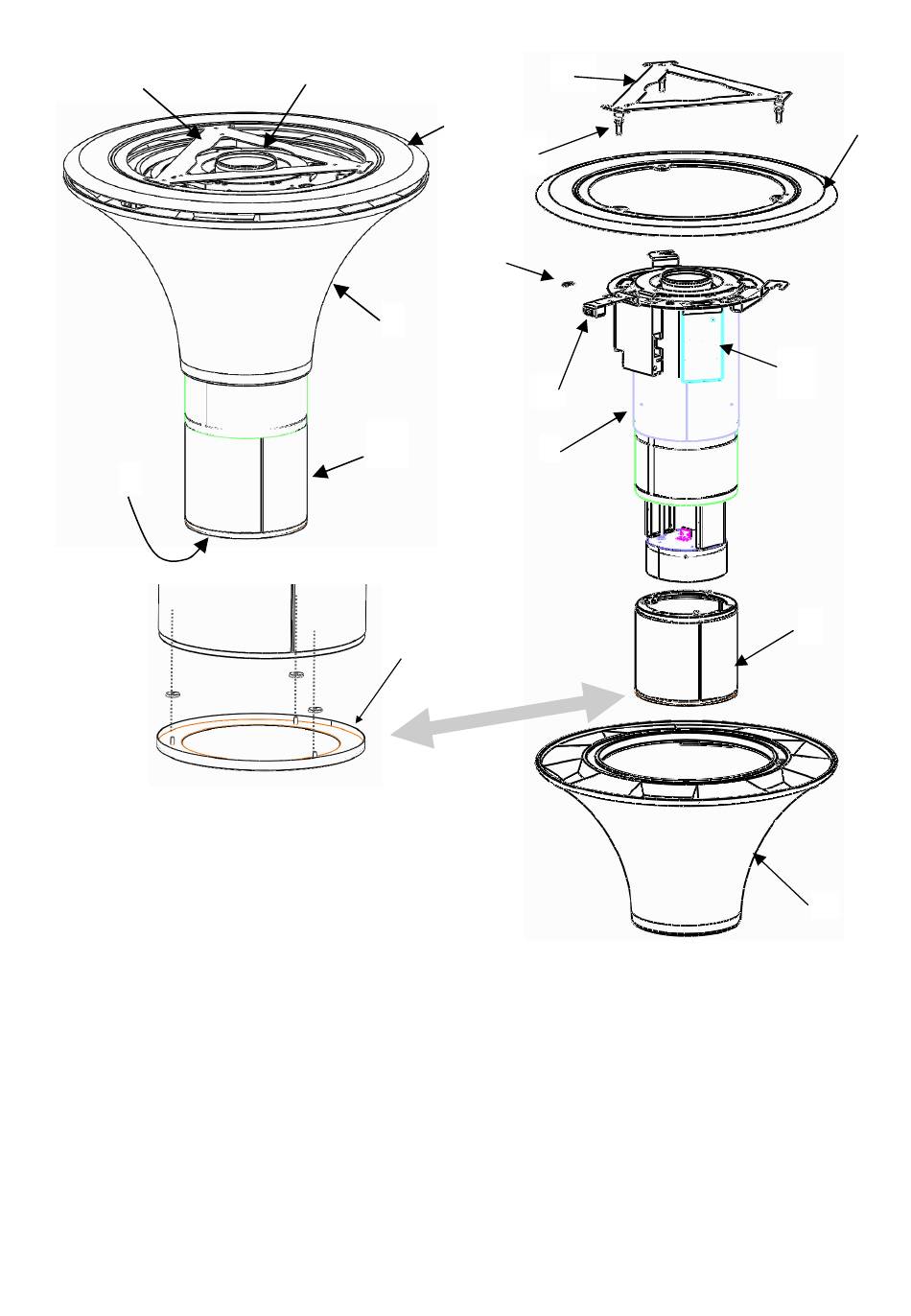

1: Hood body with internal blower motor +
drive motor
2: Metal filter with bayonet fitting
3: Plastic carcass 3
4: Decorative ceiling panel
5: Ceiling flange
Abb. b
5a. Snap-on bolts
6: Connecting piece DN 150
7: LED lighting
8: Anti-twist mechanism
9: Control unit
10: Main switch
11: Glass
12: Electric connecting cable, loose
13: Radio remote control
35
