Bernstein T640 Pro Gebrauchsanleitung Seite 26

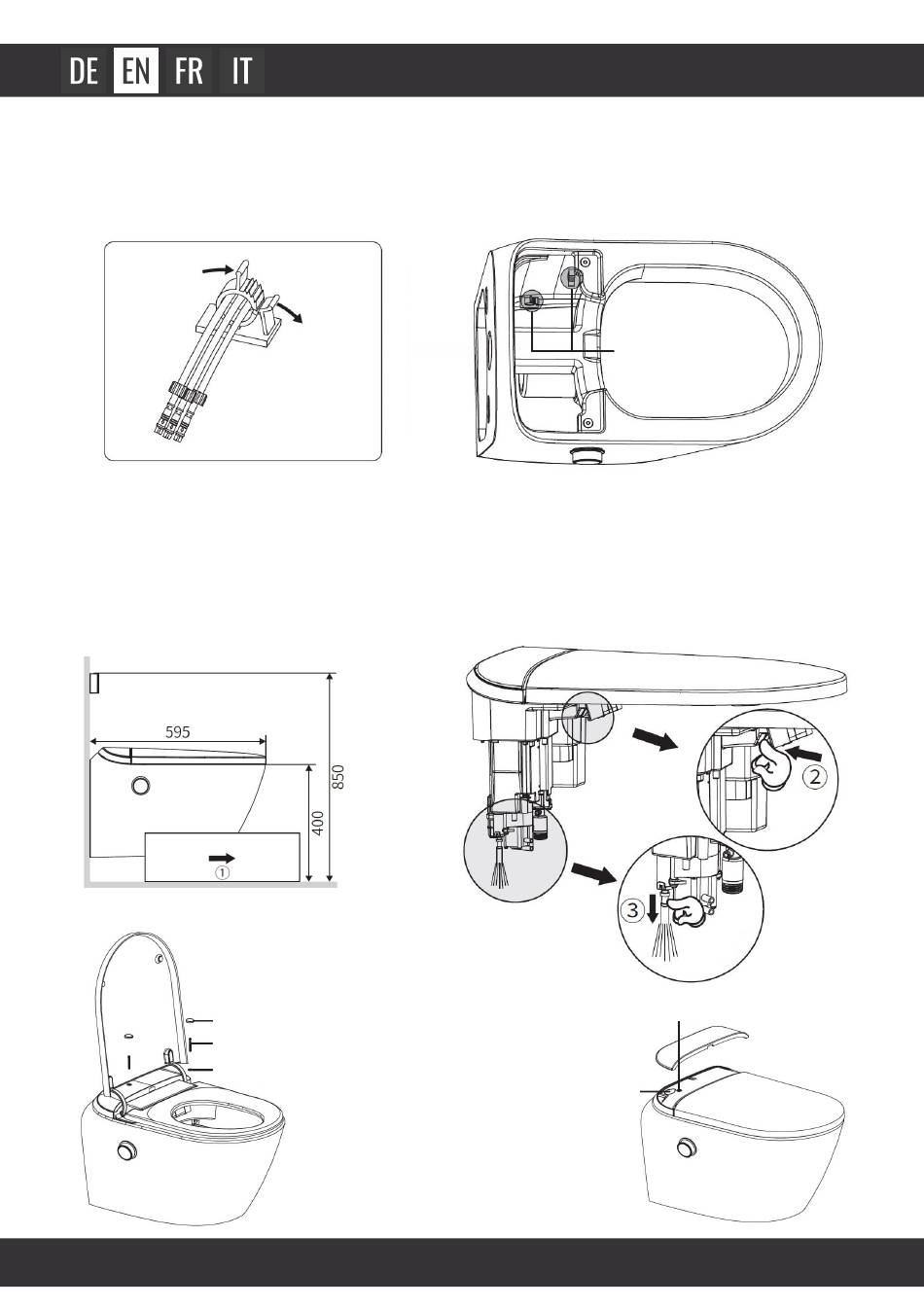

INSTALLATION INSTRUCTIONS 6
6. After connecting the button leads, arrange them and insert them into the wire clip. Then press and hold the wire clip
in the closing direction indicated by the arrow. If you need to If you need to remove the wire, press the wire clip in
the opening direction indicated by the arrow.
Close
INSTALLATION INSTRUCTIONS 7
7. Fix the seat on the ceramic, tighten it with the fixing screws and put on the cover caps. After installation, remove
the mounting block in the direction of the arrow (1). The remote control is placed at a distance of approx. 850 mm
from the floor, which is easy for users to reach. If the unit is not in use for a long time, press in the direction of the
arrow (2) to drain the residual water in the pipe. Before replacement or maintenance, please pull down according
to the direction of the arrow (3) and drain the residual water first.
Cover cap
Screw
Gasket
26
BERNSTEIN SHOWER-WC T640 Pro
Open
Wire clips for fixation
Standby/Descaling button
Filling port
