SHOWER-WC T640 Pro

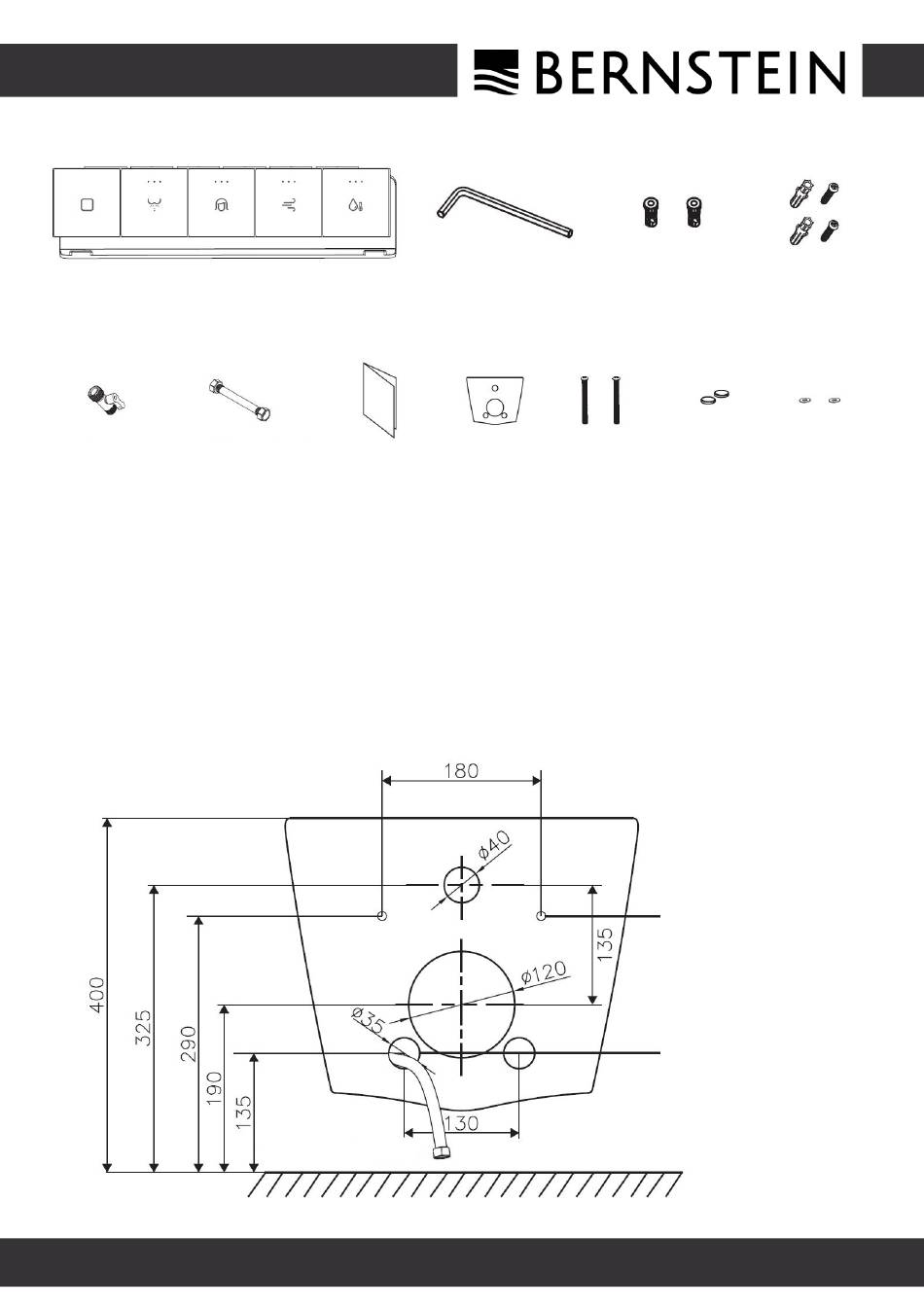

SPARE PARTS LIST

Remote control assembly
Ball valve Double ended
Water inlet pipe
INSTALLATION INSTRUCTIONS 2
2. Place the Toilet mat on your finished wall in the designated position as shown. Align the mat with the flush opening,
the waste water connection and the prepared mounting threaded rods of the shower toilet and first run the water
outlet pipe in front of the installation.
Hexagon wrench
Instruction Toilet mat
manual
Water outlet pipe
Fixing pins
2 x
Screw Covers
2 x 2 x
Installation hole
Water outlet pipe hole
Expansion
screw set
2 x
Gaskets
2 x
23
