Instruction Manual ESSG
___________________________________________________________________________
2. Labels
On the cutting head there is a label with the type specification, the max. approved operating
pressure, the max. cutting diameter, the notification of the matching pump, the symbol with
the notification of the nominal voltage range and the company logo of the manufacturer.
Beyond this there is a serial number on the cutting head consisting of the year of
construction (first 2 figures) and the batch # (last 4 figures).
Schneidkopf/cutting head:
max. Betriebsdruck/~pressure: 625 bar
max. Schneid-/cutting ∅:
Antriebsaggregat/drive unit:
Baujahr/year of construction:
Keine stahlbewehrten Kabel schneiden!
Do not cut reinforced cables!
This pump is provided with the following decals:
Antriebsaggregat/drive unit:
Akku/Battery:
max. Betriebsdruck/pressure:
zugehörige Schneidköpfe/
corresponding heads:
Nicht im Regen verwenden/Do not operate in rain!
The serial number of the pump is located on the pump cylinder. In the serial # there is a date
code consisting of 2 letters stating month and year of manufacturing. YK e.g. stands for
October 2005. The code is available upon request.
Insulated hose:
Batch No XXX Europower ( CEJN ) 852 DN4 Q .. WP 700 BP 2800 BAR
Batch No.xx
Europower or CEJN
852
DN4
.Q..
W.P. 700 BAR
BP 2800 BAR
Marking on the fittings of the insulating hose (with markings):
with:
- Manufacturer-Logo
- Month and year of assembly
- Double-triangel
- max. operating pressure
(the pressure of 625 bar will not be exceeded during operation)
All manuals and user guides at all-guides.com
SSK85/3
85 mm
ESSG
2006
ESSG
RA4
625 bar
SSK85/3
SSK90/2
SSK120/2
produktion serial number
manufacturer of the hose
type of hose
nominal width
quarter and Year of production
max. approved operating pressure of the hose 700 BAR
bursting pressure 2800bar

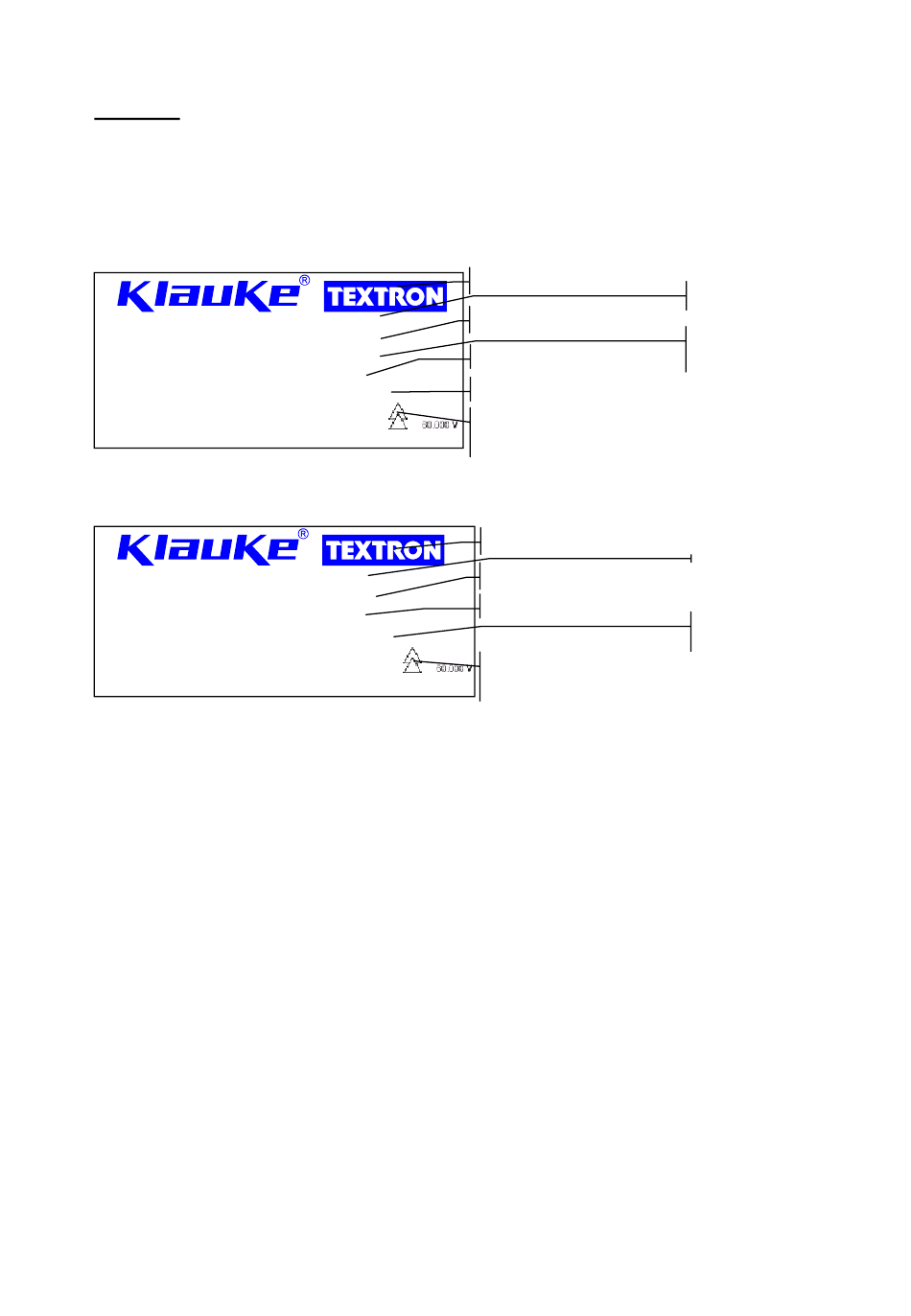

Logo and/or company name
max. operating pressure
Type specification - pump
Year the head is built
Tools with this sign can be operated on or near live
lines with up to 60 kV.
Logo and/or company name
Battery to be used with the unit
max. operating pressure
Tools with this sign can be operated on or near live
lines with up to 60 kV.
page 18
Type specification
max. cable-∅ to be
cut with this tool
Type specification
Type specification
– cutting heads
