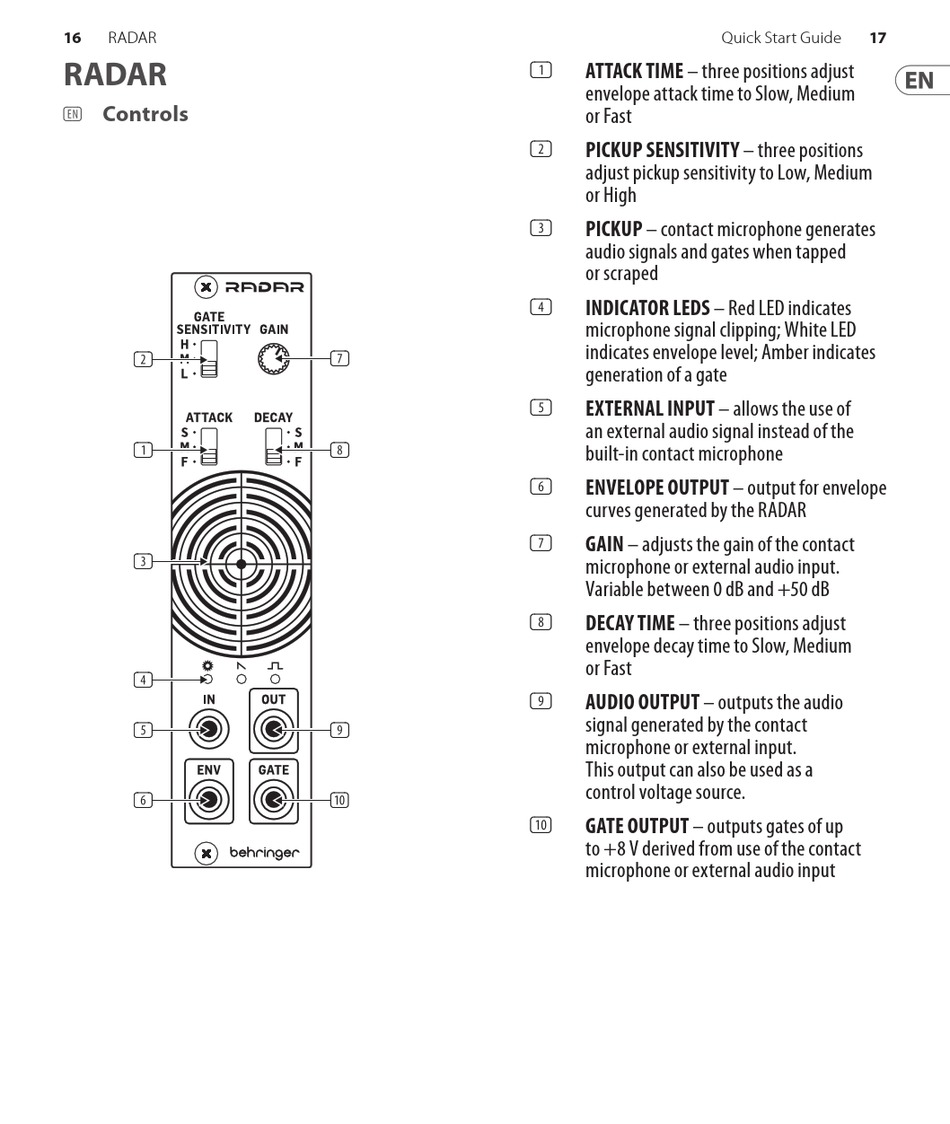

RADAR
RADAR
Controls
(EN)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
ATTACK TIME – three positions adjust
(1)
envelope attack time to Slow, Medium
or Fast
PICKUP SENSITIVITY – three positions
(2)
adjust pickup sensitivity to Low, Medium
or High
PICKUP – contact microphone generates
(3)
audio signals and gates when tapped
or scraped
INDICATOR LEDS – Red LED indicates
(4)
microphone signal clipping; White LED
indicates envelope level; Amber indicates
generation of a gate
EXTERNAL INPUT – allows the use of
(5)
an external audio signal instead of the
built-in contact microphone
ENVELOPE OUTPUT – output for envelope
(6)
curves generated by the RADAR
GAIN – adjusts the gain of the contact
(7)
microphone or external audio input.
Variable between 0 dB and +50 dB
DECAY TIME – three positions adjust
(8)
envelope decay time to Slow, Medium
or Fast
AUDIO OUTPUT – outputs the audio
(9)
signal generated by the contact
microphone or external input.
This output can also be used as a
control voltage source.
GATE OUTPUT – outputs gates of up
(10)
to +8 V derived from use of the contact
microphone or external audio input
