Tx-1, Tx-5 and Tx-10 transmitters
1
3
5
6
7
10
15
16
17
18
11
2
4
9
12 13 14 19
22
8

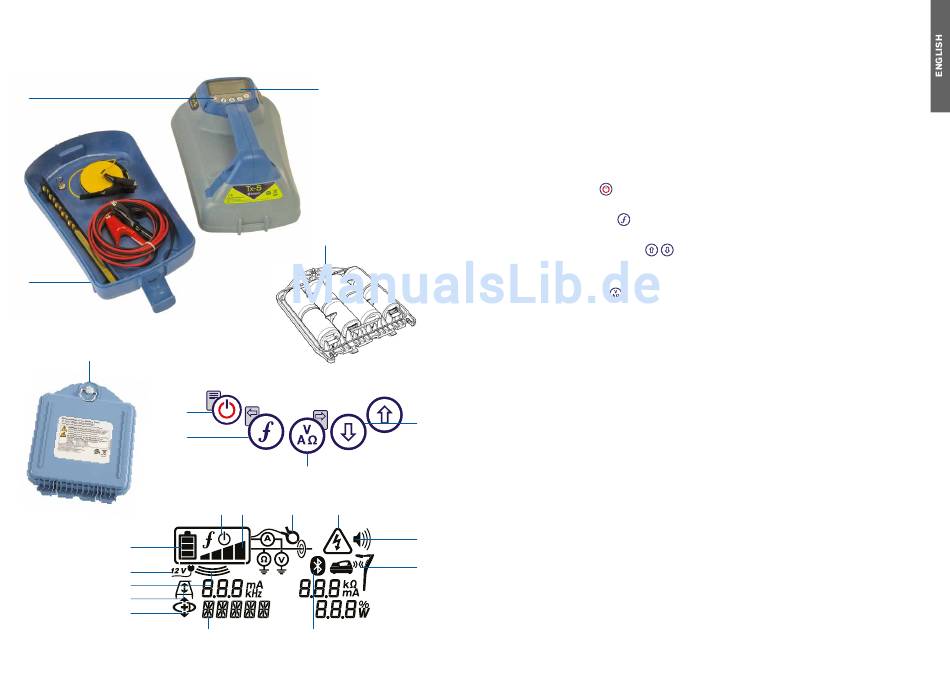

Transmitter features
1. Keypad.
2. LCD.
3. Removable accessory tray.
4. D-cell battery tray.
5. Rechargeable battery pack
(Optional).
Transmitter keypad
6. Power key
and off. Opens the transmitter menu.
7. Frequency key
Menu navigation key.
8. Up and down arrows
the output signal. Scrolls through the
menu options.
9. Measure key
Used to take voltage and impedance
measurements.
8
20
21
Transmitter screen icons
10. Battery icon: Indicates the battery level.
11. Alphanumeric description of selected
operation mode.
12. Standby icon: Appears when the
transmitter is in Standby Mode.
13. Output level: Displays transmitter
output power.
14. Clamp icon: Indicates when a clamp or
other plug is connected.
: Switches the unit on
15. DC icon: Appears when the transmitter
is powered from a DC source.
: Selects frequency.
16. Induction indicator: Appears when the
transmitter is in Induction Mode.
: Adjusts
17. A-Frame (Tx-5 and Tx-10 only):
Indicates when the transmitter is in
Fault-Find Mode.
: Opens a sub menu.
18. CD Mode indicator (Tx-10 only):
Indicates that the transmitter is in
Current Direction Mode.
19. Voltage warning indicator: Indicates
that the transmitter is outputting
potentially hazardous voltage levels.
20. Volume icon: Displays the
volume level.
21. Pairing icon (Tx-5B and Tx-10B only):
Appears when the transmitter and
locator are connected via iLOC.
22. Bluetooth icon (Tx-5B and Tx-10B
only). Indicates status of Bluetooth
connection Flashing icon means pairing
is in progress.
9
