RD8000 locator
1
2
5
6
7
9
22 18 16 17 18
19
20
21
23
24
25 26 27 28 33 29 30
12
10
11
12 13 14
34
GPS active, seeking satellite lock
35
GPS satellite lock acquired
37
3-5 satellites in view
38
32
6-8 satellites in view
36
9-11 satellites in view
12 or more satellites in view
31
6

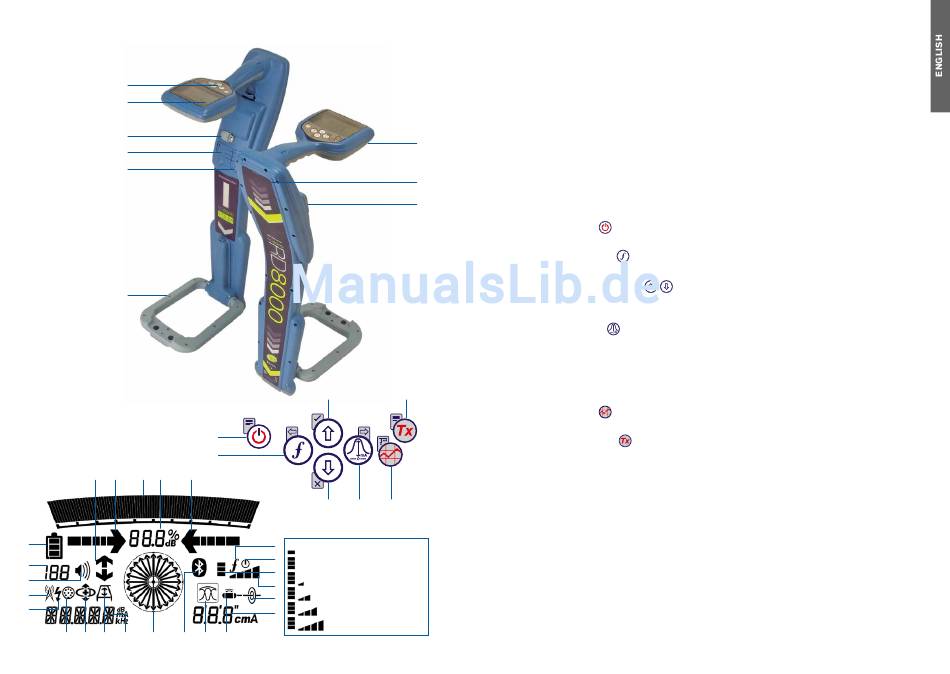

Locator features
1. Keypad
2. LCD with auto backlight
3. Speaker
4. Battery compartment
5. Battery charger connector
3 6. Accessory connector
7. Headphone connector
8. Bluetooth module antenna
8
9. Marker loop antenna
4
Locator keypad
10. Power key
and off. Opens the locator menu.
11. Frequency key
Closes submenu.
12. Up and down arrows
the signal gain. Scrolls through the
menu options.
13. Antenna key
up, toggles peak, combined peak/
null, null, single antenna and guidance
modes. With antenna folded down,
toggles marker and combined (marker/
15
line) modes. Opens a submenu.
14. Graph key
measurements.
15. Transmitter key
commands on iLOC enabled locators
to iLOC enabled transmitters.
Locator screen icons
16. Indicates the signal strength and peak
marker.
17. Signal strength: Numerical indication
of signal strength.
18. Peak / Proportional arrows: Indicates
the location of the line relative to the
locator.
19. Battery icon: Indicates the battery level.
20. Sensitivity and Log number: Displays
the log number momentarily after a
survey log is saved to memory.
21. Volume icon: Displays the volume level.
22. Current Direction arrows.
23. Radio Mode: Indicates when Radio
Mode is active.
24. Power Mode: Indicates when Power
Mode is active.
25. Accessory or Measurement indicators:
Indicate when an accessory is connected
or if measurements are active.
26. CD Mode icon: Indicates when Current
Direction Mode is active.
27. A-Frame icon: Indicates when the
: Switches the unit on
A-Frame is connected.
28. Operating mode indicator.
: Selects frequency.
29. Bluetooth icon: Indicates status of
Bluetooth connection. Flashing icon
: Adjusts means pairing is in progress. Solid icon
indicates an established connection is
active.
: With antenna folded
30. Antenna mode icon: Indicates antenna
selection: Peak, Null, Single and
combined Peak/Null.
31. Sonde icon: Indicates that the signal
source is from a sonde.
32. Line icon: Indicates that the signal
: Saves SurveyCERT
source is from a line.
33. Compass/ Marker mode indicator: Shows
: Sends iLOC ™
the direction of the located cable relative
to the locator. Also used as a graphical
indication for Marker mode active.
34. Tx status: Displays transmitter
connection status.
35. Tx standby: Indicates that the
transmitter is in Standby Mode.
36. Current / depth indicator.
37. GPS Status icon: One bar indicates
that GPS is active. 3 bars indicates
that the GPS has locked to the GPS
satellite system – GPS models only.
38. GPS Signal quality icon: Indicates
the quality of the signal being received
– GPS models only.
