M2_1: M.2 Slot (Key M)

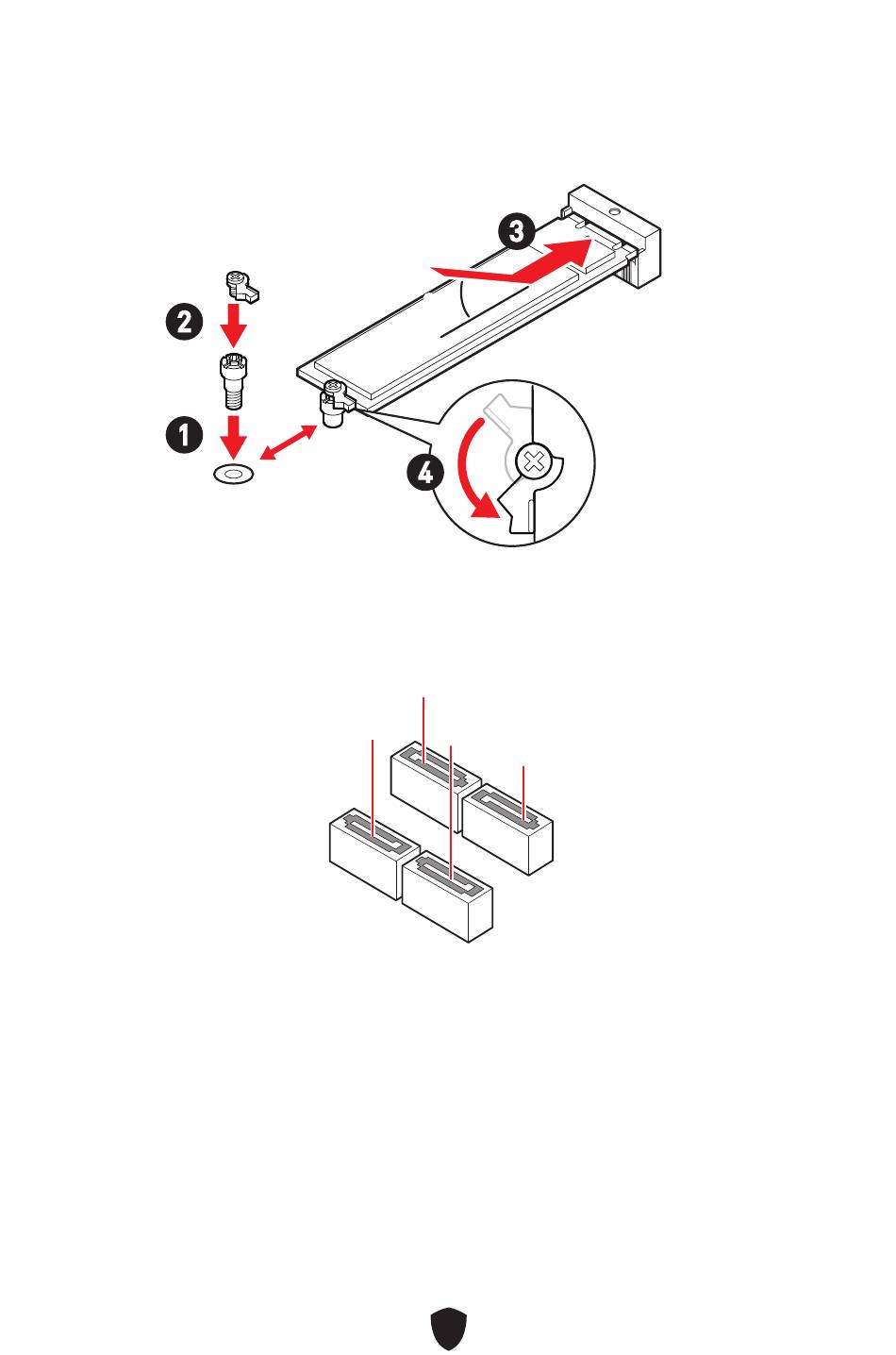

Please install the M.2 solid-state drive (SSD) into the M.2 slot as shown below.
2
1

SATA5~8: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
⚠
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
∙
transmission otherwise.
∙ SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
∙
3
30º 30º
4
SATA6
SATA5
SATA7
SATA8
13
