Explosion Drawing; Ersatzteile / Spare Parts - LRP ZR.21 SPEC.4 PULLSTART Gebrauchsanweisung

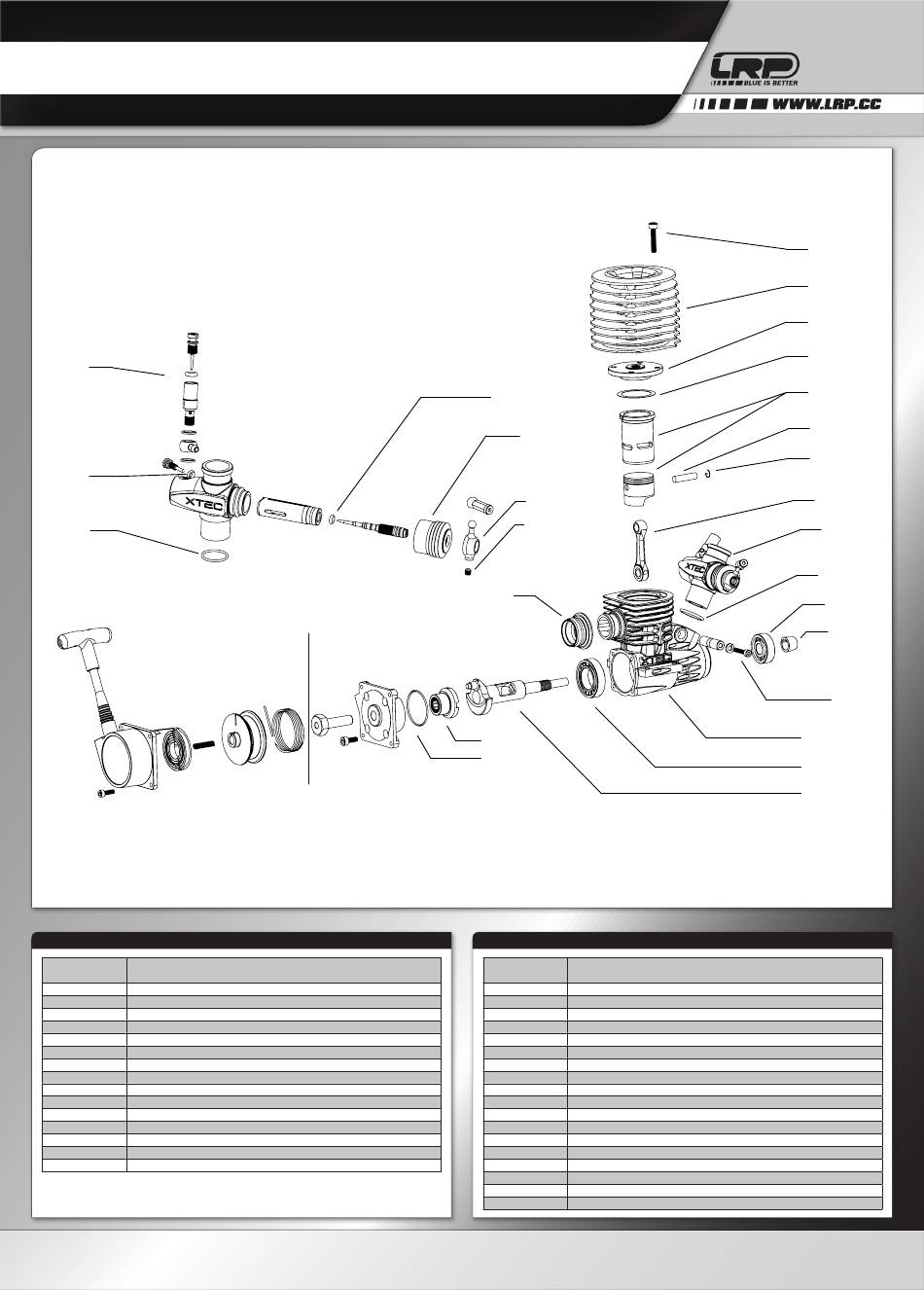

EXPLOSION DRAWING

38592
38592
38592
PULLSTARTER FRONT PARTS
(Linkage) No. 39194

ERSATZTEILE / SPARE PARTS

Best Nr. Artikelbezeichnung
Order No. spare part description
38533 ZR.21 Spec.4 Pullstart - Crankcase
38528 ZR.21 Spec.4 Pullstart - Cylinder Head incl. Screws
38537 ZR.21 Spec.4 Pullstart - Slide Carburetor
39194 ZR.21 Spec.4 Pullstart - Pullstarter Front Parts (Linkage)
38142 ZR.21 Spec.4 Pullstart - Pullstarter Rear Parts (Backplate)
38240 ZR.21 Spec.4 Pullstart - Burn Room incl. head shims
38241 ZR.21 Spec.4 Pullstart - Piston & Sleeve Set
38242 ZR.21 Spec.4 Pullstart - Conrod
38212 ZR.21 Spec.4 Pullstart - Wrist Pin & Clips
38245 ZR.21 Spec.4 Pullstart - Crankshaft
39293 ZR.21 Spec.4 Pullstart - Ball Bearing Front
38243 ZR.21 Spec.4 Pullstart - Ball Bearing Rear
38591 ZR.21 Spec.4 Pullstart - Various Parts Bag
38592 ZR.21 Spec.4 Pullstart - O-Ring Set
38491 ZR.21 Spec.4 Pullstart - Pullstart One-Way Bearing
MA00268 © LRP electronic GmbH 2017
