Systemingetration
46
1
15

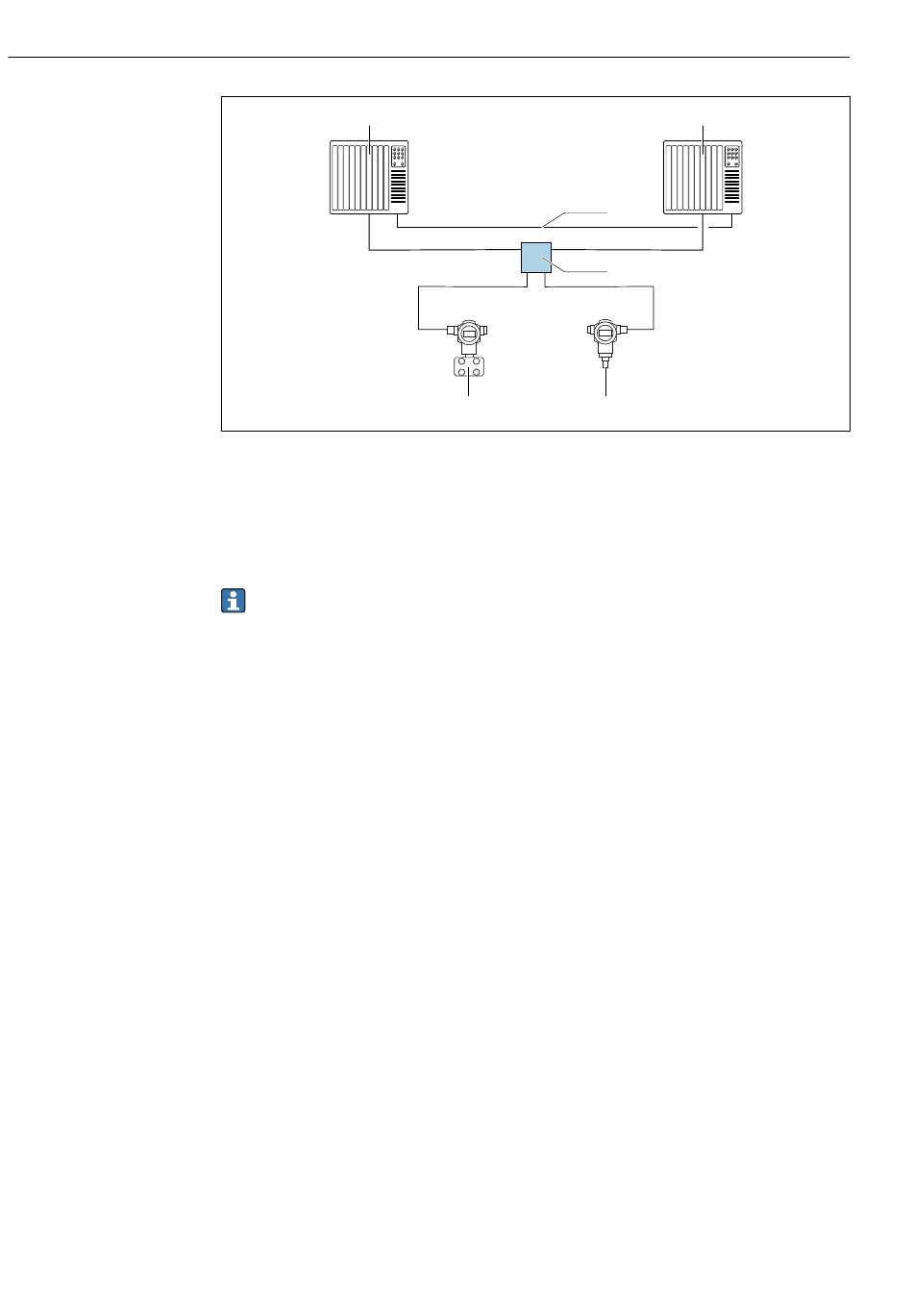

Beispiel für den Aufbau eines redundanten Systems (S2): Sterntopologie
1
Automatisierungssystem 1
2
Synchronisation Automatisierungssysteme
3
Automatisierungssystem 2
4
Ethernet-APL Field Switch
5
Gerät
Alle Geräte im Netzwerk müssen Systemredundanz S2 unterstützen.
Micropilot FMR60B PROFINET mit Ethernet-APL
2
4
5
5
3
A0046154
