Installation Instruction Terminal module for housing F12/F23 Micropilot M, Levelflex M, Prosonic M EA01079F/00/A2/01.13 71224850 71224850 Instruction is valid for the following spare part sets: Order number Original spare part set Usage Additional option 52006197 Terminal module 4-pole, HART, 2-wire...
Seite 2
The spare parts set and Installation Instructions are used to replace a faulty unit with a functioning unit of the same type. Use genuine parts from Endress+Hauser only. Only original spare parts supplied by Endress+Hauser shall be used with the measuring device. Therefore, before use, check whether the spare part set is compatible with the measuring device.
– do not connect in potentially explosive atmospheres. – trained in instrument safety – only connect to Endress+Hauser service devices. – familiar with the individual operation conditions of the devices • Observe the instructions for transporting and returning the device –...
Seite 4

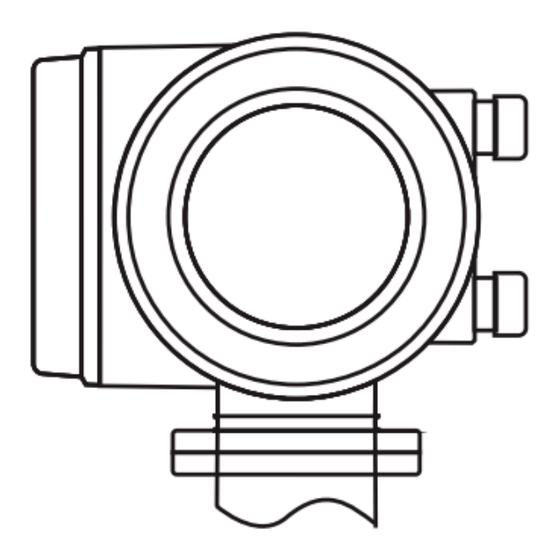

Terminal module for housing F12/F23 Tool List Size 1 M3/M4 Exchange of terminal module at housing F12/F23 in a in a in a M IC E S S O rd er C S er o d e: P IL .- N S E R o .: M es...
Seite 5
Analyse Einbauanleitung Klemmenmodul - Gehäuse F12/F23 Micropilot M, Levelflex M, Prosonic M EA01079F/00/A2/01.13 71224850 Die Einbauanleitung ist für folgende Ersatzteilsets gültig: Bestellnummer Original Ersatzteil-Set Verwendung Zusatzausstattung 52006197 Klemmenmodul 4-polig, HART, 2-Draht Micropilot M, Levelflex M ohne GL/ABS/NK Schiffbauzulassung 52012156 Klemmenmodul 4-polig, PA/FF...
Seite 6
Ersatzteilset und Einbauanleitung dienen dazu, eine defekte Einheit gegen eine funktionierende Einheit des gleichen Typs zu ersetzen. Es dürfen nur Originalteile von Endress+Hauser verwendet werden. Grundsätzlich dürfen nur Ersatzteilsets verwendet werden, die von Endress+Hauser für das Messgerät vorgesehen sind. Vor der Verwendung ist deshalb zu überprüfen, ob das Ersatzteilset zum Messgerät passt.
• Die in der Betriebsanleitung aufgeführten Hinweise zum Transport – Mit den jeweiligen Einsatzbedingungen der Geräte vertraut. und zur Rücksendung beachten. – Bei Ex-zertifizierten Messgeräten zusätzlich im Explosionsschutz • Bei Fragen kontaktieren Sie bitte Ihre zuständige Endress+Hauser ausgebildet. Serviceorganisation. Endress + Hauser...
Seite 8
Klemmenmodul - Gehäuse F12/F23 Werkzeugliste Größe 1 M3/M4 Austausch eines Klemmenmoduls beim Gehäuse F12/F23 in a in a in a M IC E S S O rd er C S er o d e: P IL .- N S E R o .: M es sb er...
