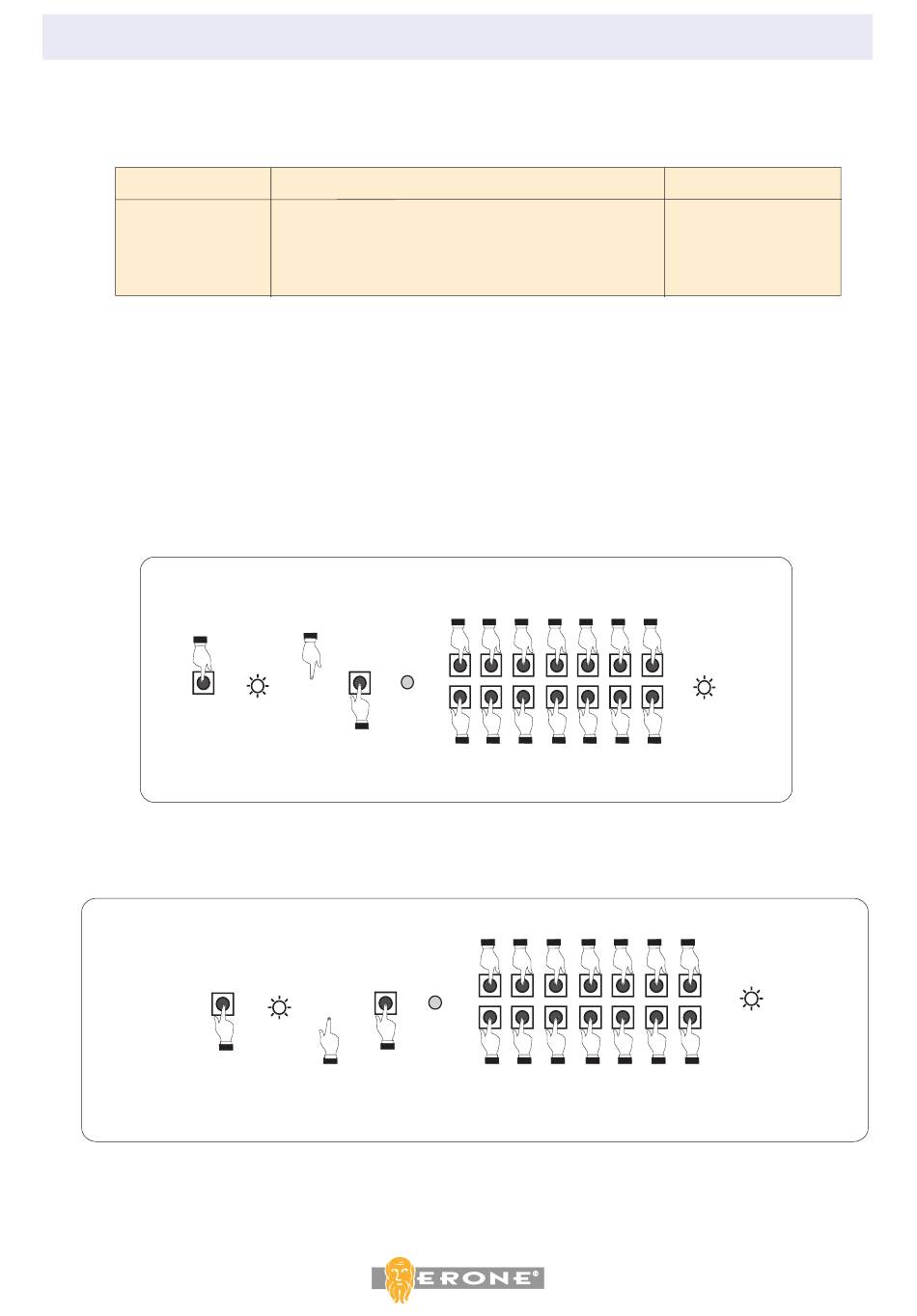

8 - RELAY TIMING SETTINGS
8.1 Timered mode setting procedure
Each relay can be set in timered mode by means of a sequence of 7 pressures of the push buttons PR and PV.
The weight of PR is "0" , the weight of PV is "1".
The release time can be calculated with the following table:
Button activations
Seconds
Tab. 5
Seconds
Minutes
Minutes
That means that if the release time to set is 2 seconds, the sequence of pressures has to be :
PR - PV - PR - PR - PR -PR - PR
The times associated at each number of the above table can be summed.
EXAMPLES :
Release time of 12 sec : Sequence : PR - PR - PV - PV -PR - PR - PR.
Release time of 40 sec : Sequence : PR - PR - PV - PR - PR - PV - PR.
Release time of 6 min : Sequence : PV - PV - PR - PR -PR - PR - PV.
8.1.1
Procedure for Red Relay RR
The following procedure has to be followed for the release time setting on red relay RR
Keep PR pressed
down for 4 sec until
the led LR turn on.
8.1.2
Procedure for Green Relay RV
The following procedure has to be followed for the release time setting on green relay RV
Keep PV pressed
down for 4 sec
until the led LV
turns on.
All manuals and user guides at all-guides.com
1°
2°
1
2
10
20
2
4
20
20
LR turns off
LR remains lit
Release
PR
Within 2 sec
press PR
Release
PV
LV remains lit
Within 2 sec
press PR
3°
4°
4
8
40
80
8
16
80
160
PR
PR
PR
PR
PR
PV
PV
PV
PV
Within 2 sec press down PV or PR for the right sequence
Fig.7
PR
PR
PR
LV turns off
PV
PV
PV
Within 2 sec press down PV or PR for the right sequence
Fig.11
T H E S M A R T L I V I N G
5°
6°
16
PR
160
PV
32
PR
320
PV
PR
PR
LR flashes
quickly
PV
PV
PV
PR
PR
PR
PR
LV flashes
quickly
PV
PV
PV
PV
7°
PR
PR
PV
PV
Pag. 18
