4.2 - Fixing
Remove the cover of the receiver; fix the box in each
corner by using the screws and the plugs
supplied.

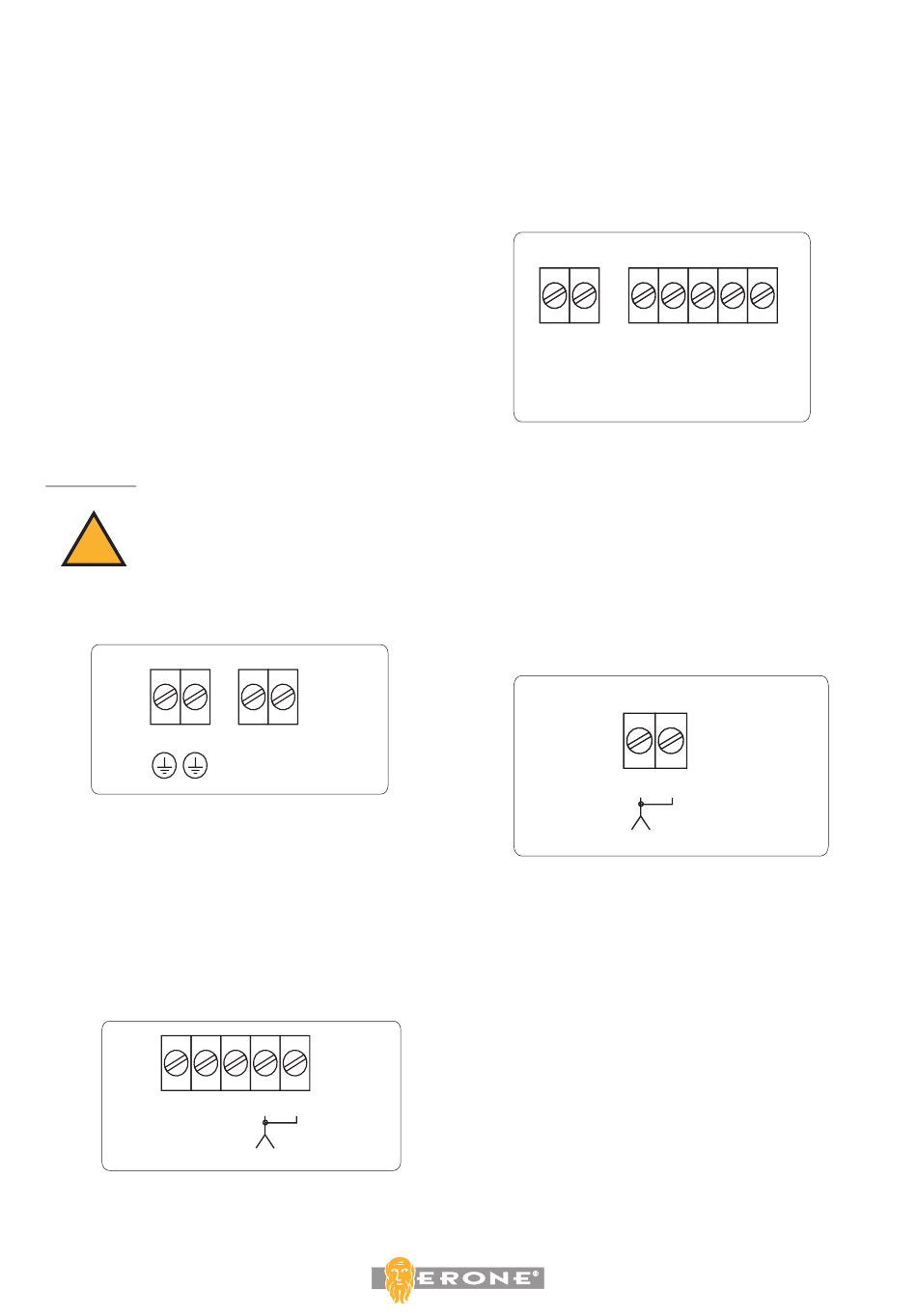

4.3 - Connections
The connections are different depending on the power
supply of the receiver.
1A- Connect the power supply 230 Vac to the
terminal blocks1,3 and 4(fig. 1):
terminal 1 = PE Ground
terminal 3 = N neutral
terminal 4 = Ph Phase
ATTENTION :
Connect the appliance to the
electric plant of the building
through a magnetothermic
switch with contact distance of
!
at least 3 mm.
1
2
Fig.1
1b - Connect the power supply 12 / 24 Vac/dc to
the terminal blocks 10, 11, 12. (fig. 2):
Terminal 10 = + 24 Vac/dc
terminal 11 = + 12 Vac/dc
terminal 12 = 0
10 11
24
12 0
+AC-
Fig.2
All manuals and user guides at all-guides.com
3
4
Ph
N
12
13
14
2 - Connect the loads to the relay outputs according
the following table (fig. 3):
terminal 5 = C relay green (RV)
terminal 6 = NO relay green (RV)
terminal 7 = NC relay red (RR)
terminal 8 = C relay red (RR)
terminal 9 = NO relay red (RR)
3
4
3 -Connect the antenna as follows (fig. 4):
- if you connect an antenna ( not provided ) fix the wire
to the terminal 13 and the shield to the terminal 14;
- if you use a piece of wire ( 16,5 cm ) connect it to the
terminal 13.
4.4 - Fuse - Connect the power supply
The fuse F1 ( 315 mA) is present only on the model
SEL2641R433C2V, and protects the electronic card.
T H E S M A R T L I V I N G
7
8
9
5
6
C
NO
NC C
NO
Relay RV
Relay RR
Fig.3
13 14
Antenna
Fig.4
