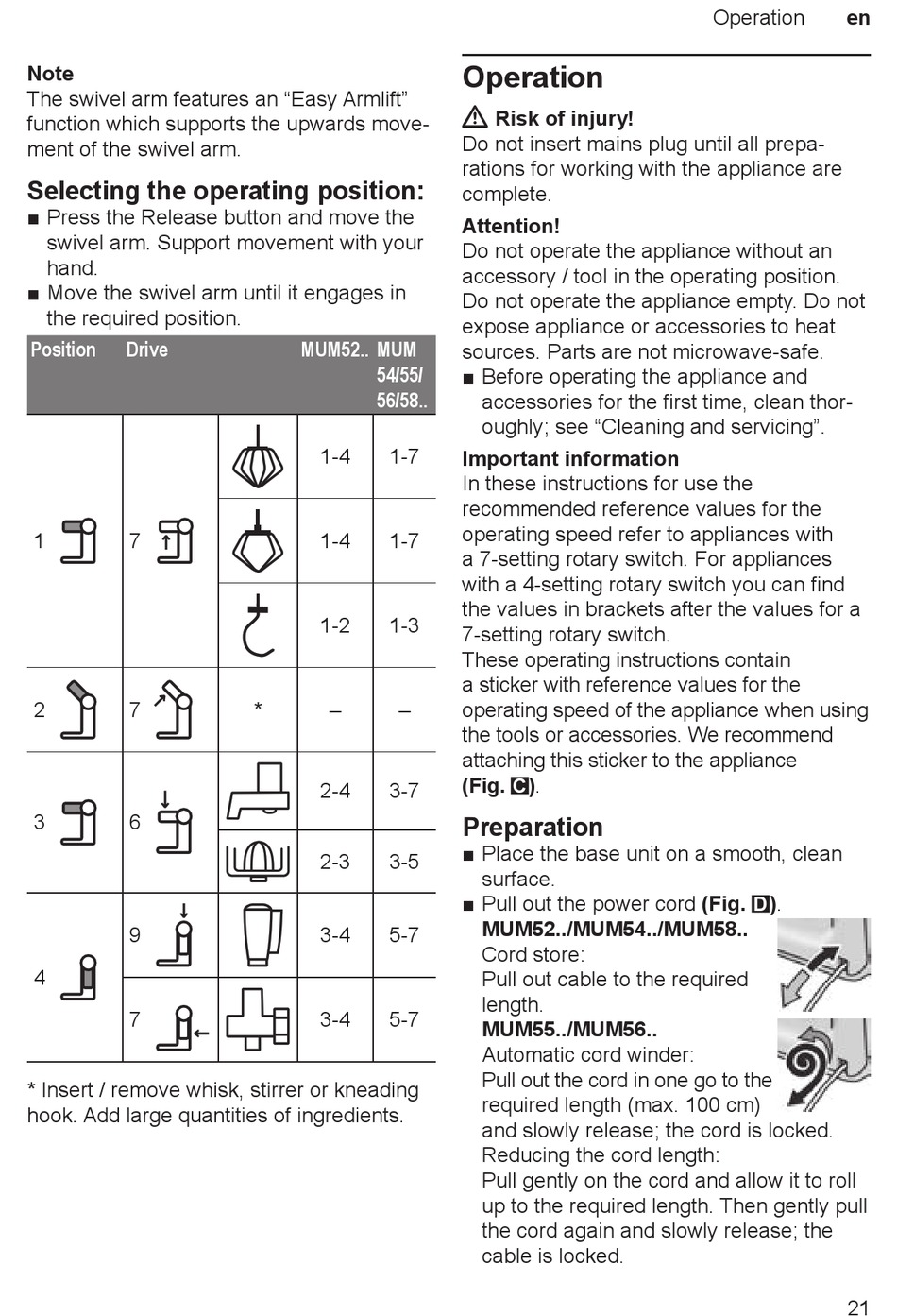

Operation - Bosch MUM58234 Gebrauchsanleitung

Note
The swivel arm features an "Easy Armlift"
function which supports the upwards move-
ment of the swivel arm.
Selecting the operating position:
■ Press the Release button and move the
swivel arm. Support movement with your
hand.
■ Move the swivel arm until it engages in
the required position.
Position Drive
1 7
2 7
3 6
9
4
7
* Insert / remove whisk, stirrer or kneading
hook. Add large quantities of ingredients.
MUM52.. MUM
54/55/
56/58..
1-4 1-7
1-4 1-7
1-2 1-3
* – –
2-4 3-7
2-3 3-5
3-4 5-7
3-4 5-7

Operation

W Risk of injury!
Do not insert mains plug until all prepa-
rations for working with the appliance are
complete.
Attention!
Do not operate the appliance without an
accessory / tool in the operating position.
Do not operate the appliance empty. Do not
expose appliance or accessories to heat
sources. Parts are not microwave-safe.
■ Before operating the appliance and
accessories for the first time, clean thor-
oughly; see "Cleaning and servicing".
Important information
In these instructions for use the
recommended reference values for the
operating speed refer to appliances with
a 7-setting rotary switch. For appliances
with a 4-setting rotary switch you can find
the values in brackets after the values for a
7-setting rotary switch.
These operating instructions contain
a sticker with reference values for the
operating speed of the appliance when using
the tools or accessories. We recommend
attaching this sticker to the appliance
(Fig. C).
Preparation
■ Place the base unit on a smooth, clean
surface.
■ Pull out the power cord (Fig. D).
MUM52../MUM54../MUM58..
Cord store:
Pull out cable to the required
length.
MUM55../MUM56..
Automatic cord winder:
Pull out the cord in one go to the
required length (max. 100 cm)
and slowly release; the cord is locked.
Reducing the cord length:
Pull gently on the cord and allow it to roll
up to the required length. Then gently pull
the cord again and slowly release; the
cable is locked.
Operation en
