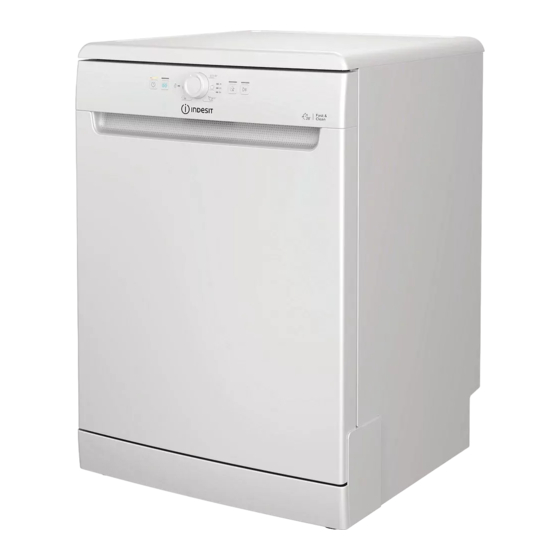

Indesit D2F HK26 Kurzanleitung

Quick Guide
THANK YOU FOR BUYING AN INDESIT PRODUCT.
In order to receive a more complete assistance, please register
your appliance on: www.indesit.com/register
Before using the appliance carefully read Safety Instructions
guide.
CONTROL PANEL
1
FIRST TIME USE
FILLING THE SALT RESERVOIR
The use of salt prevents the formation of LIMESCALE on the dishes and on
the machine's functional components.
• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
• It is important to set the water hardness.
The salt reservoir is located in the lower part of the dishwasher
(see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL
indicator light in the control panel is lit.
1. Remove the lower rack and unscrew the reservoir cap
(anticlockwise).
2. Only the first time you do this: fill the salt reservoir
with water.
3. Position the funnel (see figure) and fill the salt reservo-
ir right up to its edge (approximately 1 kg); it is not
unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.
Make sure the cap is screwed on tightly, so that no detergent can get into
the container during the wash program (this could damage the water so-
ftener beyond repair).
Whenever you need to add salt, it is mandatory to complete the
procedure before the beginning of the washing cycle to avoid corrosion.
FILLING THE RINSE AID DISPENSER
Rinse aid makes dish DRYING easier. The rinse
aid dispenser A should be filled when when
C
the dark optical indicator on the dispenser
E
door C becomes transparent.
NEVER pour the rinse aid directly into the
D
appliance tub.
A
PROGRAMS TABLE
Program
Eco 50°- Eco program is suitable to clean normally soiled table-
ware, that for this use, it is the most efficient program in terms
1.
of its combined energy and water consumption, and that it is
used to assess compliance with the EU Ecodesign legislation.
Intensive 65° - Program recommended for heavily soiled
2.
crockery, especially suitable for pans and saucepans (not to
be used for delicate items).
Mixed 55° - Mixed soil. For normally soiled dishes with dried
3.
food residues.
Fast&Clean 28' 50° - Program to be used for half load of
4.
lightly-soiled dishes with no dried food residues. Does not
have drying phase.
Pre-Wash - Use to refresh crockery planned to be washed
5.
later. No detergent to be used with this program.
Push&GO 50° - Everyday wash and dry cycle that ensures
6.
great cleaning performance in a short time without the
need to pre-treat dishes.
ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.
Note for Test Laboratories:
For information on comparative EN testing conditions, please send an email to the following address: dw_test_support@whirlpool.com
Pre-treatment of the dishes is not needed before any of the programs.
*) Not all options can be used simultaneously.
**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and
pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor cali-
bration. The sensor calibration can increase program duration up to 20 min.
2 3 6
4 5
Programs description
PLEASE SCAN THE QR CODE ON YOUR
APPLIANCE IN ORDER TO HAVE MORE
DETAILED INFORMATION
7
FILLING THE DETERGENT DISPENSER
To open the detergent dispenser use the opening device D. Introduce the
detergent into the dry dispenser E only. Place the amount of detergent for
pre-washing directly inside the tub.
Usage of detergent not designed for dishwashers may cause malfunc-
tion or damage to the appliance.
WATER SOFTENING SYSTEM
Water softener automatically reduces water hardness, consequently pre-
venting scale buildup on heater, contributing also to better cleaning efficiency.
This system regenerates itself with salt, therefore it is required to refill
salt container when empty.
Frequency of regeneration depends on water hardness level setting - regen-
eration takes place once per 6 Eco cycles with water hardness level set to 3.
Regeneration process starts in final rinse and finishes in drying phase, be-
fore cycle ends.
• Single regeneration consumes: ~3.5L of water;
• Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.
Avaiable
options
-
-
-
1. ON-OFF/Reset button with indicator light
2. Push & Go button with indicator light
3. Salt refill indicator light
4. Program selection knob
5. Delay indicator lights
6. Delay button with indicator light
7. START/Pause button with indicator light / Drain out
Duration
Water
of wash
consumption
program
*)
(litres/cycle)
(h:min) **)
3:35
2:40
2:15
0:28
0:12
1:30
EN
Energy
consumption
(kWh/cycle)
9.5 0.95
18.0 1.60
16.0 1.40
9.0 0.50
4.7 0.01
11.5 1.30
1
