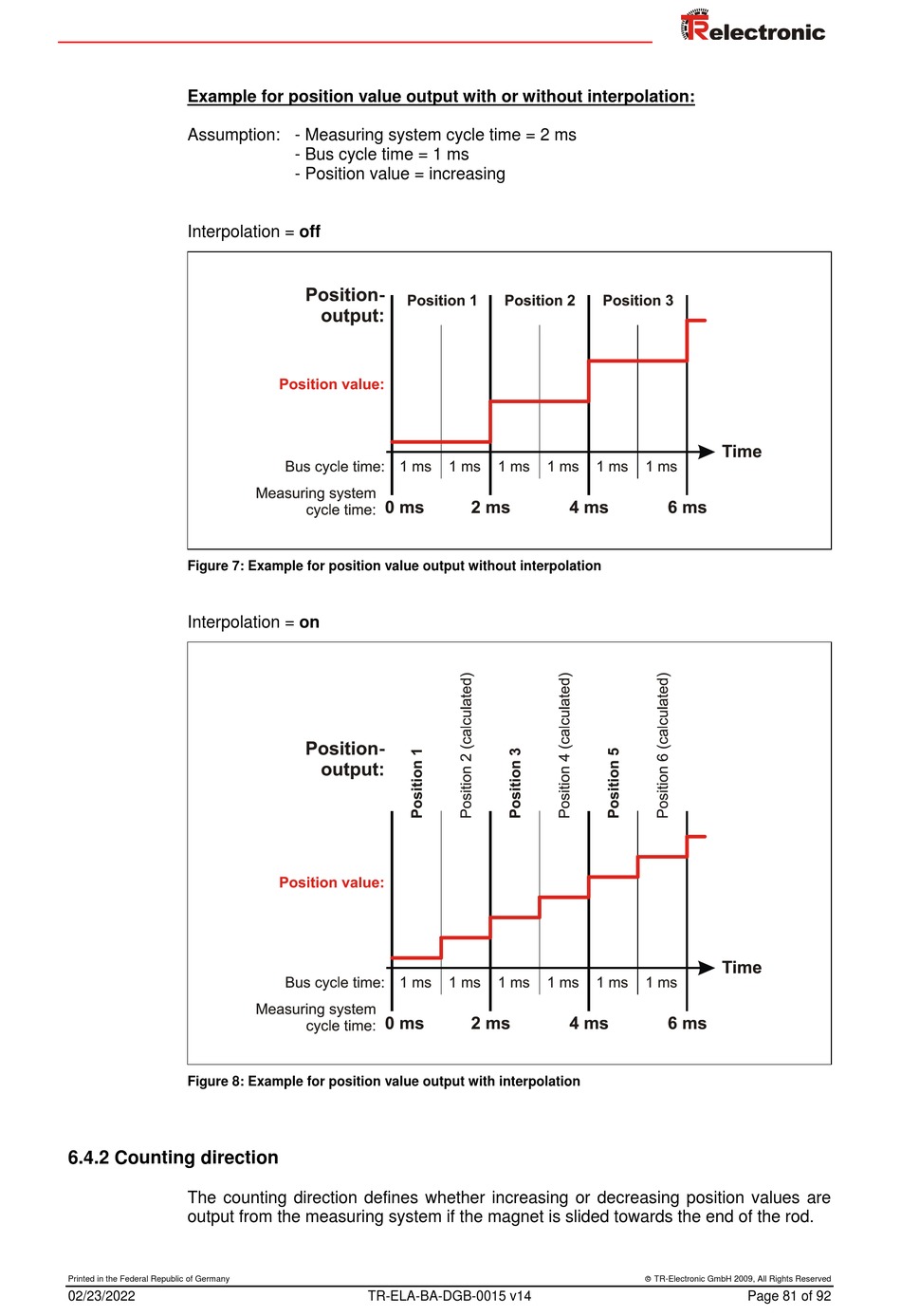

Example for position value output with or without interpolation:
Assumption: - Measuring system cycle time = 2 ms
Interpolation = off
Figure 7: Example for position value output without interpolation
Interpolation = on
Figure 8: Example for position value output with interpolation

6.4.2 Counting direction

The counting direction defines whether increasing or decreasing position values are
output from the measuring system if the magnet is slided towards the end of the rod.
