ALPA MEGArod Bedienungsanleitung Seite 2

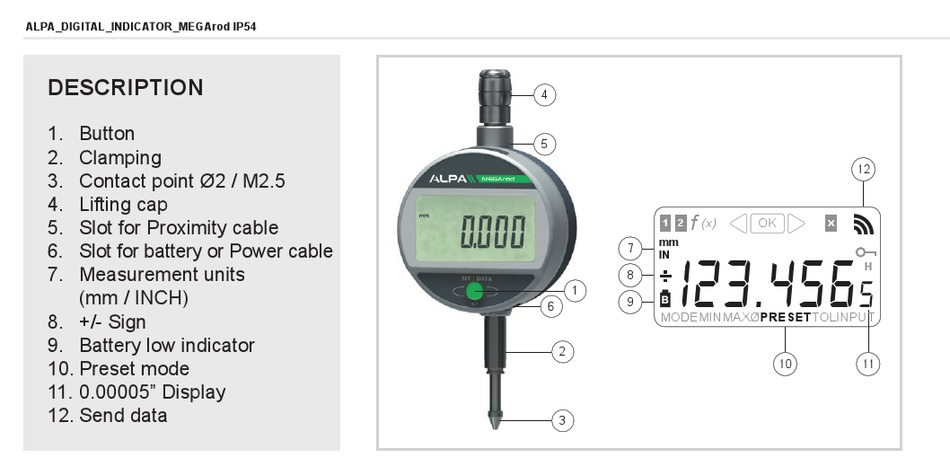

ALPA_DIGITAL_INDICATOR_MEGArod IP54
DESCRIPTION
1. Button
2. Clamping
3. Contact point Ø2 / M2.5
4. Lifting cap
5. Slot for Proximity cable
6. Slot for battery or Power cable
7. Measurement units
(mm / INCH)
8. +/- Sign
9. Battery low indicator
10. Preset mode
11. 0.00005" Display
12. Send data
4
5
f
(x)
1 2
mm
7
IN
123.456
8
1
9
6
MODEMINMAXØPRESETTOLINPUT
2
3
12
OK
x
H
5
10 11
