Avoid bouncing and snagging the wheel, especially
•
when working corners, sharp edges etc. This can
cause loss of control and kickback.
NEVER use tool with wood cutting blades and other
•
sawblades. Such blades when used on a grinder
frequently kick and cause loss of control leading to
personal injury.
CAUTION:
After operation, always switch off the tool and wait
•
until the wheel has come to a complete stop before
putting the tool down.
Grinding and sanding operation
ALWAYS hold the tool firmly with one hand on housing
and the other on the side handle. Turn the tool on and
then apply the wheel or disc to the workpiece.
100 mm (4")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32")
16 mm (5/8")
1. Lock nut
115 mm (4 - 1/2") / 125 mm (5")
Abrasive cut-off wheel
Thickness: Less than 4 mm (5/32")
22.23 mm (7/8")
1. Lock nut
010848
WARNING:
When using an abrasive cut-off / diamond wheel,
•
be sure to use only the special wheel guard
designed for use with cut-off wheels.
NEVER use cut-off wheel for side grinding.
•
All manuals and user guides at all-guides.com
Thickness: 4 mm (5/32") or more
1
2
16 mm (5/8")
3
2. Abrasive cut-off wheel
Thickness: 4 mm (5/32") or more
1
2
22.23 mm (7/8")
3
2. Abrasive cut-off wheel
In general, keep the edge of the wheel or disc at an angle
of about 15 degrees to the workpiece surface.
During the break-in period with a new wheel, do not work
the grinder in the B direction or it will cut into the
workpiece. Once the edge of the wheel has been
rounded off by use, the wheel may be worked in both A
and B direction.
Fig.10
Operation with abrasive cut-off / diamond
wheel (optional accessory)
Fig.11

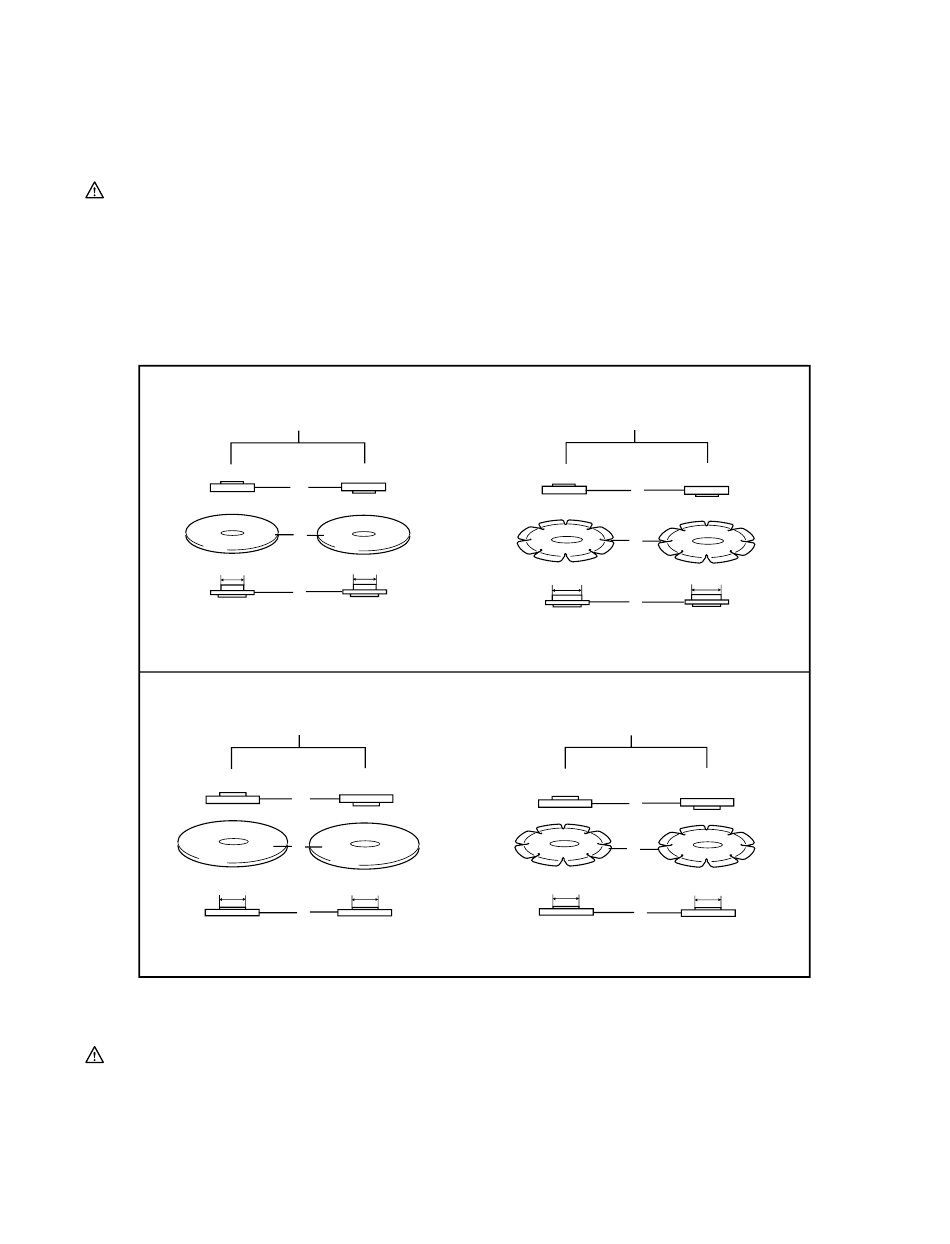

The direction for mounting the lock nut and the inner
flange varies by wheel thickness. Refer to the table
below.
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
1
4
20 mm (13/16")
3
3. Inner flange 4. Diamond wheel
Diamond wheel
Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more
1
4
22.23 mm (7/8")
3
3. Inner flange 4. Diamond wheel
Do not "jam" the wheel or apply excessive pressure.
•
Do not attempt to make an excessive depth of cut.
Overstressing the wheel increases the loading and
susceptibility to twisting or binding of the wheel in
the cut and the possibility of kickback, wheel
breakage and overheating of the motor may occur.
Do not start the cutting operation in the workpiece.
•
Let the wheel reach full speed and carefully enter
into the cut moving the tool forward over the
8
20 mm (13/16")
22.23 mm (7/8")
