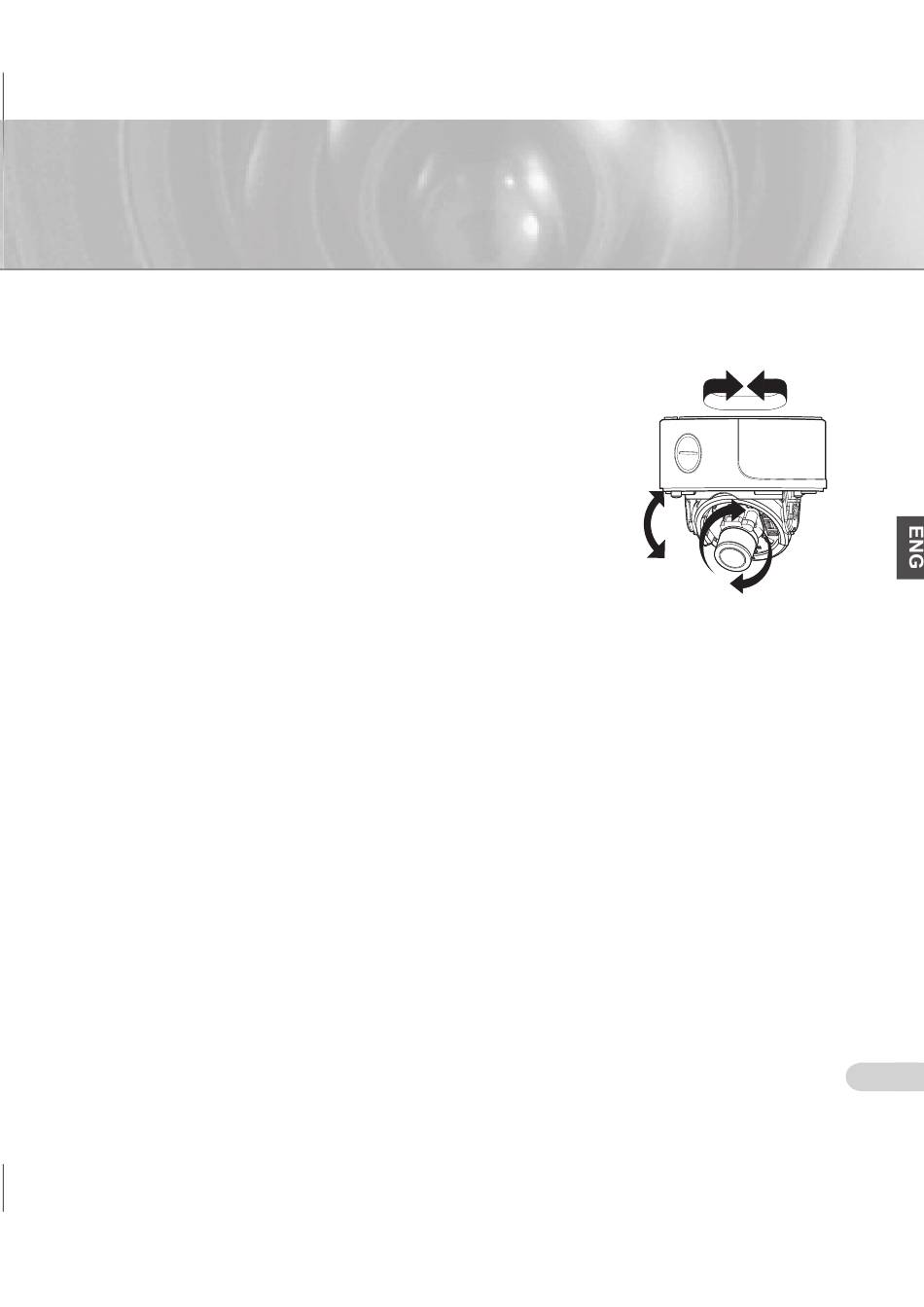

Adjusting the camera direction

❚
Panning
When the camera is fixed on the ceiling, you can
adjust the camera viewing angle. You can rotate
your camera leftward or rightward (Panning), and
can change the slope of your camera upward or
downward (Tilting).
In case of panning, the rotation limit of your camera
is set to 355 degree (100 degree clockwise and 255
degree counterclockwise). The rotation is stopped
Tilting
by the Stopper inside of the camera. For panning
control, first unfasten two screws located on the
bottom and rotate in the direction you want, and then
fasten them to fix the camera.
In case of tilting, you can change the slope of your Lens rotation
camera from zero to 90 degree. However if the slope
angle is under 17 degree, you can encounter a partial image hide problem. To fix the location
after adjusting the tilting angle, use the Tilt fixing screws.
To adjust the focus and zoom of your camera, use the Zoom lever and Focus lever. When you
install the camera on the inclined ceiling or wall, you can rotate the camera lens to see a correct
direction image.
17
