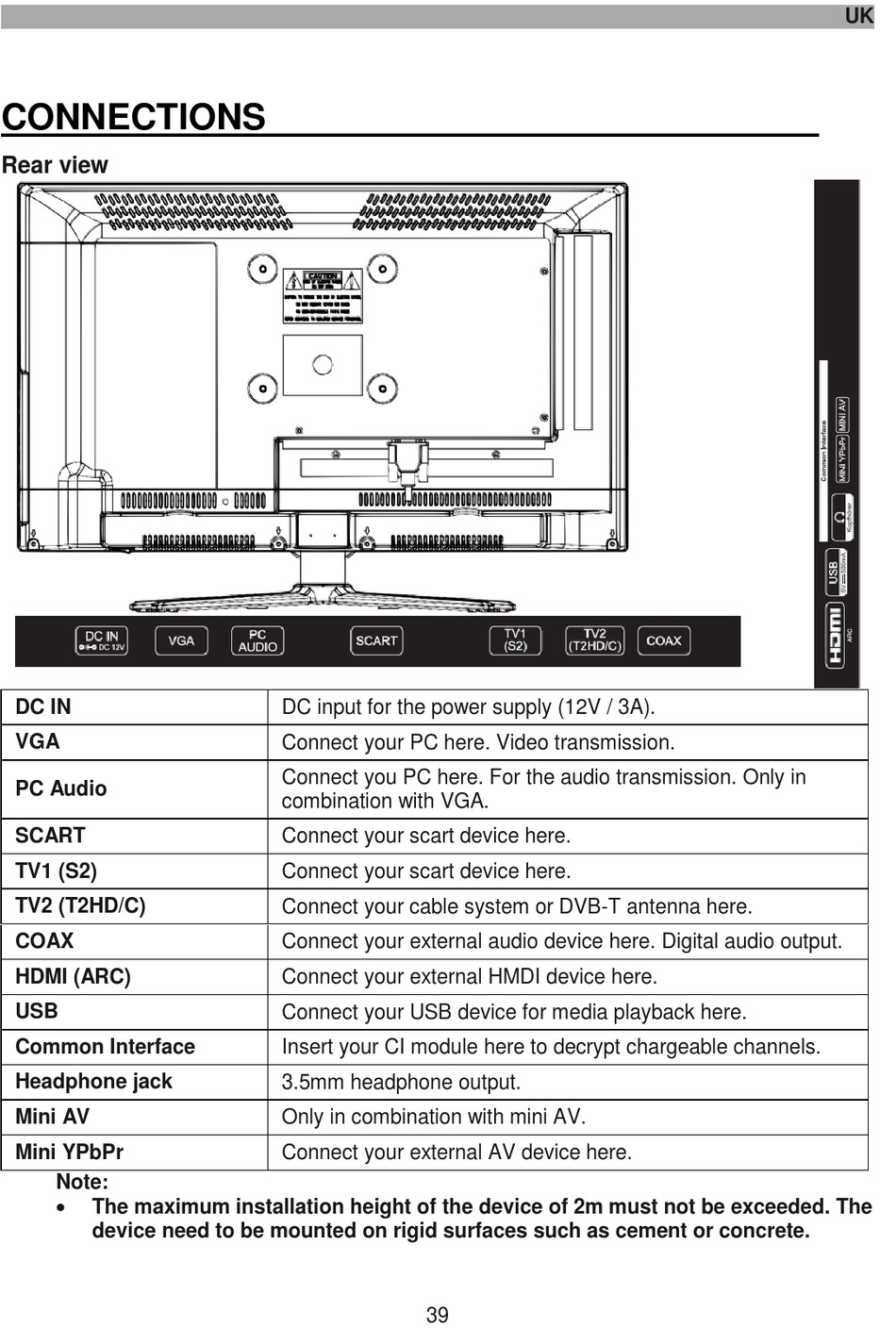

CONNECTIONS
Rear view
DC IN
VGA
PC Audio
SCART
TV1 (S2)
TV2 (T2HD/C)
COAX
HDMI (ARC)
USB
Common Interface
Headphone jack
Mini AV
Mini YPbPr
Note:

The maximum installation height of the device of 2m must not be exceeded. The
device need to be mounted on rigid surfaces such as cement or concrete.
DC input for the power supply (12V / 3A).
Connect your PC here. Video transmission.
Connect you PC here. For the audio transmission. Only in
combination with VGA.
Connect your scart device here.
Connect your scart device here.
Connect your cable system or DVB-T antenna here.
Connect your external audio device here. Digital audio output.
Connect your external HMDI device here.
Connect your USB device for media playback here.
Insert your CI module here to decrypt chargeable channels.
3.5mm headphone output.
Only in combination with mini AV.
Connect your external AV device here.
