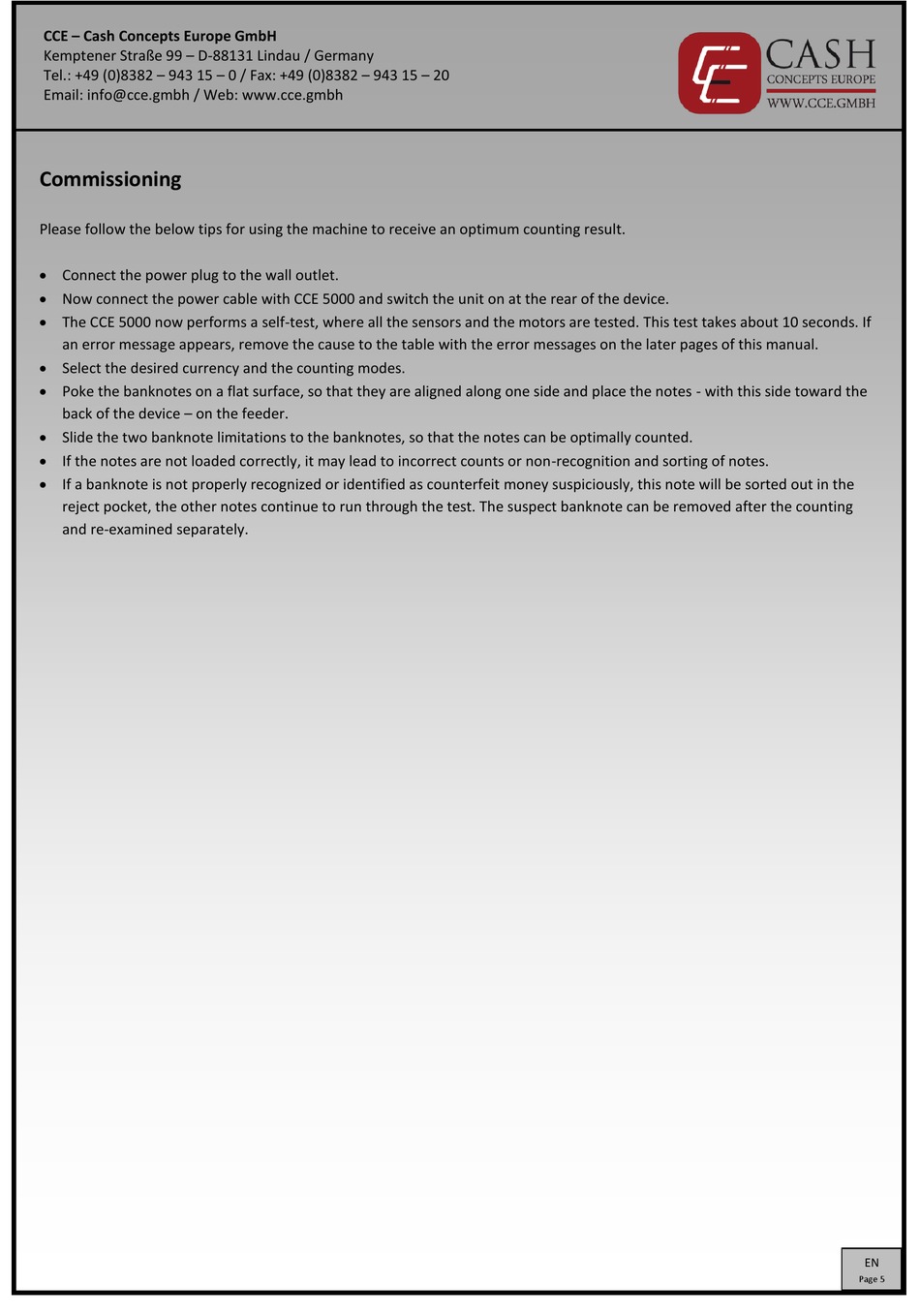

Commissioning
Please follow the below tips for using the machine to receive an optimum counting result.
 Connect the power plug to the wall outlet.
 Now connect the power cable with CCE 5000 and switch the unit on at the rear of the device.
 The CCE 5000 now performs a self-test, where all the sensors and the motors are tested. This test takes about 10 seconds. If
an error message appears, remove the cause to the table with the error messages on the later pages of this manual.
 Select the desired currency and the counting modes.
 Poke the banknotes on a flat surface, so that they are aligned along one side and place the notes - with this side toward the
back of the device – on the feeder.
 Slide the two banknote limitations to the banknotes, so that the notes can be optimally counted.
 If the notes are not loaded correctly, it may lead to incorrect counts or non-recognition and sorting of notes.
 If a banknote is not properly recognized or identified as counterfeit money suspiciously, this note will be sorted out in the
reject pocket, the other notes continue to run through the test. The suspect banknote can be removed after the counting
and re-examined separately.
