RTS2

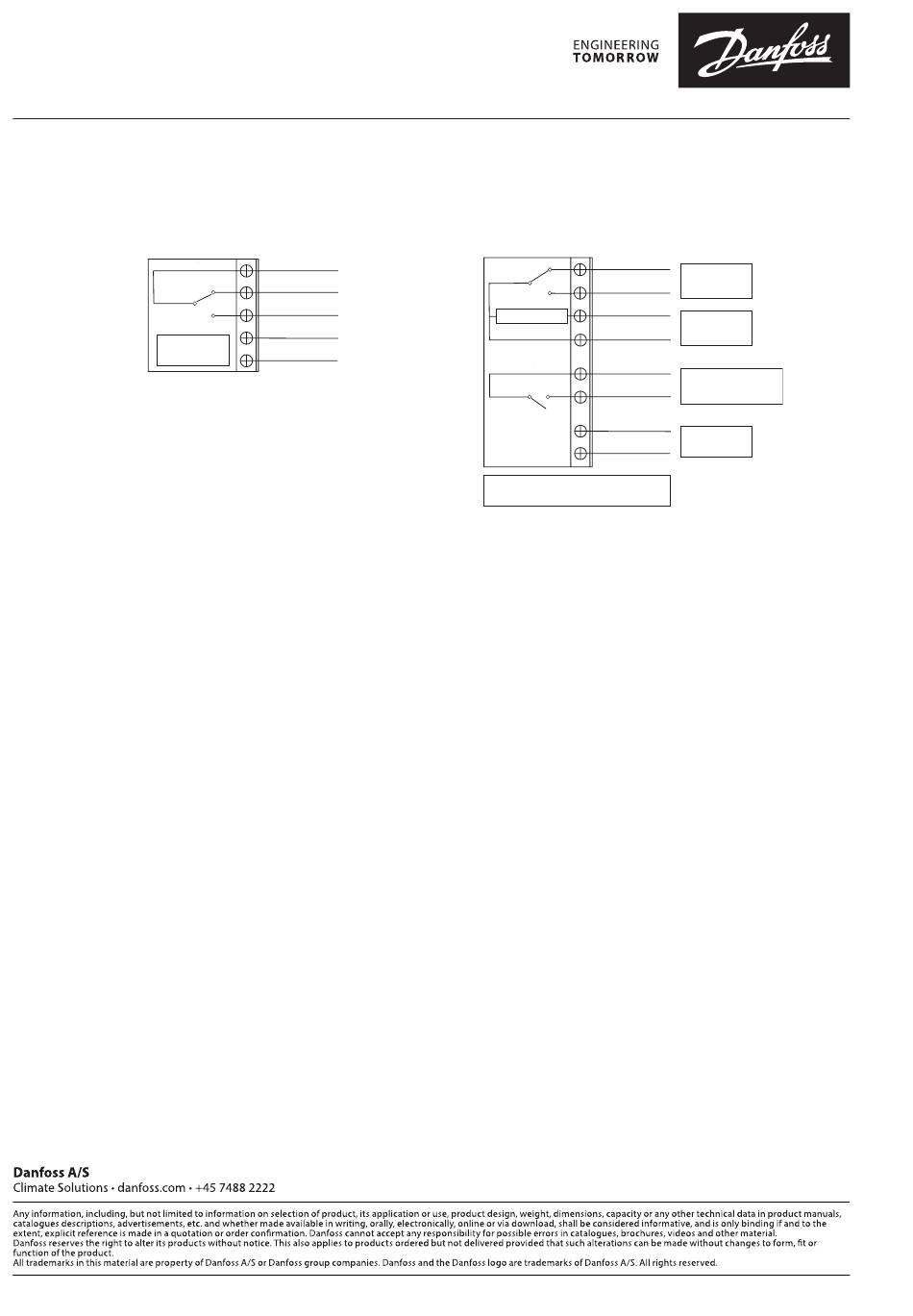

Verdrahtung
TPOne B
Remote
sensor
RTS2 muss an S1 und S2 angeschlossen werden
2 | © Danfoss Climate Solutions | 2023.06
COM
NC - OFF
NO - ON
S1
S2
TPOne M
NC2 - OFF
NO2 - ON
N
ELECTRONICS
L
COM
NO1- ON
S1
S2
Channel 1 is a volt free relay
A supply is required on COM to give an output on NO1
A supply link can be taked from L or another supply
Channel 2
*DHW
3A at 230Vac
Supply
230Vac
50/60Hz
Channel 1
Volt Free
COM requires supply
Remote
sensor
AI000086402676en-000101
