2.7.2 Adjusting the baffle plate for Venus green plus in sense of drought / Regulierung Klappe Venus

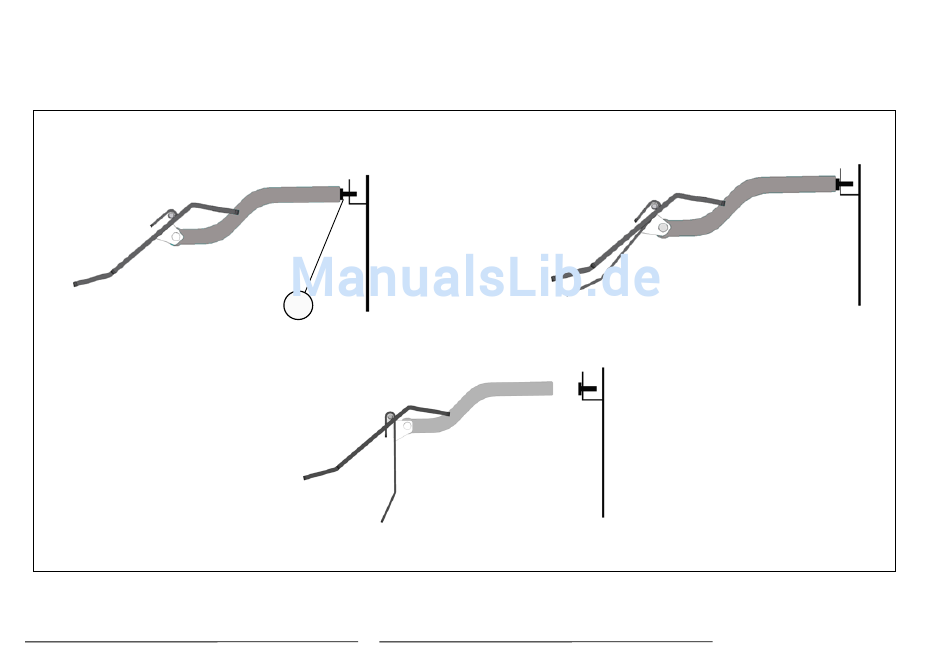

max closing of baffle plate with door closed
max geschlossen klappe mit tür geschlossen
INSTRUCTION FOR INSTALLATION AND USE - VENUS - WOOD
1
unscrew (1) to have max closing.
Screw to let baffle plate inclinated like fig.2
MONTAGE- UND BEDIENUNGSANLEITUNG - VENUS - HOLTZ
baffle plate inclinated wtih closed door to increase drought
Klappe ofen mit tür geschlossen
fig.2
Door open / Tür offen
12
